Casement Windows

CW-60 — Hinged casement · 90° lock · sash up to 1,200 × 1,800 mm

Questions on this system — sizes, glazing, lead time?

Ask on WhatsApp
Black-framed casement door and window in the showroom

CW-60

The workhorse of every specification — hinge-side airflow, gasket-side airtightness.

Hinged casement · 90° lock · sash up to 1,200 × 1,800 mm

Configurations
14
Glazing options
8
Lead time
30–40 days
Warranty
15 yr

Configurations

14

Glazing options

8

Lead time

30–40 days

Warranty

15 yr

Both documents are free — quoted against your project within 24 hours.

123

CW-60 frame section, thermal-break build. Photographed section, hardware and installation detail below.

What the section drawing decides

High-end custom is decided in the section drawing, not the brochure. These four layers are held to specification on every CW-60 unit we ship.

01

70 mm thermal-break section

Outward opening, so the section carries wind load against the leaf rather than a sliding mass. Sash up to 1,200 x 1,800 mm.

02

Multi-point with a meeting-stile gasket

Weather gasket sits at the meeting stile, which is the line a casement leaks through first.

03

6-24 mm single or IGU

The 24 mm allowance is for a laminated acoustic build; a standard IGU sits at the lower end of that range.

04

Class 4 air tightness to EN 1026

Tested to EN 14351-1. AAMA 2604 is available as an option for North American specifications.

Technical detail

The section, the hardware and the fixings — photographed, not rendered. This is the level of detail your drawing office specifies against and your site crew installs to, on every unit that leaves the line.

01

Profile cross-section

Seventy millimetre thermal-break section, outward opening, so the extrusion carries wind load against the leaf rather than a sliding mass. Sash runs to 1,200 × 1,800 mm.

Frame

70 mm thermal-break

Sash

Up to 1,200 × 1,800 mm

Opening

Outward, hinged

Glazing

6–24 mm single or IGU

Cut aluminium profile sections held in a gloved hand beside a PA66 GF25 thermal break sample
Profile sections cut open: the thermal break, the chambers and the glazed edge read as three separate things.
Thermal break bar visible in the window frame cross section
The continuous PA66 break bar isolates the outer and inner aluminium.
Multi-chamber aluminium profile cross section with the insulation bar cut through
Chambers in the profile cross section — stiffness and drainage run through the cavity layout, not the wall thickness alone.
Thermally broken aluminium profile with the polyamide bridge
The polyamide bridge breaks the conductive path that would otherwise run across the frame.
Profile cross sections and a glazed edge on the showroom display rack
Sections on the same platform, sized for the leaf load and the threshold.
Thermal break bar detail on the extrusion line
Thermal break bar, second detail — continuous PA66 from the extrusion line.
02

Hardware

Multi-point locking with a weather gasket at the meeting stile — the line a casement leaks through first, and the one the schedule names explicitly.

Locking

Multi-point

Gasket

At the meeting stile

Air

Class 4 to EN 1026

Check

Cycled per sash

Multi-point locking bolt points on a door leaf edge
Multi-point locking — the handle drives bolt points top, bottom and on the meeting stile, not one edge.
Window handle with base plate and strike set and fixing screws
Handle, base plate and strike set — the full set, fitted and cycled before dispatch.
Dark lever handle on a white door leaf
Key-operated handle for ground-floor and security specifications.
Metal lever handle catching the light on a timber door
Metal finish for clean, high-traffic interior positions.
Steel entrance door with a multi-point lock and keypad
Strike and fixings match the handle set; nothing is improvised on site.
Handle sets laid out for the fitting line
Every handle set is matched to the sash before the unit is built.
Gloved hands fitting a corner bracket and hardware into an aluminium profile
Fitted on the line, not on site — the corner bracket and its fasteners go in as one operation.
Corner bracket and hardware components held in a gloved hand
The corner bracket is what ties the joint together; it is cut and drilled to match the profile it drives.
03

Installation

Factory-assembled and pre-glazed, so the tolerance work is done under a roof. On site the build is a three-zone detail — air, insulation, weatherproofing — and every crate arrives with the install guide and the sealant schedule for that market.

Arrives

Factory-assembled

Detail

3-zone: air / insulation / water

Guide

Per-crate install sheet

Sealant

Scheduled per market

Ivy-clad elevation with the window openings left in view
The opening condition on a real elevation — each layer does one job and the details are not mixed.
Gasket line being run into the sash profile
Every glazed unit is sealed along the gasket line before it leaves the shop.
Extruded gasket stock racked in the factory store
Gasket is stocked as a schedule, not a habit — the compound and the section are named per market.
The same gasket run seen across the line
Pre-treatment and powder coat — every profile runs the surface line before assembly.
Machinist cutting a component on the workshop line
The workshop line — components cut, machined and checked at the quality gate, before crating.
Die casting press forming the hardware components
Hardware is cast in-house, so the cam and gear match the profile it drives.

The system in short

A casement window is a hinged window whose sash swings open on the side — outward or inward — and seals with multi-point locking across a full-perimeter gasket. CW-60 carries that classic action on a 70 mm thermal-break platform, Class 4 airtight, with sashes up to 1,200 × 1,800 mm, the standard specification for ground floors and mixed façades.

Single and double casements on the same thermal-break platform as the tilt-turn range, so mixed façades keep one visual rhythm. The sash swings on concealed hinges and seals with multi-point locking across a full-perimeter gasket — Class 4 airtight on every unit we ship.

Configured on the same platform as the tilt-turn range, the CW-60 keeps one visual rhythm across mixed façades: the fixed, the hinged and the opening leaf all read as one line. Quoted unit by unit, with the key-operated ground-floor schedule as standard.

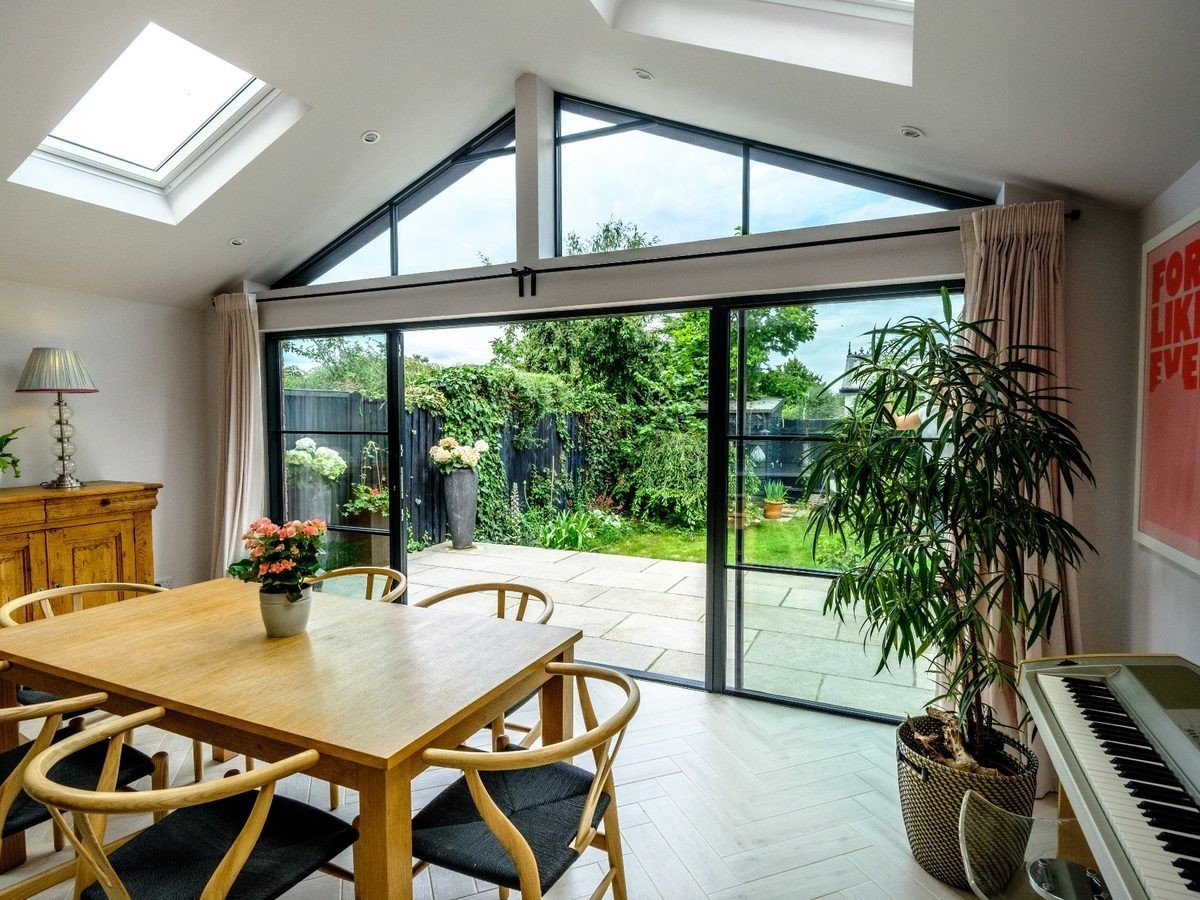

CW-60 installed view
CW-60 — Casement Windows

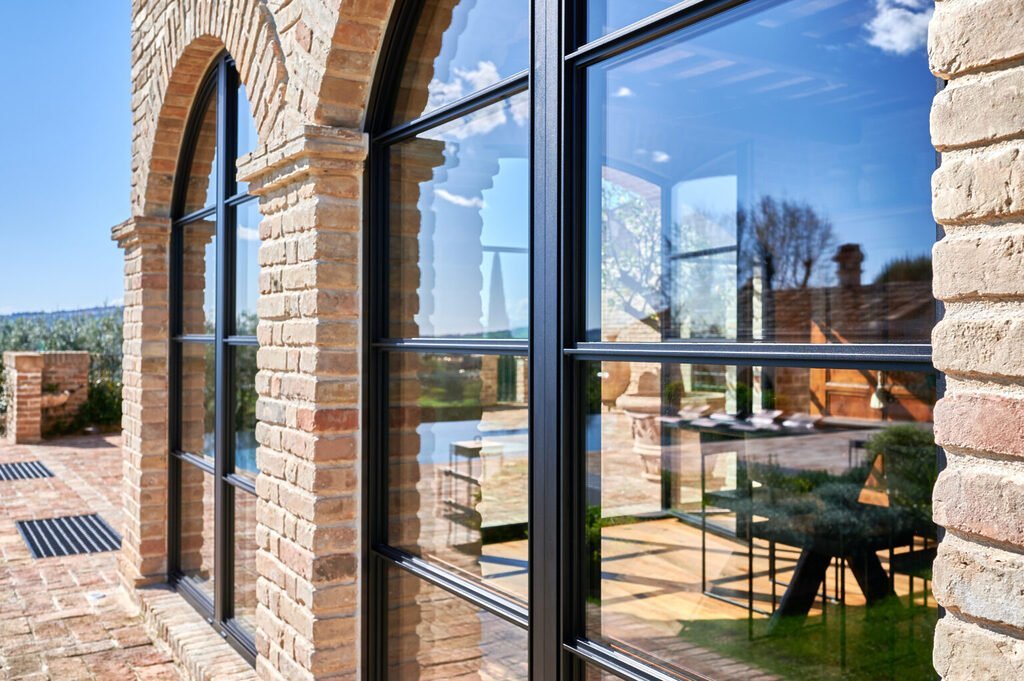

CW-60 detail
CW-60 — detail

Models and sizes

Every CW-60 ships as one of the configurations below — specify by model code in your window schedule and it quotes line by line.

CW-60 SINGLE

  • Single sash to 1,200 × 1,800 mm
  • 6–24 mm single or IGU

CW-60 2-OPEN

  • Twin sash, both hinged
  • Double IGU

CW-60 FIX+OPEN

  • Fixed centre, hinged leaves
  • Double IGU, low-E

CW-60 KEY

  • Key-operated ground-floor sash
  • Double IGU

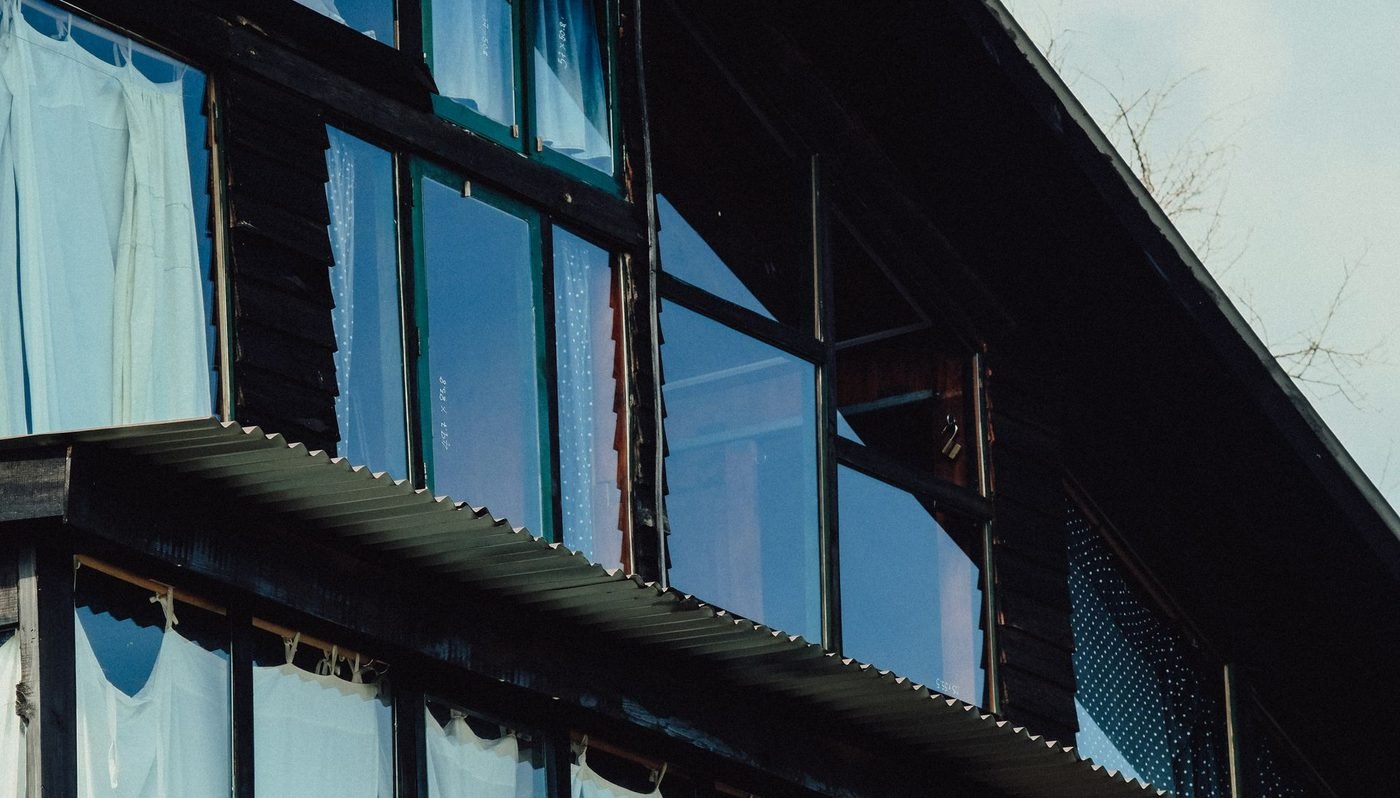

CW-60 configurations in place
CW-60 — configurations in place

Specifications

Profile system
70 mm thermal-break aluminium
Sash size
Up to 1,200 × 1,800 mm
Air tightness
Class 4 (EN 1026) gasketed
Glazing
6–24 mm single or IGU
Hardware
Multi-point, weather gasket at meeting stile
Standards
Tested to EN 14351-1; AAMA 2604 option
CW-60 profile and glazing detail
CW-60 — profile and glazing detail

Material & craft

The layers held to specification on every CW-60 unit — the section drawing above, written out.

Hinge-side airflow

Hinge-side airflow

The sash swings open on the hinge side and seals on the gasket side — the weather gasket at the meeting stile holds the Class 4 rating.

Platform

Platform

The 70 mm thermal-break platform shared with the tilt-turn range, so a mixed façade reads as one rhythm.

Ground-floor schedule

Ground-floor schedule

Key-operated handle as standard on ground positions; three-casement bays to 4,500 mm opening on the same frame line.

What it's worth to you

Casement Windows installed on a residential elevation

Sashes up to 1,200 × 1,800 mm map to standard masonry openings — the renovation case that quotes line by line.

Class 4 airtightness (EN 1026) with the full-perimeter gasket as standard, not an option box.

One platform with the tilt-turn: fixed, hinged and turning sashes on the same elevation share one shop-drawing package.

Specify Casement Windows

Send the project location, the opening sizes and the finish. Drawings, window schedules or a specification can be attached — quoting is done against the drawings, not a price list.

Request a quotation

Fields marked * are required. Drawings, CAD or a window schedule can be attached — up to 5 MB.

Products of interest
Casement Windows
Attach drawing / schedule (dwg, pdf, xls — max 5 MB)

Guaranteed response within 24 hours, every inquiry. No price lists are shared outside the quotation.

Where it is specified

The sites we build this system for, and what the schedule changes in each one.

Ground-floor residential

Key-operated handle and the full gasket line as standard.

Mixed façades with tilt-turn

One visual rhythm — the same 70 mm platform.

Compact urban infill

The sash opens outward into the party-wall air gap.

Boutique hotels

Hinge-side opening keeps the room wall clear of the sill.

Renovation replacements

Standard opening sizes map to the existing masonry.

Options and finishes

Sash size
Up to 1,200 × 1,800 mm
Air tightness
Class 4 (EN 1026) gasketed
Glazing
6–24 mm single or IGU
Hardware
Multi-point, weather gasket at meeting stile

Finish

Anodised Natural

Anodised Silver

Anthracite · RAL 7016

Graphite · RAL 7024

Jet Black · RAL 9005

Traffic White · RAL 9016

Cream · RAL 1015

Champagne · RAL 1019

Ash Natural

Walnut Dark

Bronze

Copper

View all finishes

Design features

Hinge-side airflow, gasket-side airtightness

Multi-point locking, weather gasket at meeting stile

Class 4 airtightness (EN 1026)

Same platform as the tilt-turn range

Key-operated handle for ground floor

Three-casement bays to 4,500 mm opening

Glass build

Two choices set what the glass does in a CW-60: which coating is on it, and what fills the cavity. The coating sets the solar figure. The gas moves the U-value and leaves the solar figure where it was — which is why the two are decided separately. The values below are published by the glass manufacturers for the build named; they are centre-of-glass figures, and the whole-window value for a configuration is read from the report that covers it.

BuildSHGCU, centre of glassWhere it is chosen
LoE-180, argon0.690.26High solar gain, cold climate
LoE-272, argon0.410.25Balanced, the usual default
LoE-366, argon0.270.24Solar control, west and south glass
LoE-366 with LoE-i89 on #4, argon0.270.20Solar control with the lowest U-value

NFRC centre-of-glass values for a 3/4 in two-pane unit with 3 mm lites and a 13 mm argon cavity. The spacer is the third lever and behaves differently again: it works at the edge of the unit, so it shows in the whole-window value rather than here.

Full glass performance tables, including air against argon and EN 673 values →

Buying & delivery

The commercial terms behind the CW-60 — minimum order, quotation, payment, packing and warranty — are the same on every quotation and sit on the commercial terms for repeated bays. Buying to resell, or to fabricate the line yourself? supplier terms for repeated bays covers the supplier view of the same schedule.

Request a quote for this system
Lead time
30–40 days from approved shop drawings. Assembly, glazing and quality control sit inside the quoted lead time, not on top of it.
Standards on this system
Tested to EN 14351-1, with an AAMA 2604 finish option for US schedules. The assembly answers SANS 613 for wind, water and air; where a casement sits below the safety line, the glazing is safety material to SANS 10400-N:2012 and carries the installer mark.Source documents: EN 14351-1·AAMA 2604 / 2605·SANS 613·SANS 10400-N
Documents and crating
Hardware and glass schedules ship in the shop drawing package, free, within three working days of approved architectural drawings. Crated corner-protected with desiccant; a loading report per bay and a packing list per crate. Test reports are issued on request.

Documentation

Data sheet

System specifications, model codes and glazing schedule, as a PDF.

Brochure

Full-range presentation for tender packs and client meetings.

CAD sections & BIM families

Section blocks and families for inclusion in project documentation.

Ask for it

Specification clauses

Draft specification text for the drawing package, per system.

Ask for it

RFQ template

The inquiry sheet our quote team needs to answer within 24 hours.

Open the downloads

Confirm before the order is placed

Six items hold up an order on the CW-60 more often than anything else. None of them is decided here; each one has to be settled on the project side before the drawing set is frozen.

Rough opening, not frame size

Confirm the structural opening and the reveal build-up. The frame is ordered to the approved drawing, and the drawing is what the quotation is built from.

The opening is quoted before the render and the closing detail, then the reveal takes back the clearance.

Glass build

Confirm pane thickness, coating, spacer and cavity gas as one line. The tested configuration is the one the report covers.

Glass specified by thickness alone. The coating, spacer and gas move the U-value and the SHGC independently.

Operation and handing

Confirm the opening direction, the handing and the number of leaves, and say which side the handing is read from.

Handing recorded from the inside on one schedule and the outside on another.

Finish

Confirm the RAL or anodising grade, and whether the address needs a marine-grade schedule.

The finish is picked from a screen, and the coastal requirement is raised after production has started.

Hardware

Confirm handle type, locking point count, and whether the market requires key-operated locking.

Hardware assumed standard; the site then needs keyed-alike cylinders that were never on the order.

Documents with the shipment

Confirm which reports and declarations travel with the crate. A certificate is issued per configuration, not per product family.

Test documentation requested after shipment, when the report for that configuration has to be re-issued.

Screens and insect load

Confirm whether screens are part of the order. In the insect-load markets the screen is what lets the window stay open after dark.

Screens treated as an accessory and quoted separately, then the mesh does not match the frame finish.

Who confirms each part

No single party holds the whole decision. The drawing set is the one place they meet.

Buyer or developer

Opens the order: the standard the project has to meet, and the market it ships to.

Designer or architect

Sets the configuration: sizes, operation, finish and the glass build.

Structural engineer

Where the market requires it, sets the wind load the opening is rated to.

Factory

Confirms what can be built to that drawing, and issues the report for the configuration.

Everything else on the commercial side — minimum order, quotation, payment, packing and warranty — is the same on every order and sits on the commercial terms page.

Compare with the other window systems

Every system in this category on one table — the platform it shares, the opening it carries and the glazing it takes. Figures come from each system record, not retyped here.

11 window systems in the catalogue
CodeSystemPlatformGlazing options
PF-35Panoramic Fixed GlazingLaminated or low-E IGU
TT-75Tilt & Turn Windows6–24 mm single / IGU
IR-80Impact-Rated WindowsLaminated IGU, 0.38 SGP
WA-70Wood-Aluminium Windows47 dB laminated IGU
CW-60Casement Windows — this system6–24 mm single or IGU
AC-90Acoustic Windows47 dB laminated IGU
SM-60Smart Motorized Windows6–24 mm single or IGU
SW-110Six-Track Sliding Windows5+12A+5 IGU
AW-55Crank Awning WindowsTempered single pane
BP-60Burglar-Proof WindowsSingle or IGU, laminated line per SANS 1263-1
LW-70Louvre WindowsTempered single in the fixed panels

Frequently asked

Either. Casement with a key-operated handle is the classic ground-floor security choice; tilt-turn adds the micro-vent.

Other systems on the same platform

All systems

Specify CW-60 for your project

Request a quote

The Hinged casement configuration is quoted unit by unit, within 24 hours.

Prefer to talk it through?

Send a drawing or a one-line brief on WhatsApp.

+86 177 0868 3991 — quotation within 24 hours, shop drawings free in 3 working days.
