French Doors

FD-60 — Double-leaf hinged · full-glass sash · multi-point lock

Questions on this system — sizes, glazing, lead time?

Ask on WhatsApp
Tall French door in a lit corridor

FD-60

The classic double leaf, re-cut in slim aluminium.

Double-leaf hinged · full-glass sash · multi-point lock

Configurations
10
Glazing options
8
Lead time
30–40 days
Warranty
15 yr

Configurations

10

Glazing options

8

Lead time

30–40 days

Warranty

15 yr

Both documents are free — quoted against your project within 24 hours.

123

FD-60 frame section, thermal-break build. Photographed section, hardware and installation detail below.

What the section drawing decides

High-end custom is decided in the section drawing, not the brochure. These four layers are held to specification on every FD-60 unit we ship.

01

Two leaves, up to 1,000 x 2,400 mm

Each leaf is quoted separately, so the pair can be asymmetric on a wide opening.

02

Surface hinge rated 120 kg per leaf

The hinge is concealed on the face side. The central multi-point locks 6 points across the meeting stile.

03

8-19 mm tempered, laminated or IGU

Threshold is low-profile or flush; the choice is the reveal condition, not the leaf.

04

Tested to EN 14351-1

AAMA 2605 is the powder finish specification, offered as an option for US schedules. It governs the coating, not the door rating.

Technical detail

The section, the hardware and the fixings — photographed, not rendered. This is the level of detail your drawing office specifies against and your site crew installs to, on every unit that leaves the line.

01

Profile cross-section

Two leaves, each quoted separately, so the pair can be asymmetric on a wide opening. A leaf runs to 1,000 × 2,400 mm.

Leaves

2, each to 1,000 × 2,400 mm

Pair

Quoted separately, can be asymmetric

Glazing

8–19 mm tempered, laminated or IGU

Threshold

Low-profile or flush

Cut aluminium profile sections held in a gloved hand beside a PA66 GF25 thermal break sample
Profile sections cut open: the thermal break, the chambers and the glazed edge read as three separate things.
Thermal break bar visible in the window frame cross section
The continuous PA66 break bar isolates the outer and inner aluminium.
Multi-chamber aluminium profile cross section with the insulation bar cut through
Chambers in the profile cross section — stiffness and drainage run through the cavity layout, not the wall thickness alone.
Thermally broken aluminium profile with the polyamide bridge
The polyamide bridge breaks the conductive path that would otherwise run across the frame.
Profile cross sections and a glazed edge on the showroom display rack
Sections on the same platform, sized for the leaf load and the threshold.
Thermal break bar detail on the extrusion line
Thermal break bar, second detail — continuous PA66 from the extrusion line.
02

Hardware

Concealed surface hinge rated 120 kg per leaf, with the central multi-point locking 6 points across the meeting stile.

Hinges

Concealed surface, 120 kg per leaf

Locking

Central multi-point, 6 points

Stile

Meeting stile carries the lock

Check

Cycled as a pair

Multi-point locking bolt points on a door leaf edge
Multi-point locking — the handle drives bolt points top, bottom and on the meeting stile, not one edge.
Window handle with base plate and strike set and fixing screws
Handle, base plate and strike set — the full set, fitted and cycled before dispatch.
Dark lever handle on a white door leaf
Key-operated handle for ground-floor and security specifications.
Metal lever handle catching the light on a timber door
Metal finish for clean, high-traffic interior positions.
Steel entrance door with a multi-point lock and keypad
Strike and fixings match the handle set; nothing is improvised on site.
Handle sets laid out for the fitting line
Every handle set is matched to the sash before the unit is built.
Gloved hands fitting a corner bracket and hardware into an aluminium profile
Fitted on the line, not on site — the corner bracket and its fasteners go in as one operation.
Corner bracket and hardware components held in a gloved hand
The corner bracket is what ties the joint together; it is cut and drilled to match the profile it drives.
03

Installation

Factory-assembled and pre-glazed, so the tolerance work is done under a roof. On site the build is a three-zone detail — air, insulation, weatherproofing — and every crate arrives with the install guide and the sealant schedule for that market.

Arrives

Factory-assembled

Detail

3-zone: air / insulation / water

Guide

Per-crate install sheet

Sealant

Scheduled per market

Ivy-clad elevation with the window openings left in view
The opening condition on a real elevation — each layer does one job and the details are not mixed.
Gasket line being run into the sash profile
Every glazed unit is sealed along the gasket line before it leaves the shop.
Extruded gasket stock racked in the factory store
Gasket is stocked as a schedule, not a habit — the compound and the section are named per market.
The same gasket run seen across the line
Pre-treatment and powder coat — every profile runs the surface line before assembly.
Machinist cutting a component on the workshop line
The workshop line — components cut, machined and checked at the quality gate, before crating.
Die casting press forming the hardware components
Hardware is cast in-house, so the cam and gear match the profile it drives.

The system in short

French doors are a pair of hinged, full-glass leaves opening to a terrace, garden or entry foyer. FD-60 cuts them in slim thermal-break aluminium — each leaf up to 1,000 × 2,400 mm on concealed hinges rated 120 kg — with a central 6-point lock, low-profile or flush threshold, and tempered or laminated glass per position.

Two full-glass hinged leaves with a concealed hinge line and central multi-point lock — the entrance and garden-door standard for residential projects across all five markets. Each leaf runs to 1,000 × 2,400 mm on concealed surface hinges rated 120 kg.

Leaves are tempered monolithic for interior use, laminated or IGU where the door faces the street or the code asks for it. The concealed hinge line keeps the elevation clean, and the central lock engages at six points across the meeting stile.

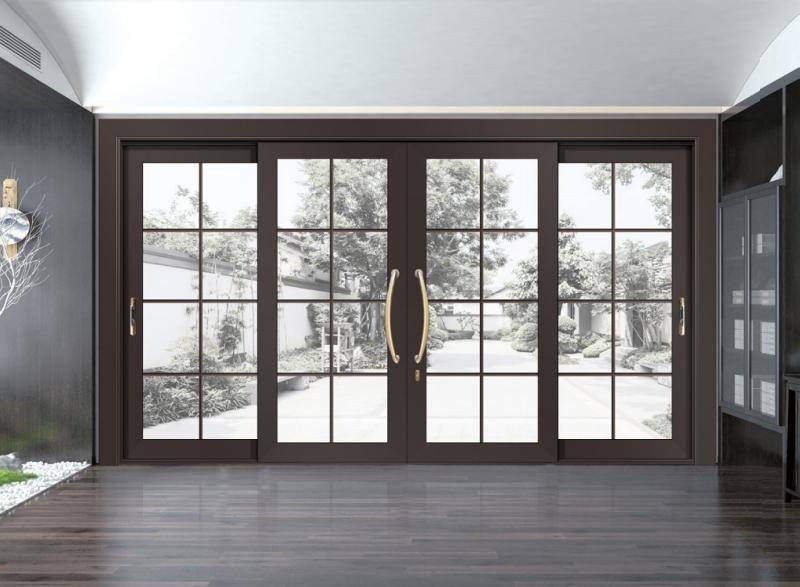

FD-60 installed view
FD-60 — French Doors

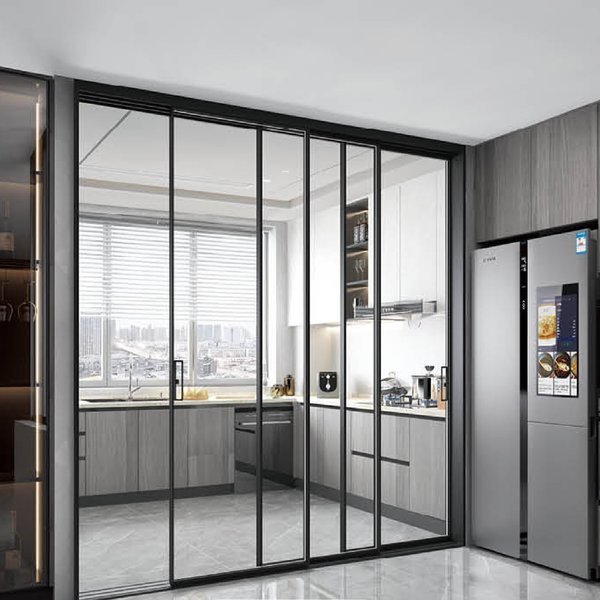

FD-60 detail
FD-60 — detail

Models and sizes

Every FD-60 ships as one of the configurations below — specify by model code in your window schedule and it quotes line by line.

FD-60 PAIR

  • Two active leaves
  • 8–19 mm tempered or IGU

FD-60 FIX+OPEN

  • One fixed, one active
  • Double IGU

FD-60 ENTRY

  • Entrance spec, key deadbolt
  • Laminated glass

FD-60 IMPACT

  • Impact-rated leaf pair
  • Laminated IGU

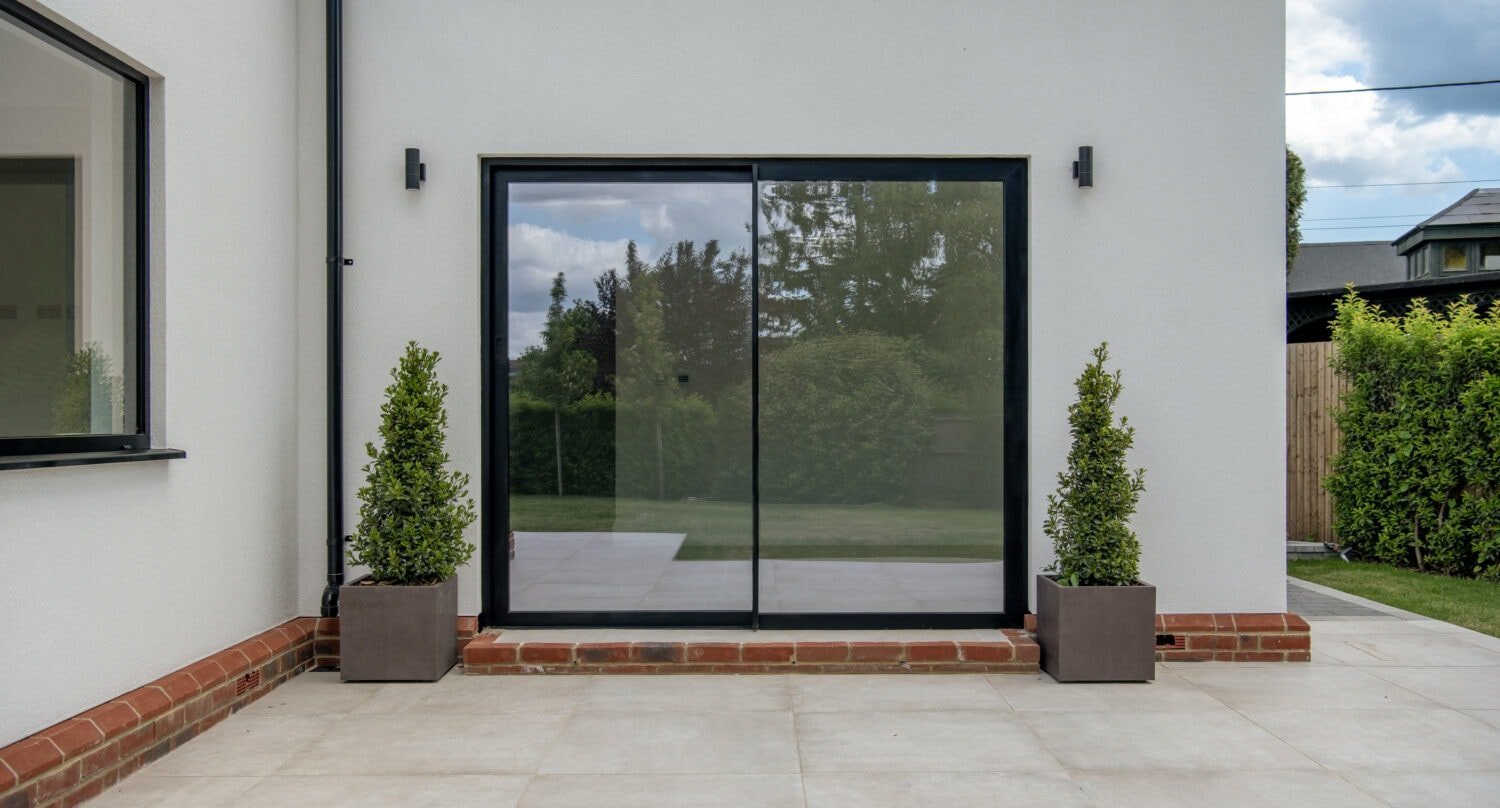

FD-60 configurations in place
FD-60 — configurations in place

Specifications

Leaves
2, each up to 1,000 × 2,400 mm
Glazing
8–19 mm tempered, laminated, or IGU
Hinges
Concealed surface hinge, rated 120 kg per leaf
Locking
Central multi-point, 6 points
Threshold
Low-profile or flush
Standards
Tested to EN 14351-1; AAMA 2605 finish option
FD-60 profile and glazing detail
FD-60 — profile and glazing detail

Material & craft

The layers held to specification on every FD-60 unit — the section drawing above, written out.

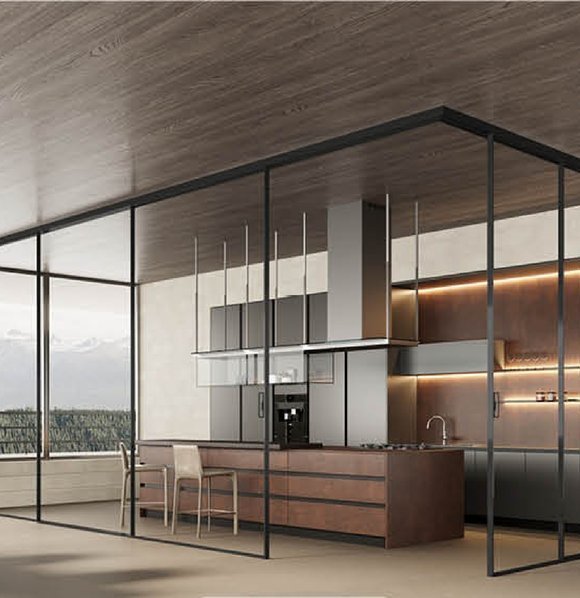

Leaves

Leaves

Two full-glass leaves, each up to 1,000 × 2,400 mm, on concealed surface hinges rated 120 kg — tempered or laminated per position.

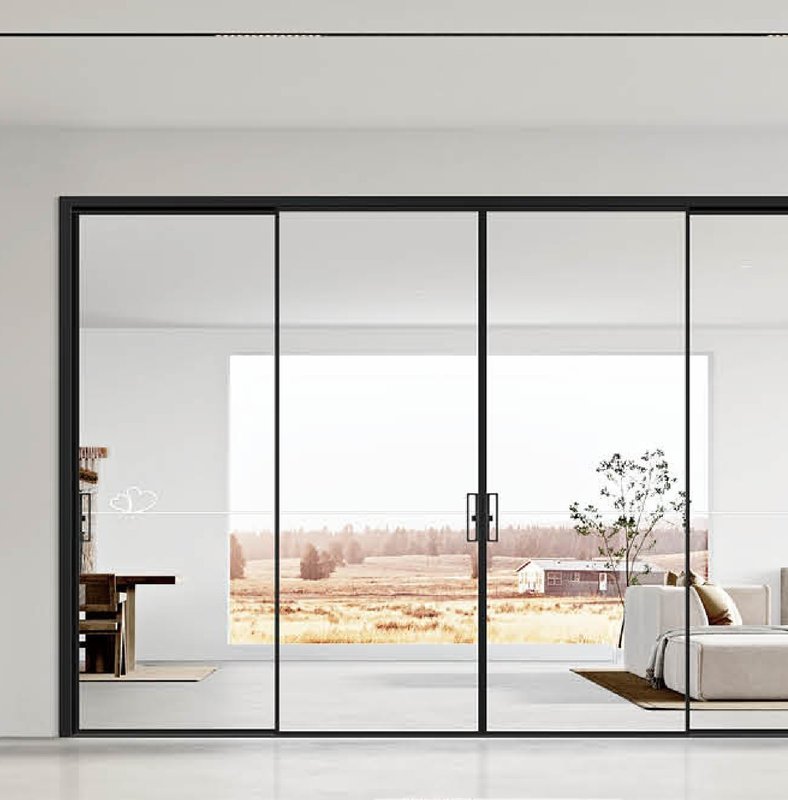

Locking

Locking

A central 6-point multi-point lock across both leaves; the FD-60 ENTRY adds the key deadbolt for street-facing doors.

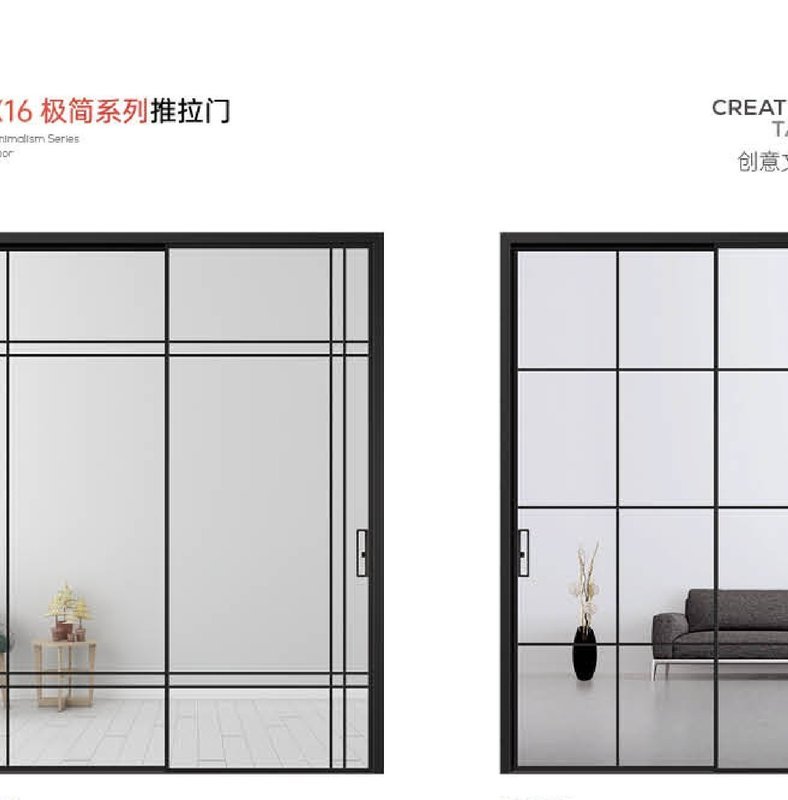

Threshold

Threshold

Low-profile or flush, with the 1-fixed + 1-active option taking the wider opening on the same frame.

What it's worth to you

French Doors installed on a residential elevation

The garden in the room, not behind the door — full glass on a slim thermal-break frame.

Interior, entrance and impact variants on one leaf family: tempered monolithic inside, laminated for the coastal code.

A 15-year warranty on the frame and the concealed hinge line, quoted unit by unit within 24 hours.

Specify French Doors

Send the project location, the opening sizes and the finish. Drawings, window schedules or a specification can be attached — quoting is done against the drawings, not a price list.

Request a quotation

Fields marked * are required. Drawings, CAD or a window schedule can be attached — up to 5 MB.

Products of interest
French Doors
Attach drawing / schedule (dwg, pdf, xls — max 5 MB)

Guaranteed response within 24 hours, every inquiry. No price lists are shared outside the quotation.

Where it is specified

The sites we build this system for, and what the schedule changes in each one.

Garden and patio access

Full-glass leaves put the garden in the room, not behind the door.

Entry foyers

The key deadbolt adds to the multi-point schedule for street-facing doors.

Interior room dividers

The same leaves, tempered monolithic, split dining from lounge.

Boutique hotel entries

Double leaf with the concealed hinge line the architect wants.

Impact zones

The laminated-leaf variant joins the IR-80 family for coastal codes.

Options and finishes

Leaves
2, each up to 1,000 × 2,400 mm
Glazing
8–19 mm tempered, laminated, or IGU
Hinges
Concealed surface hinge, rated 120 kg per leaf
Locking
Central multi-point, 6 points
Threshold
Low-profile or flush

Finish

Anodised Natural

Anodised Silver

Anthracite · RAL 7016

Graphite · RAL 7024

Jet Black · RAL 9005

Traffic White · RAL 9016

Cream · RAL 1015

Champagne · RAL 1019

Ash Natural

Walnut Dark

Bronze

Copper

View all finishes

Design features

Two full-glass leaves, each to 1,000 × 2,400 mm

Concealed surface hinges rated 120 kg

Central multi-point lock, 6 points

Low-profile or flush threshold

1-fixed + 1-active option for wider openings

Key deadbolt for entrance specifications

Glass build

Two choices set what the glass does in a FD-60: which coating is on it, and what fills the cavity. The coating sets the solar figure. The gas moves the U-value and leaves the solar figure where it was — which is why the two are decided separately. The values below are published by the glass manufacturers for the build named; they are centre-of-glass figures, and the whole-window value for a configuration is read from the report that covers it.

BuildSHGCU, centre of glassWhere it is chosen
LoE-180, argon0.690.26High solar gain, cold climate
LoE-272, argon0.410.25Balanced, the usual default
LoE-366, argon0.270.24Solar control, west and south glass
LoE-366 with LoE-i89 on #4, argon0.270.20Solar control with the lowest U-value

NFRC centre-of-glass values for a 3/4 in two-pane unit with 3 mm lites and a 13 mm argon cavity. The spacer is the third lever and behaves differently again: it works at the edge of the unit, so it shows in the whole-window value rather than here.

Full glass performance tables, including air against argon and EN 673 values →

Buying & delivery

The commercial terms behind the FD-60 — minimum order, quotation, payment, packing and warranty — are the same on every quotation and sit on the commercial terms for a paired door order. Buying to resell, or to fabricate the line yourself? terms for a paired door order covers the supplier view of the same schedule.

Request a quote for this system
Lead time
30–40 days from approved shop drawings. Assembly, glazing and quality control sit inside the quoted lead time, not on top of it.
Standards on this system
Tested to EN 14351-1, with an AAMA 2605 finish option for US schedules. Glazing in the door leaf is safety material to SANS 10400-N:2012 and SANS 1263-1, the human-impact line, and the entrance variant is scheduled to SANS 1263-2 where the brief reads intrusion. The assembly answers SANS 613.Source documents: EN 14351-1·AAMA 2604 / 2605·SANS 10400-N·SANS 1263-1·SANS 1263-2·SANS 613
Documents and crating
Hardware and glass schedules ship in the shop drawing package, free, within three working days of approved architectural drawings. Crated corner-protected with desiccant; a loading report per bay and a packing list per crate. Test reports are issued on request.

Documentation

Data sheet

System specifications, model codes and glazing schedule, as a PDF.

Brochure

Full-range presentation for tender packs and client meetings.

CAD sections & BIM families

Section blocks and families for inclusion in project documentation.

Ask for it

Specification clauses

Draft specification text for the drawing package, per system.

Ask for it

RFQ template

The inquiry sheet our quote team needs to answer within 24 hours.

Open the downloads

Confirm before the order is placed

Six items hold up an order on the FD-60 more often than anything else. None of them is decided here; each one has to be settled on the project side before the drawing set is frozen.

Rough opening, not frame size

Confirm the structural opening and the reveal build-up. The frame is ordered to the approved drawing, and the drawing is what the quotation is built from.

The opening is quoted before the render and the closing detail, then the reveal takes back the clearance.

Glass build

Confirm pane thickness, coating, spacer and cavity gas as one line. The tested configuration is the one the report covers.

Glass specified by thickness alone. The coating, spacer and gas move the U-value and the SHGC independently.

Operation and handing

Confirm the opening direction, the handing and the number of leaves, and say which side the handing is read from.

Handing recorded from the inside on one schedule and the outside on another.

Finish

Confirm the RAL or anodising grade, and whether the address needs a marine-grade schedule.

The finish is picked from a screen, and the coastal requirement is raised after production has started.

Hardware

Confirm handle type, locking point count, and whether the market requires key-operated locking.

Hardware assumed standard; the site then needs keyed-alike cylinders that were never on the order.

Documents with the shipment

Confirm which reports and declarations travel with the crate. A certificate is issued per configuration, not per product family.

Test documentation requested after shipment, when the report for that configuration has to be re-issued.

Threshold and floor build-up

Confirm the finished floor level and whether a flush, barrier-free threshold is required.

The threshold is decided on site, after the frame has been extruded to a standard sill.

Who confirms each part

No single party holds the whole decision. The drawing set is the one place they meet.

Buyer or developer

Opens the order: the standard the project has to meet, and the market it ships to.

Designer or architect

Sets the configuration: sizes, operation, finish and the glass build.

Structural engineer

Where the market requires it, sets the wind load the opening is rated to.

Factory

Confirms what can be built to that drawing, and issues the report for the configuration.

Everything else on the commercial side — minimum order, quotation, payment, packing and warranty — is the same on every order and sits on the commercial terms page.

Compare with the other door systems

Every system in this category on one table — the platform it shares, the opening it carries and the glazing it takes. Figures come from each system record, not retyped here.

7 door systems in the catalogue
CodeSystemPlatformGlazing options
LS-60Lift & Slide Doors10–16 mm tempered or laminated
BF-40Bi-Fold Doors8–16 mm tempered
SD-50Sliding Patio Doors8–20 mm tempered or IGU
FD-60French Doors — this system8–19 mm tempered or IGU
PV-75Pivot Doors19–25 mm laminated or IGU
SC-40Screen DoorsNo glazing — mesh screen door
ED-90Entry DoorsNo glazing — laminated core leaf

Frequently asked

Yes — a 1-fixed + 1-active configuration halves the moving mass for wider openings.

Other systems on the same platform

All systems
Four-panel bi-fold door folded open in the Foshan showroom

BF-40

Bi-Fold Doors

8-panel bi-fold · 75/90 mm profile · full glass

Pivot door units ranged along the showroom wall

PV-75

Pivot Doors

Oversized entrance pivot · up to 2,100 × 3,000 mm

Specify FD-60 for your project

Request a quote

The Double-leaf hinged configuration is quoted unit by unit, within 24 hours.

Prefer to talk it through?

Send a drawing or a one-line brief on WhatsApp.

+86 177 0868 3991 — quotation within 24 hours, shop drawings free in 3 working days.
