Bi-Fold Doors

BF-40 — 8-panel bi-fold · 75/90 mm profile · full glass

Questions on this system — sizes, glazing, lead time?

Ask on WhatsApp
Four-panel bi-fold door folded open in the Foshan showroom

BF-40

Up to eight panels that fold into a stack narrower than a door width.

8-panel bi-fold · 75/90 mm profile · full glass

Configurations
18
Glazing options
8
Lead time
35–45 days
Warranty
15 yr

Configurations

18

Glazing options

8

Lead time

35–45 days

Warranty

15 yr

Both documents are free — quoted against your project within 24 hours.

123

BF-40 frame section, thermal-break build. Photographed section, hardware and installation detail below.

What the section drawing decides

High-end custom is decided in the section drawing, not the brochure. These four layers are held to specification on every BF-40 unit we ship.

01

75 and 90 mm depth, narrow stile

Two depths only, because the panel count and the clear opening decide the section. Up to 8 panels fold to an 8,000 mm opening.

02

Concealed hinges, central multi-point

Lock sits at the meeting stile rather than on each leaf, so the folding stack stays clear.

03

8-16 mm tempered or laminated

Multi-chamber EPDM gasket can be foam-welded for coastal jobs. Panels run 550-950 mm wide.

04

EN 14351-1 with EN 13830 on the folding build

Flush threshold carries an integrated bottom rail; a screen option sits in the same track.

Technical detail

The section, the hardware and the fixings — photographed, not rendered. This is the level of detail your drawing office specifies against and your site crew installs to, on every unit that leaves the line.

01

Profile cross-section

Two depths only, 75 and 90 mm, narrow-stile panel design — because on a bi-fold the panel count and the clear opening decide the section, not the leaf weight. Up to 8 panels fold away from an 8,000 mm opening.

Frame

75 / 90 mm, narrow stile

Panels

Up to 8, each 550–950 mm

Clear opening

Up to 8,000 mm

Seal

Multi-chamber EPDM, foam-welded option

Cut aluminium profile sections held in a gloved hand beside a PA66 GF25 thermal break sample
Profile sections cut open: the thermal break, the chambers and the glazed edge read as three separate things.
Thermal break bar visible in the window frame cross section
The continuous PA66 break bar isolates the outer and inner aluminium.
Multi-chamber aluminium profile cross section with the insulation bar cut through
Chambers in the profile cross section — stiffness and drainage run through the cavity layout, not the wall thickness alone.
Thermally broken aluminium profile with the polyamide bridge
The polyamide bridge breaks the conductive path that would otherwise run across the frame.
Profile cross sections and a glazed edge on the showroom display rack
Sections on the same platform, sized for the leaf load and the threshold.
Thermal break bar detail on the extrusion line
Thermal break bar, second detail — continuous PA66 from the extrusion line.
02

Hardware

Concealed hinges carry each panel and the multi-point lock sits at the meeting stile rather than on every leaf, so the folding stack stays clear when the panels are open.

Hinges

Concealed, per panel

Locking

Central multi-point at stile

Stack

Clear when panels open

Check

Cycled as a full set

Multi-point locking bolt points on a door leaf edge
Multi-point locking — the handle drives bolt points top, bottom and on the meeting stile, not one edge.
Window handle with base plate and strike set and fixing screws
Handle, base plate and strike set — the full set, fitted and cycled before dispatch.
Dark lever handle on a white door leaf
Key-operated handle for ground-floor and security specifications.
Metal lever handle catching the light on a timber door
Metal finish for clean, high-traffic interior positions.
Steel entrance door with a multi-point lock and keypad
Strike and fixings match the handle set; nothing is improvised on site.
Handle sets laid out for the fitting line
Every handle set is matched to the sash before the unit is built.
Gloved hands fitting a corner bracket and hardware into an aluminium profile
Fitted on the line, not on site — the corner bracket and its fasteners go in as one operation.
Corner bracket and hardware components held in a gloved hand
The corner bracket is what ties the joint together; it is cut and drilled to match the profile it drives.
03

Installation

Factory-assembled and pre-glazed, so the tolerance work is done under a roof. On site the build is a three-zone detail — air, insulation, weatherproofing — and every crate arrives with the install guide and the sealant schedule for that market.

Arrives

Factory-assembled

Detail

3-zone: air / insulation / water

Guide

Per-crate install sheet

Sealant

Scheduled per market

Ivy-clad elevation with the window openings left in view
The opening condition on a real elevation — each layer does one job and the details are not mixed.
Gasket line being run into the sash profile
Every glazed unit is sealed along the gasket line before it leaves the shop.
Extruded gasket stock racked in the factory store
Gasket is stocked as a schedule, not a habit — the compound and the section are named per market.
The same gasket run seen across the line
Pre-treatment and powder coat — every profile runs the surface line before assembly.
Machinist cutting a component on the workshop line
The workshop line — components cut, machined and checked at the quality gate, before crating.
Die casting press forming the hardware components
Hardware is cast in-house, so the cam and gear match the profile it drives.

The system in short

A bi-fold door is a folding glazing system whose panels stack to one side, opening terraces up to 8 metres clear. BF-40 runs up to eight 550–950 mm panels on a flush threshold with concealed hinges, a central multi-point lock and an optional folding screen track for patios, restaurants and hospitality entrances.

A narrow-profile folding system for patios, terraces and hospitality entrances. Panels stack to the side in a compact rail, leaving a clear opening up to 8 metres. Flush threshold and integrated screens keep the stack tidy.

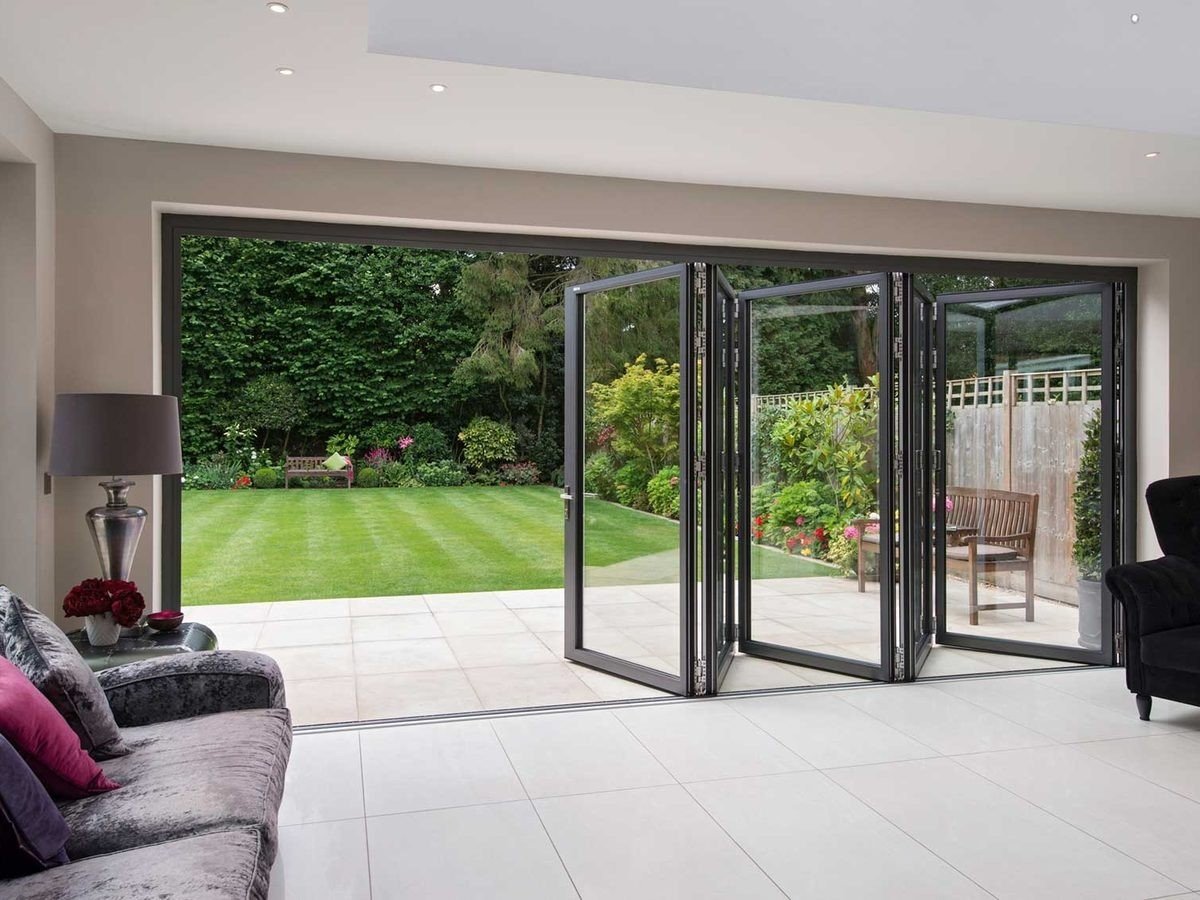

BF-40 installed view
BF-40 — Bi-Fold Doors

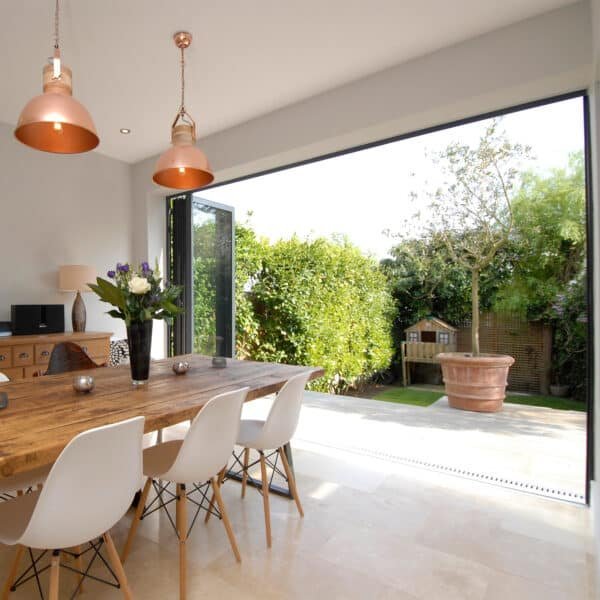

BF-40 detail
BF-40 — detail

Models and sizes

Every BF-40 ships as one of the configurations below — specify by model code in your window schedule and it quotes line by line.

BF-40 4P

  • 4 panels, 2 sliding · 4,200 mm clear
  • 8–16 mm tempered

BF-40 5P

  • 5 panels, 3 sliding · 5,100 mm clear
  • 8–16 mm laminated

BF-40 6P

  • 6 panels, 3 sliding · 6,000 mm clear
  • Laminated low-E

BF-40 8P

  • 8 panels, 4 sliding · 8,000 mm clear
  • Laminated IGU

BF-40 SCREEN

  • Folding screen track, 20 s close
  • Stainless mesh

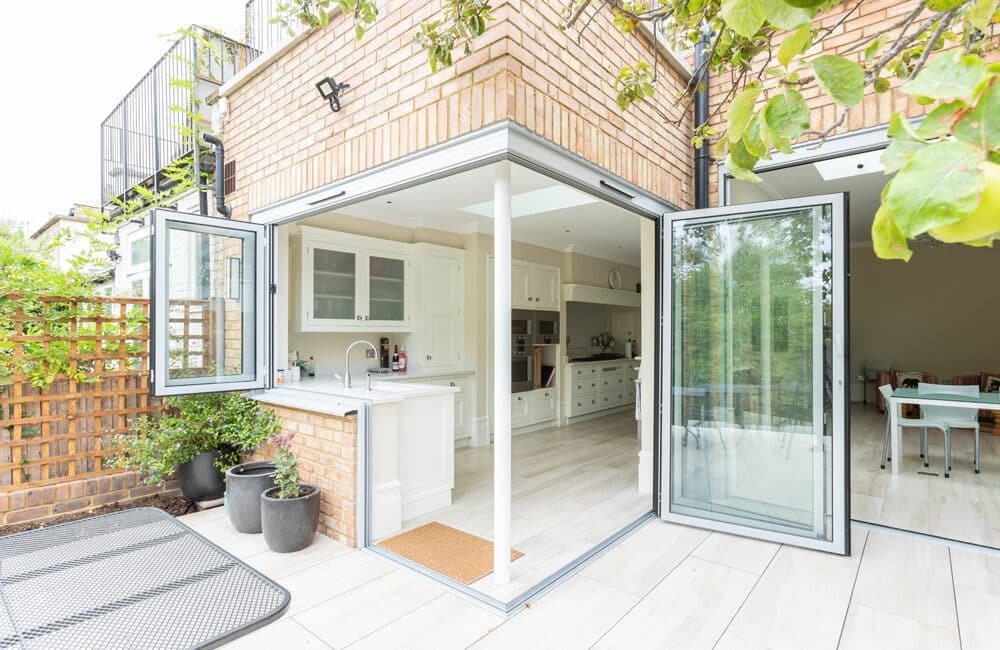

BF-40 configurations in place
BF-40 — configurations in place

Specifications

Profile system
75 / 90 mm depth, narrow-stile panel design
Panels
Up to 8, each 550–950 mm wide
Clear opening
Up to 8,000 mm
Glazing
8–16 mm tempered or laminated
Track
Flush threshold, integrated bottom rail, screen option
Hardware
Concealed hinges, central multi-point lock
Seal
Multi-chamber EPDM gasket, foam-welded option
Finishes
Anodised, powder-coated, RAL on request
Standards
Tested to EN 14351-1, EN 13830
BF-40 profile and glazing detail
BF-40 — profile and glazing detail

Material & craft

The layers held to specification on every BF-40 unit — the section drawing above, written out.

Folding geometry

Folding geometry

Up to eight 550–950 mm panels on concealed hinges, four of them sliding, to 8,000 mm clear on a flush threshold with an integrated bottom rail.

Locking

Locking

A central multi-point lock closes the stack as one unit; the door leaf takes the street, the panels take the view.

Screen track

Screen track

The BF-40 SCREEN variant carries a folding stainless mesh track that follows the stack — twenty seconds to closed.

What it's worth to you

Bi-Fold Doors installed on a residential elevation

Eight metres clear, eight panels, one locking point — the opening stays usable when it is mostly closed.

The hospitality entrance configuration is rated for the service pattern, with the 15-year warranty on the hardware line.

Under an eave overhang it is the patio wall; for fully exposed walls the schedule swaps to the LS-60 on the same platform — one drawing set either way.

Specify Bi-Fold Doors

Send the project location, the opening sizes and the finish. Drawings, window schedules or a specification can be attached — quoting is done against the drawings, not a price list.

Request a quotation

Fields marked * are required. Drawings, CAD or a window schedule can be attached — up to 5 MB.

Products of interest
Bi-Fold Doors
Attach drawing / schedule (dwg, pdf, xls — max 5 MB)

Guaranteed response within 24 hours, every inquiry. No price lists are shared outside the quotation.

Where it is specified

The sites we build this system for, and what the schedule changes in each one.

Patios and garden rooms

The stack folds to one side, leaving almost the whole opening clear.

Restaurant and café fronts

Dining room to terrace, closed against insects in seconds.

Hospitality entrances

Wider arrival glazing than a door pair, with the same locking discipline.

Golf and resort villas

Under an eave overhang; for fully exposed walls we spec lift & slide.

Two-room layouts

Folds across both rooms when the party is on one side.

Options and finishes

Panels
Up to 8, each 550–950 mm wide
Clear opening
Up to 8,000 mm
Glazing
8–16 mm tempered or laminated
Track
Flush threshold, integrated bottom rail, screen option
Hardware
Concealed hinges, central multi-point lock
Seal
Multi-chamber EPDM gasket, foam-welded option
Finishes
Anodised, powder-coated, RAL on request

Finish

Anodised Natural

Anodised Silver

Anthracite · RAL 7016

Graphite · RAL 7024

Jet Black · RAL 9005

Traffic White · RAL 9016

Cream · RAL 1015

Champagne · RAL 1019

Ash Natural

Walnut Dark

Bronze

Copper

View all finishes

Design features

Up to 8 panels, clear opening to 8 m

Flush threshold, integrated bottom rail

Concealed hinges, central multi-point lock

Folding screen track that follows the stack

Panels 550–950 mm wide

Hospitality entrance configuration

Glass build

Two choices set what the glass does in a BF-40: which coating is on it, and what fills the cavity. The coating sets the solar figure. The gas moves the U-value and leaves the solar figure where it was — which is why the two are decided separately. The values below are published by the glass manufacturers for the build named; they are centre-of-glass figures, and the whole-window value for a configuration is read from the report that covers it.

BuildSHGCU, centre of glassWhere it is chosen
LoE-180, argon0.690.26High solar gain, cold climate
LoE-272, argon0.410.25Balanced, the usual default
LoE-366, argon0.270.24Solar control, west and south glass
LoE-366 with LoE-i89 on #4, argon0.270.20Solar control with the lowest U-value

NFRC centre-of-glass values for a 3/4 in two-pane unit with 3 mm lites and a 13 mm argon cavity. The spacer is the third lever and behaves differently again: it works at the edge of the unit, so it shows in the whole-window value rather than here.

Full glass performance tables, including air against argon and EN 673 values →

Buying & delivery

The commercial terms behind the BF-40 — minimum order, quotation, payment, packing and warranty — are the same on every quotation and sit on the commercial terms for a folding wall. Buying to resell, or to fabricate the line yourself? supply terms for a folding wall covers the supplier view of the same schedule.

Request a quote for this system
Lead time
35–45 days from approved shop drawings. Assembly, glazing and quality control sit inside the quoted lead time, not on top of it.
Standards on this system
Tested to EN 14351-1 and EN 13830. The assembly answers SANS 613 for wind and impact loads, water penetration and air leakage, and installation runs to SANS 10137; the flush threshold and the stack detail are set at shop-drawing stage.Source documents: EN 14351-1·SANS 613·SANS 10137
Documents and crating
Hardware and glass schedules ship in the shop drawing package, free, within three working days of approved architectural drawings. Crated corner-protected with desiccant; a loading report per bay and a packing list per crate. Test reports are issued on request.

Documentation

Data sheet

System specifications, model codes and glazing schedule, as a PDF.

Brochure

Full-range presentation for tender packs and client meetings.

CAD sections & BIM families

Section blocks and families for inclusion in project documentation.

Ask for it

Specification clauses

Draft specification text for the drawing package, per system.

Ask for it

RFQ template

The inquiry sheet our quote team needs to answer within 24 hours.

Open the downloads

Confirm before the order is placed

Six items hold up an order on the BF-40 more often than anything else. None of them is decided here; each one has to be settled on the project side before the drawing set is frozen.

Rough opening, not frame size

Confirm the structural opening and the reveal build-up. The frame is ordered to the approved drawing, and the drawing is what the quotation is built from.

The opening is quoted before the render and the closing detail, then the reveal takes back the clearance.

Glass build

Confirm pane thickness, coating, spacer and cavity gas as one line. The tested configuration is the one the report covers.

Glass specified by thickness alone. The coating, spacer and gas move the U-value and the SHGC independently.

Operation and handing

Confirm the opening direction, the handing and the number of leaves, and say which side the handing is read from.

Handing recorded from the inside on one schedule and the outside on another.

Finish

Confirm the RAL or anodising grade, and whether the address needs a marine-grade schedule.

The finish is picked from a screen, and the coastal requirement is raised after production has started.

Hardware

Confirm handle type, locking point count, and whether the market requires key-operated locking.

Hardware assumed standard; the site then needs keyed-alike cylinders that were never on the order.

Documents with the shipment

Confirm which reports and declarations travel with the crate. A certificate is issued per configuration, not per product family.

Test documentation requested after shipment, when the report for that configuration has to be re-issued.

Threshold and floor build-up

Confirm the finished floor level and whether a flush, barrier-free threshold is required.

The threshold is decided on site, after the frame has been extruded to a standard sill.

Who confirms each part

No single party holds the whole decision. The drawing set is the one place they meet.

Buyer or developer

Opens the order: the standard the project has to meet, and the market it ships to.

Designer or architect

Sets the configuration: sizes, operation, finish and the glass build.

Structural engineer

Where the market requires it, sets the wind load the opening is rated to.

Factory

Confirms what can be built to that drawing, and issues the report for the configuration.

Everything else on the commercial side — minimum order, quotation, payment, packing and warranty — is the same on every order and sits on the commercial terms page.

Compare with the other door systems

Every system in this category on one table — the platform it shares, the opening it carries and the glazing it takes. Figures come from each system record, not retyped here.

7 door systems in the catalogue
CodeSystemPlatformGlazing options
LS-60Lift & Slide Doors10–16 mm tempered or laminated
BF-40Bi-Fold Doors — this system8–16 mm tempered
SD-50Sliding Patio Doors8–20 mm tempered or IGU
FD-60French Doors8–19 mm tempered or IGU
PV-75Pivot Doors19–25 mm laminated or IGU
SC-40Screen DoorsNo glazing — mesh screen door
ED-90Entry DoorsNo glazing — laminated core leaf

Frequently asked

An 8-panel configuration stacks to roughly the width of two closed panels — typically under 1,100 mm — against the fixed return.
