ED-90 Entry Doors
Inward entry · 105 mm leaf · key on both sides
ED-90
The first thing a visitor tests, and the last thing a façade forgets.
Inward entry · 105 mm leaf · key on both sides
9
6
30–40 days
15 yr
Read the section
High-end custom is decided in the section drawing, not the brochure. These four layers are held to specification on every ED-90 unit we ship.
6063-T5 multi-chamber frame
PA66 thermal-break bar
EPDM double gasket
Hardware & fixing
Technical detail
The section, the hardware and the fixings — photographed, not rendered. This is the level of detail your drawing office specifies against and your site crew installs to, on every unit that leaves the line.

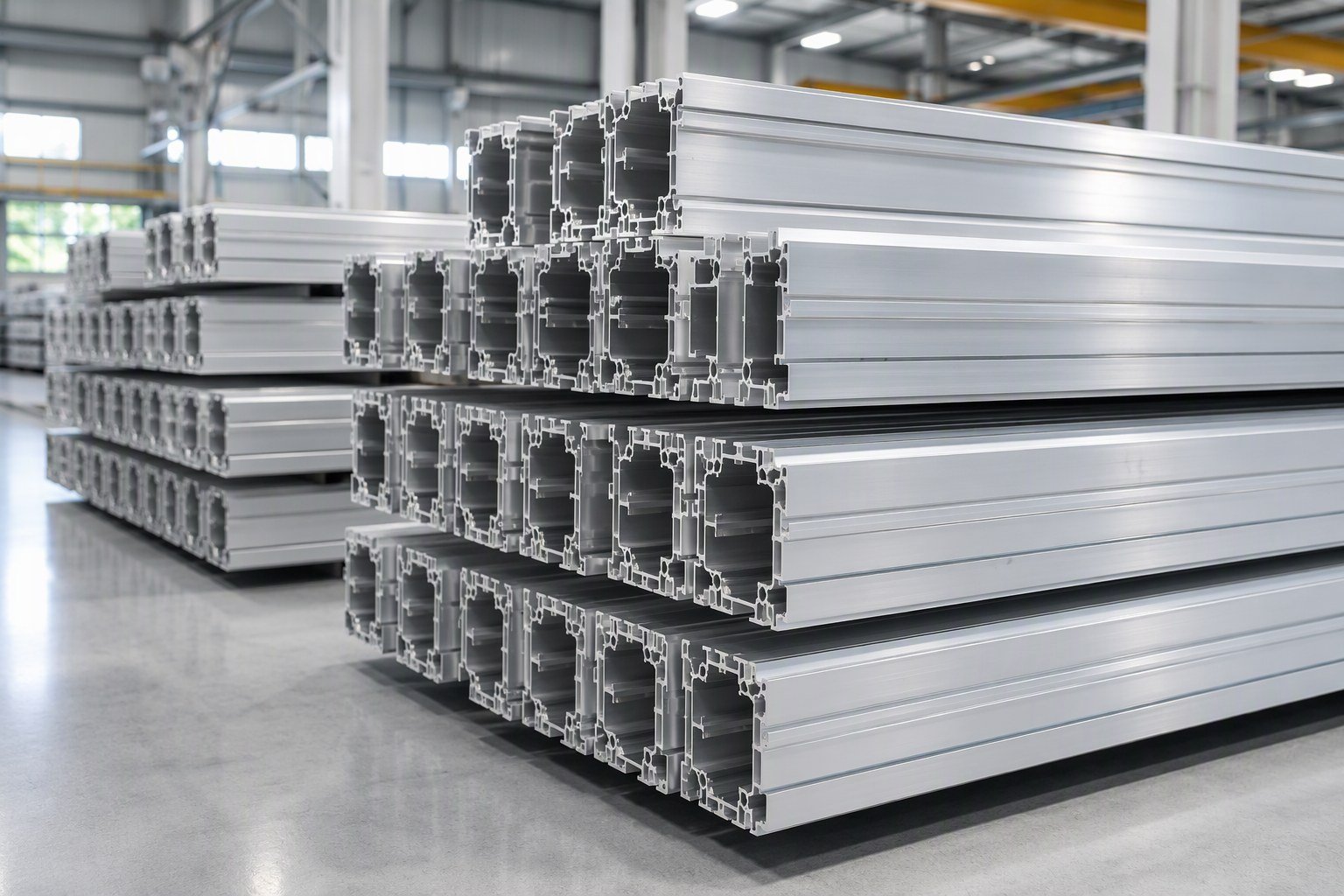

Profile cross-section
Multi-chamber 6063-T5 extrusion with a continuous PA66 thermal-break bar. The section is where stiffness, insulation and drainage are decided in one drawing — and the four values in the performance band above are read straight off it.
6063-T5, multi-chamber
PA66 polyamide, continuous
EPDM, two replaceable lines
Concealed, positive slope

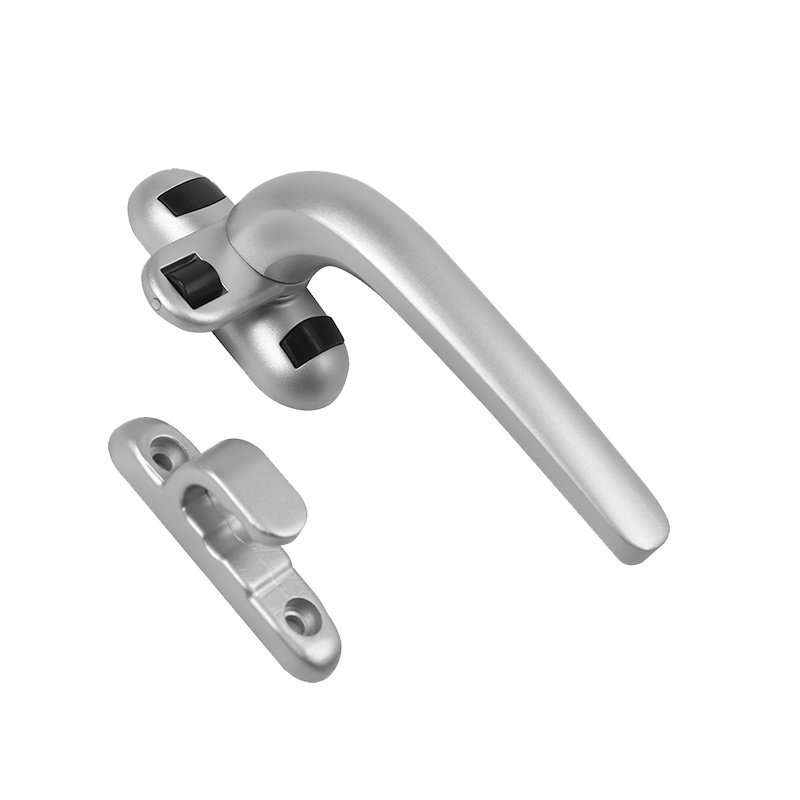

Hardware
Pre-fitted and function-checked on every sash before it leaves the line. Multi-point locking, key-operated handles and marine-grade sets are scheduled per project and listed in the hardware schedule that ships with the shop drawings.
Multi-point, per sash
Key-operated option
Marine-grade available
Cycled at the factory
Installation
Factory-assembled and pre-glazed, so the tolerance work is done under a roof. On site the build is a three-zone detail — air, insulation, weatherproofing — and every crate arrives with the install guide and the sealant schedule for that market.
Factory-assembled
3-zone: air / insulation / water
Per-crate install sheet
Scheduled per market
Overview

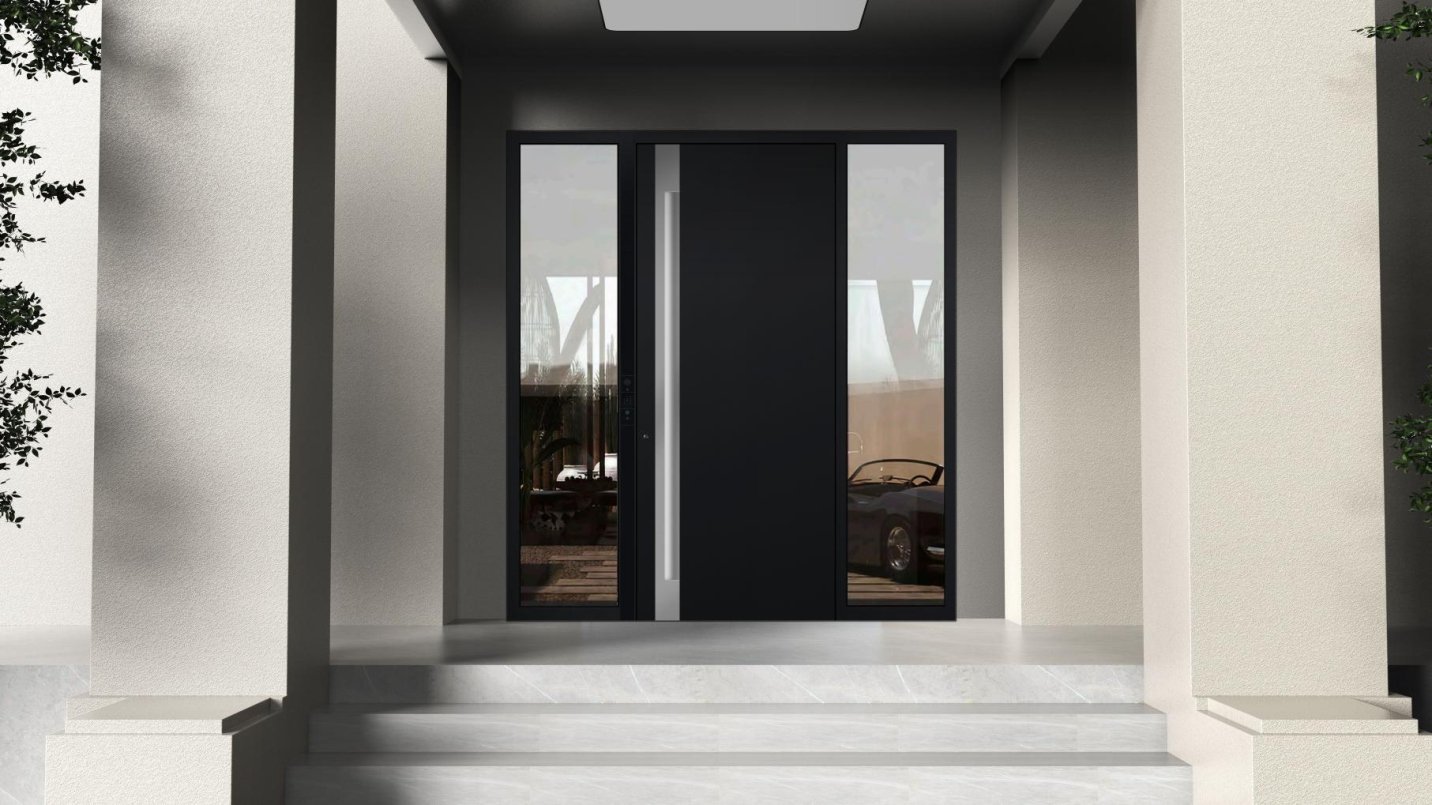

An entry door is the primary access leaf of a building — an inward-opening, multi-point-locked aluminium door with a laminated core and a key from both sides. ED-90 builds it on a 105 mm thermal-break leaf with a 31 mm visible face, flat, fluted or woodgrain panels, and a fluted or clear sidelight to a triple 5+18A+5+15A+5 unit, for residential and boutique-hotel entries.
An inward entry door on a 105 mm thermal-break leaf with a 31 mm visible face, a laminated core and a multi-point lock keyed on both sides. Flat, fluted or woodgrain panels over the core, a fluted or clear sidelight beside the leaf, and a long-pull handle in anodised RAL.
The lock schedule is the entry specification: multi-point engagement across the meeting edge, a key from either face, and the laminated core behind the panel line. The sidelight or vision panel takes glazing up to a triple 5+18A+5+15A+5 unit, and the leaf arrives factory-assembled with the lock set fitted and function-checked before crating.
Models
Every ED-90 ships as one of the configurations below — specify by model code in your window schedule and it quotes line by line.
ED-90 PANEL
- Solid leaf, flat or fluted panels
- Laminated core, no glazing

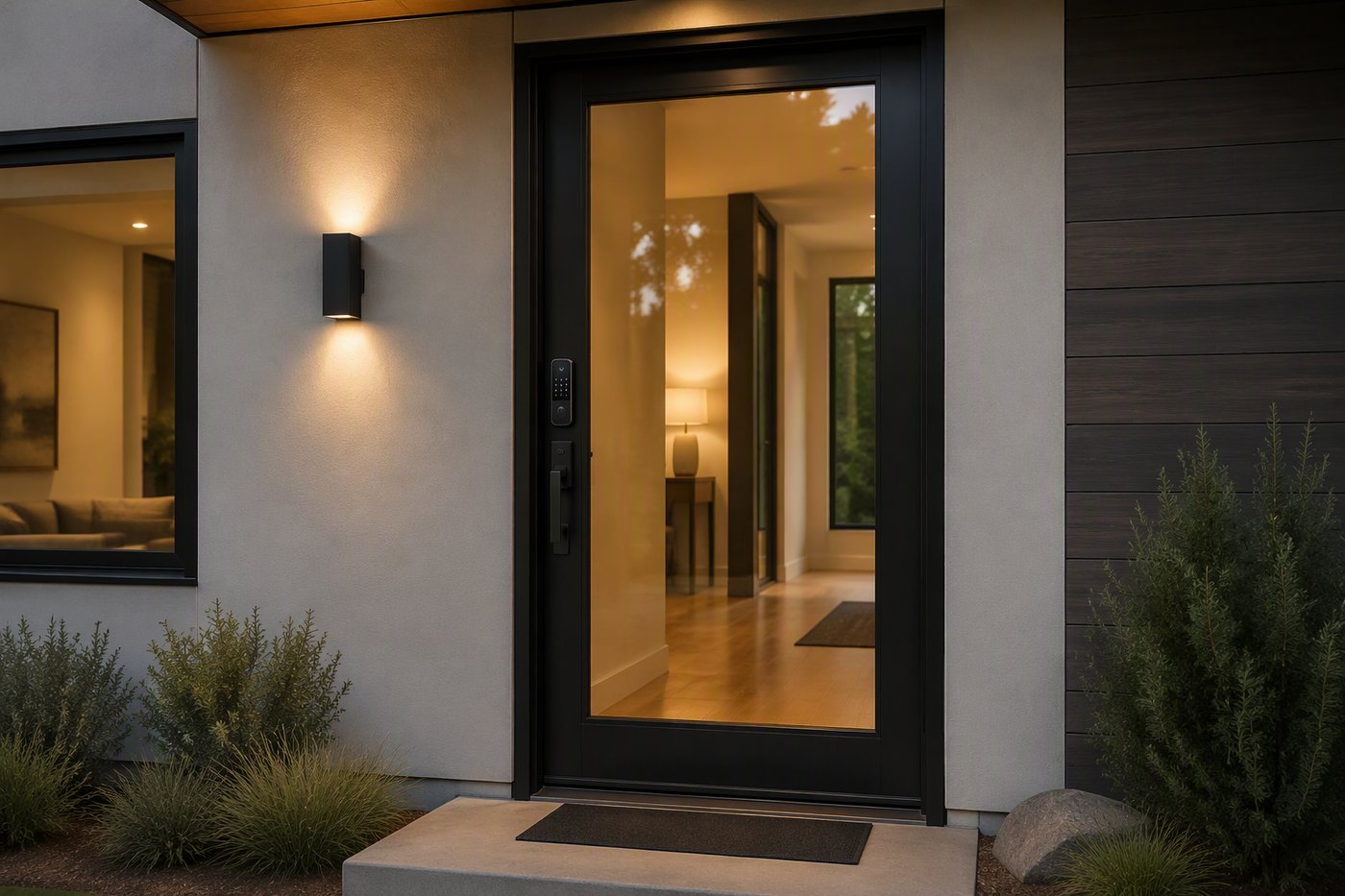

ED-90 VISION
- Leaf with vision panel
- Tempered laminated
ED-90 SIDELIGHT
- Leaf plus fluted or clear sidelight
- To triple 5+18A+5+15A+5
ED-90 KEY
- Key on both faces, entrance schedule
- Laminated core
Specifications
- 105 mm thermal-break, 1.8 mm wall, 31 mm visible face
- Multi-point, key-operated on both sides
- Laminated core; flat, fluted or woodgrain panels
- Fluted or clear, glazing to triple 5+18A+5+15A+5
- Long-pull, anodised RAL
- Tested to EN 14351-1, EN 13830; AAMA 2605 option
Material & craft
The layers held to specification on every ED-90 unit — the section drawing above, written out.

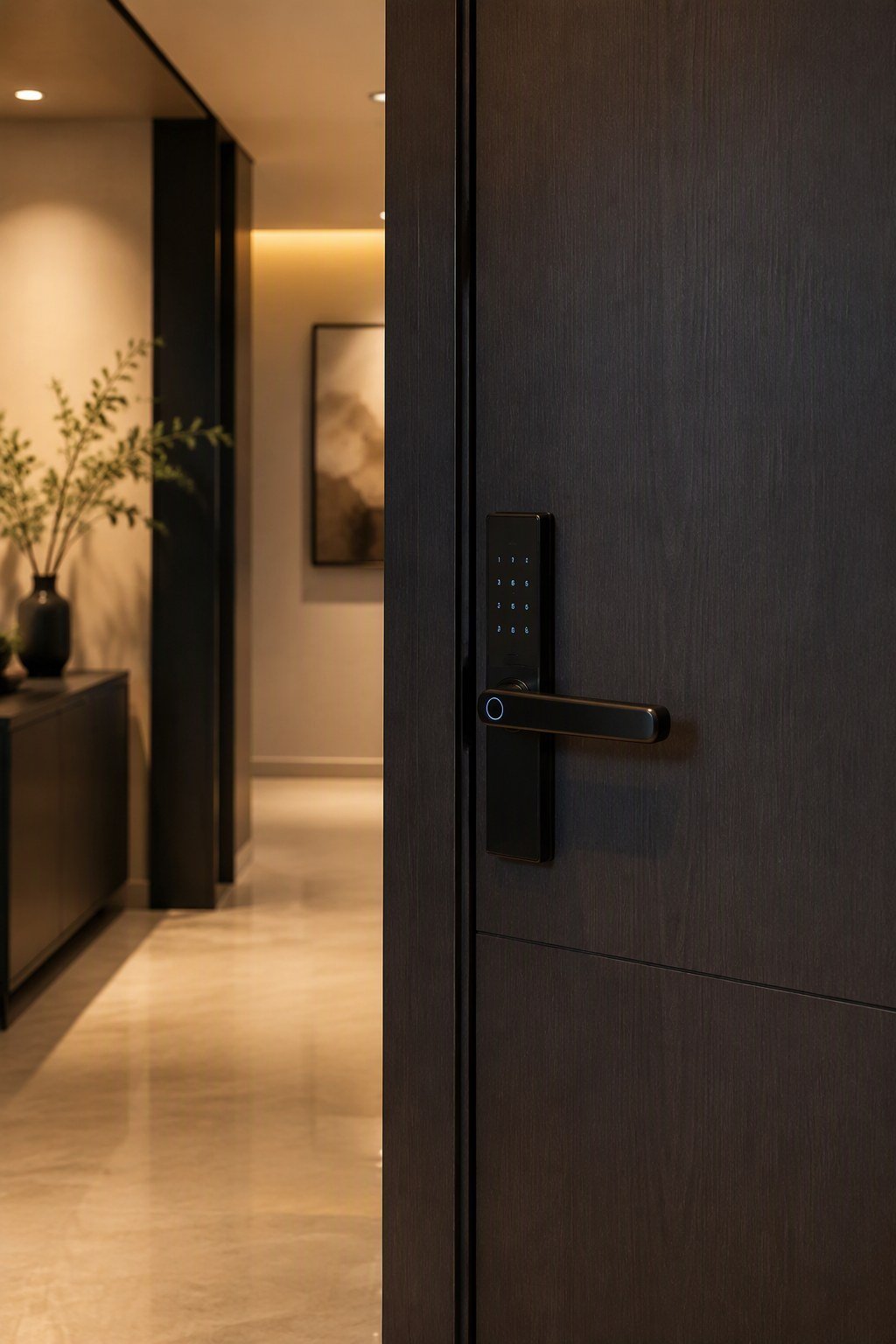

Leaf build
A 105 mm thermal-break leaf on a 1.8 mm wall with a 31 mm visible face — the panel line hides the depth, and the depth does the sealing.

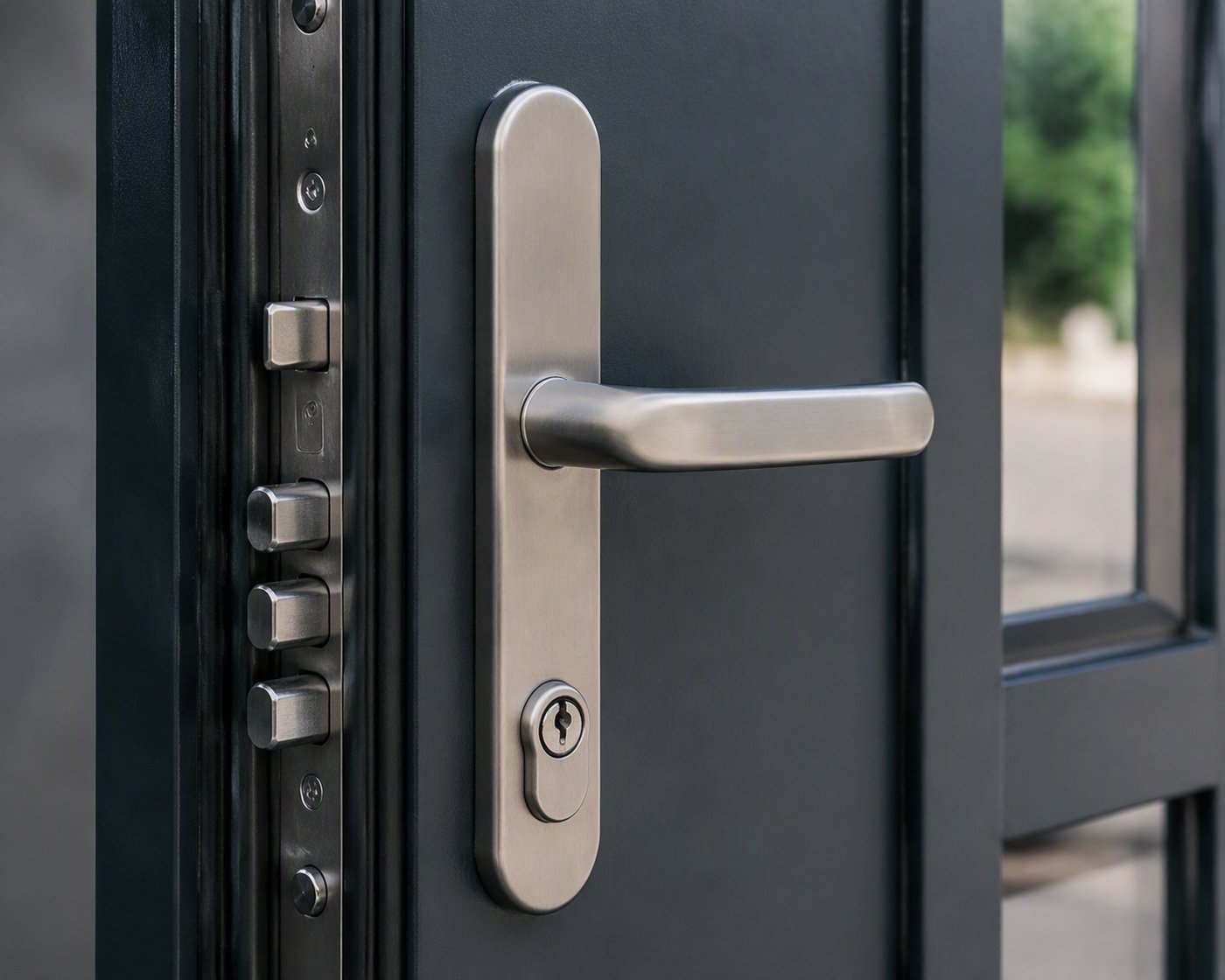

Lock schedule
Multi-point engagement across the meeting edge with a key on both faces; the laminated core sits behind the panel line, and the turn of the key is the security position.

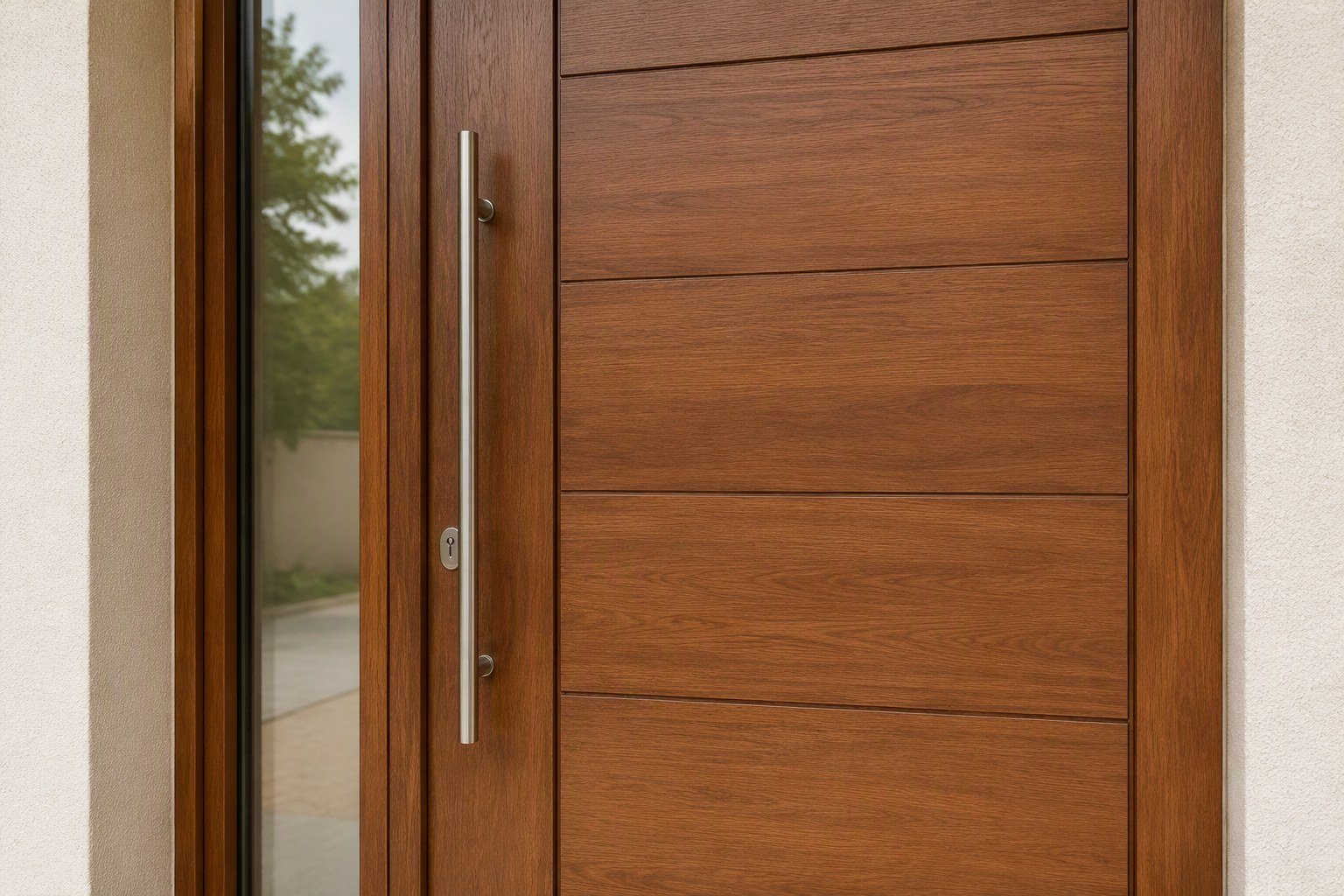

Finish & handle
Flat, fluted or woodgrain panels over the laminated core, the long-pull handle in anodised RAL, and a fluted or clear sidelight that takes the triple unit.
What it's worth to you
The key works on both faces — the street-facing side and the approach side quote as one leaf, not two doors.
Factory-assembled with the lock set fitted and function-checked before crating: the site hangs, fixes and levels.
A 15-year warranty on the frame and the hardware, counted from the loading report that ships in the crate.
Where it is specified
The sites we build this system for, and what the schedule changes in each one.

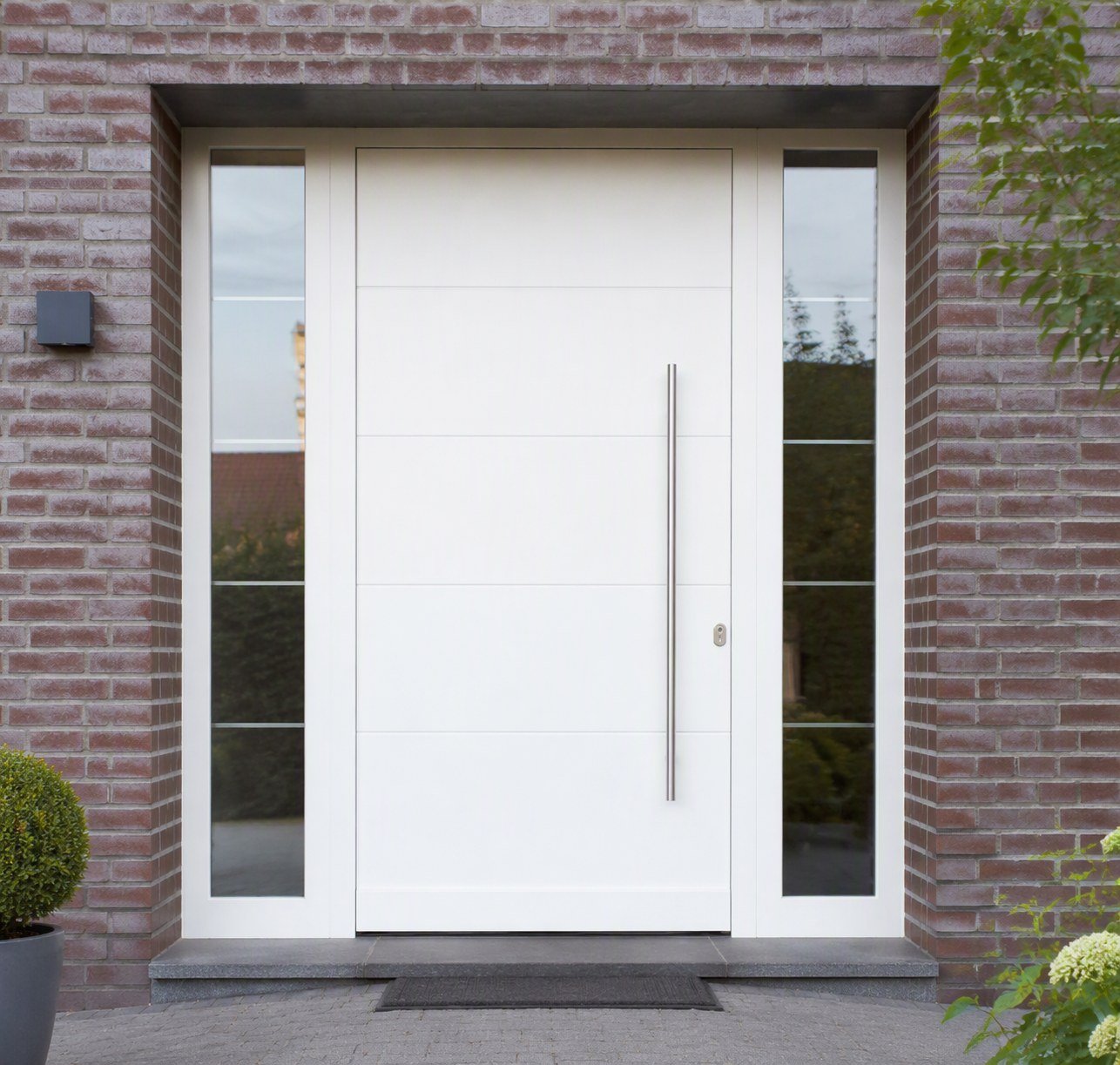

Residential entries
The street-facing leaf with the key on both faces.
Boutique hotel arrivals
A solid or vision leaf that quotes as one line per unit.
Townhouse frontages
The 31 mm visible face for the compressed entry bay.
Garden and side entries
The vision-panel model where the entry takes the light.
Shared-approach buildings
Two keyed faces for the double-front specification.
Options
Finish
Anodised Natural
Anodised Silver
Anthracite · RAL 7016
Graphite · RAL 7024
Jet Black · RAL 9005
Traffic White · RAL 9016
Cream · RAL 1015
Champagne · RAL 1019
Ash Natural
Walnut Dark
Bronze
Copper
Design features
105 mm leaf, 1.8 mm wall, 31 mm visible face
Multi-point lock, key-operated on both sides
Laminated core; flat, fluted or woodgrain panels
Fluted or clear sidelight to triple 5+18A+5+15A+5
Long-pull handle, anodised RAL
Factory-assembled, lock set function-checked
Buying & delivery
The commercial terms behind the ED-90 — the same schedule on every quote, so the number you are shown is the number you can hold us to.
Request a quote for this system- No square-metre minimum for villa and boutique projects — a single wall of this system can be its own order. For multi-unit developments the MOQ scales with the range ordered, and both are quoted together.
- Unit-by-unit commercial quotation within 24 hours of a complete inquiry — dimensions, glass specification, finish and destination port.
- 30–40 days from approved shop drawings. Assembly, glazing and quality control sit inside the quoted lead time, not on top of it.
- Free, within 3 working days of approved architectural drawings — hardware schedules, glass schedules and fixing details included.
- Factory-assembled and pre-glazed in a corner-protected wood crate with desiccant; a per-bay loading report and a per-crate packing list run with the shipment. FOB standard, CIF or DDP to the job site, 40HQ consolidation across ranges.
- 50% deposit against order confirmation, 50% against the pre-shipment inspection report, by T/T. Other instruments for established partners and large frameworks.
- 15-year frame, 5-year hardware and gasket; the glass manufacturer warranty passes through. Project-specific extensions are written into the contract.
- Where the project carries a test — impact, cyclone or acoustic — the report and certificate are referenced to the configured models on the order and ship with the first container.
Documentation
Data sheet
Brochure
CAD sections & BIM families
Specification clauses
RFQ template
Compare with the other door systems
Every system in this category on one table — the platform it shares, the opening it carries and the glazing it takes. Figures come from each system record, not retyped here.
| Code | System | Platform | Standard glazing |
|---|---|---|---|
| LS-60 | Lift & Slide Doors | ||
| BF-40 | Bi-Fold Doors | ||
| SD-50 | Sliding Patio Doors | ||
| FD-60 | French Doors | ||
| PV-75 | Pivot Doors | ||
| SC-40 | Screen Doors | ||
| ED-90 | Entry Doors |

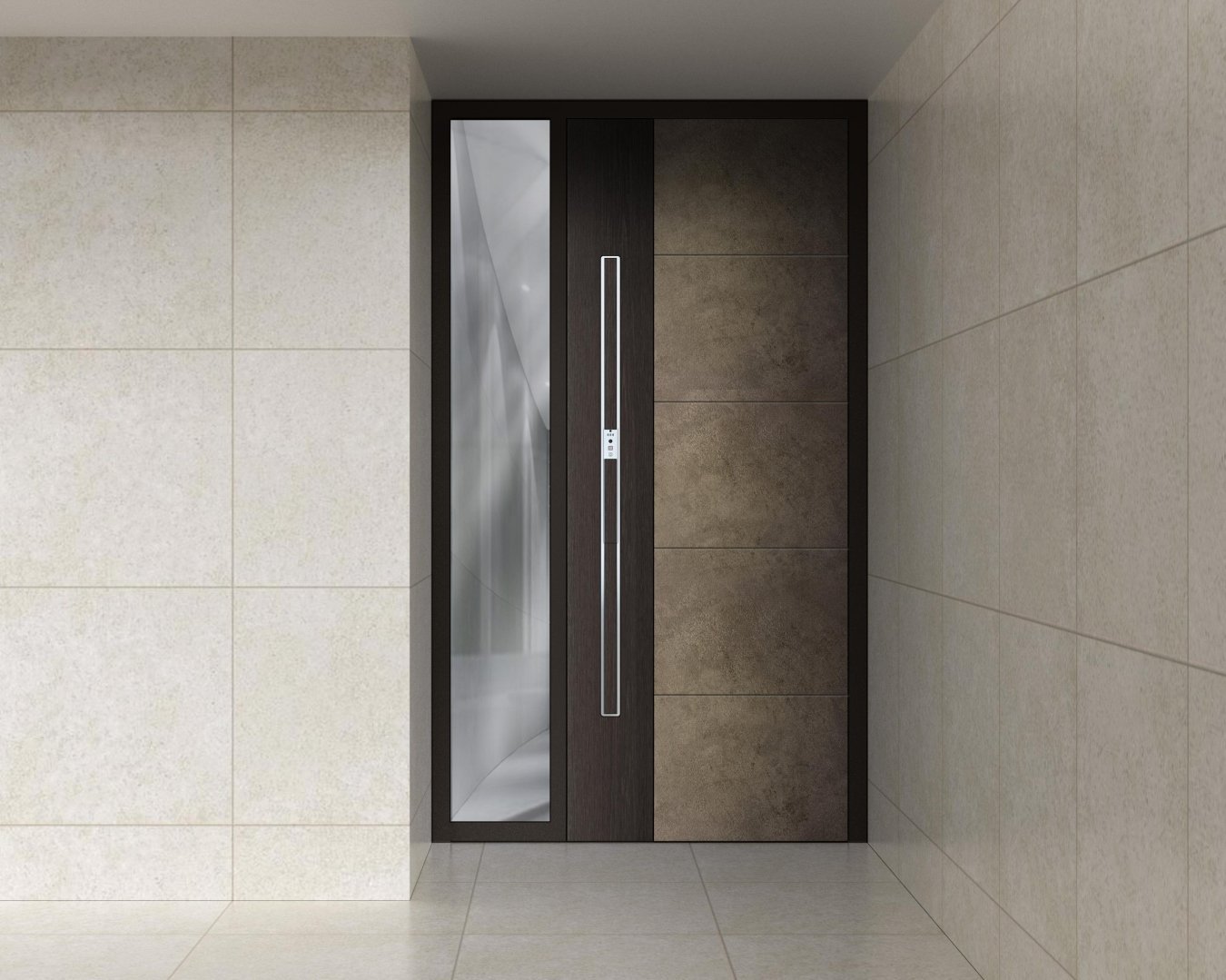

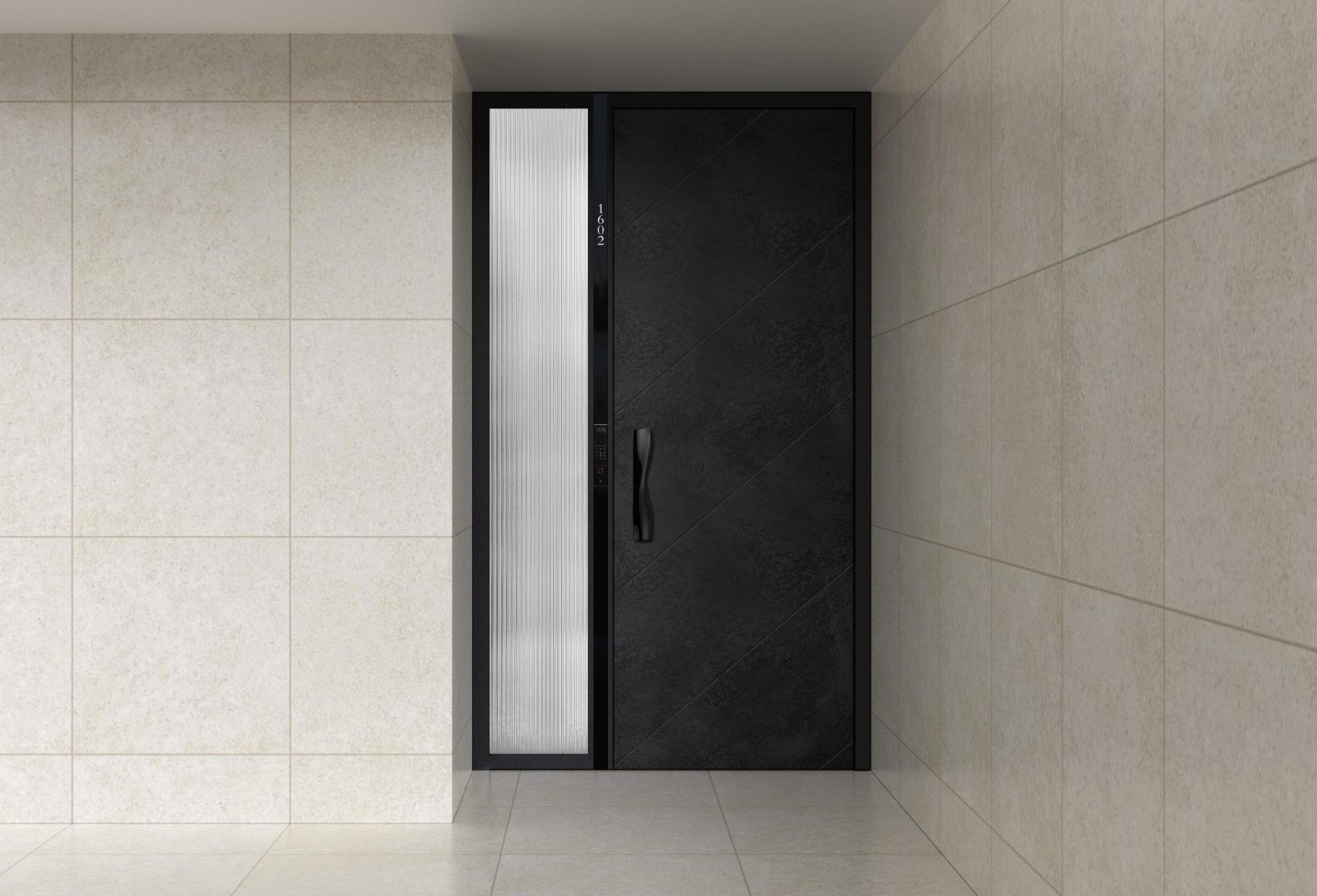

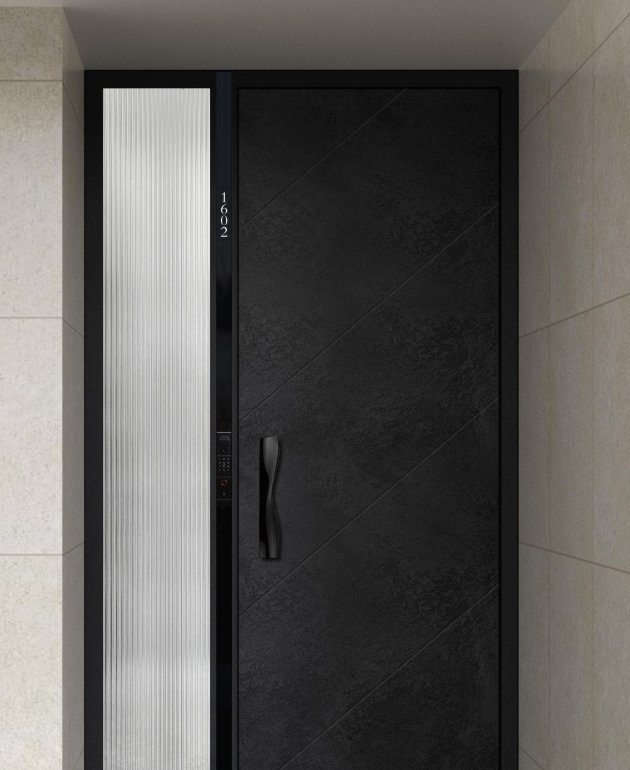

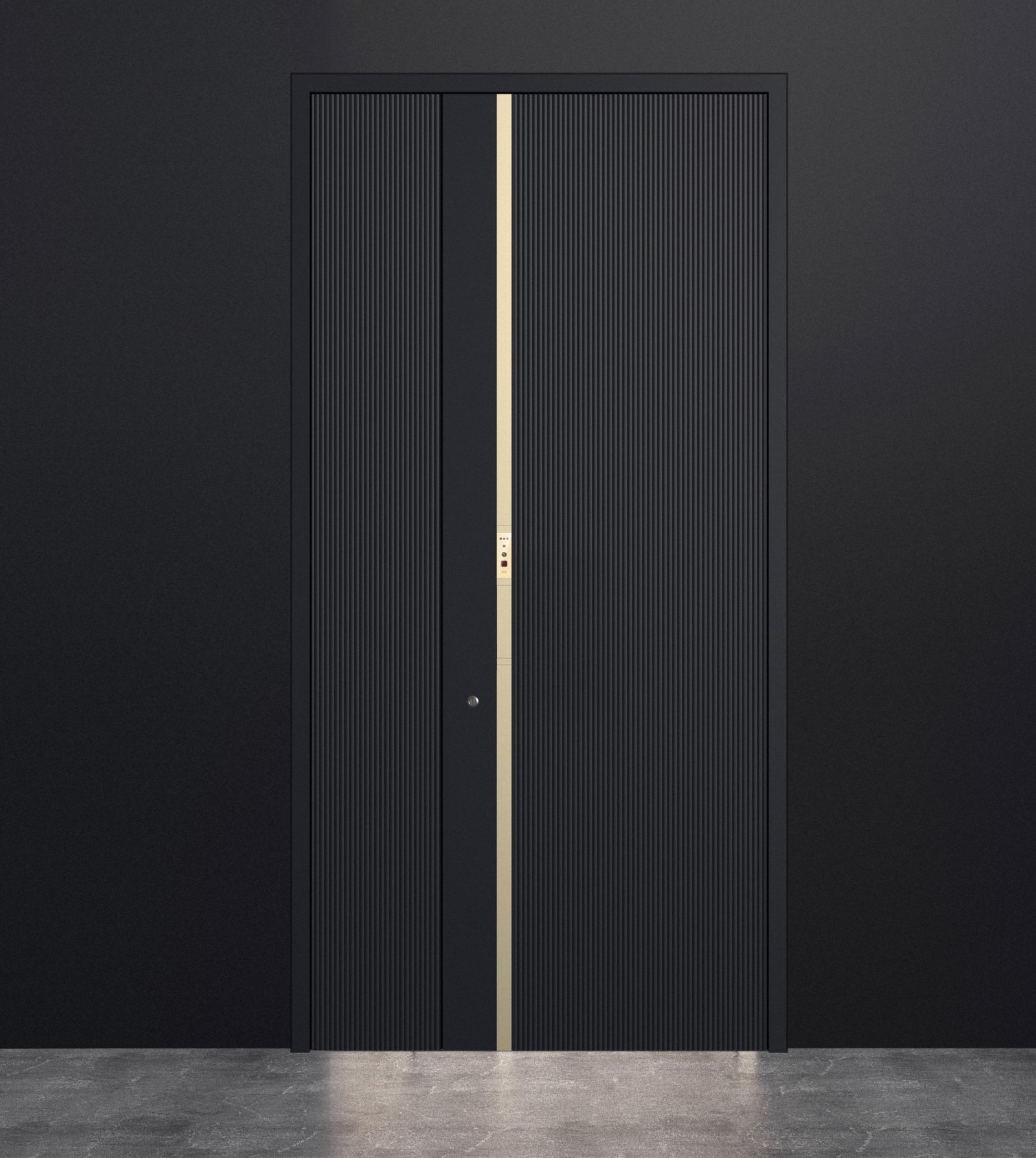

Gallery
Frequently asked
Yes — the multi-point lock takes a key on both faces, the standard for street-facing and shared-approach entries.
Same platform
All systems
LS-60
Lift & Slide Doors
6,000 mm barrier-free lift-slide · 300 kg sash · flush threshold
BF-40
Bi-Fold Doors
8-panel bi-fold · 75/90 mm profile · full glass
SD-50
Sliding Patio Doors
2, 3 or 4-track sliding · fixed panels between sliders
FD-60
French Doors
Double-leaf hinged · full-glass sash · multi-point lock
Specify ED-90 for your project
The Inward entry configuration is quoted unit by unit, within 24 hours.
