Lift-and-slide door in the Foshan showroom, the two sashes meeting on a flush track

LS-60

The largest opening in the range. A 6-metre sliding wall that disappears at the wall.

6,000 mm barrier-free lift-slide · 300 kg sash · flush threshold

Configurations
24
Glazing options
10
Lead time
35–45 days
Warranty
15 yr

Configurations

24

Glazing options

10

Lead time

35–45 days

Warranty

15 yr

Both documents are free — quoted against your project within 24 hours.

123

LS-60 frame section, thermal-break build. Photographed section, hardware and installation detail below.

What the section drawing decides

High-end custom is decided in the section drawing, not the brochure. These four layers are held to specification on every LS-60 unit we ship.

01

Depth follows leaf weight

Sections run 75, 139 and 207 mm at 2.0-4.0 mm wall. The 207 mm section is where a 300 kg leaf lands; the 75 mm carries the fixed panel beside it.

02

Multi-point with a vent-height grip

Nothing projects into the walking line, so the flush threshold stays flush across the whole opening.

03

IGU to 6+27A+6

8-16 mm panes, tempered or laminated. The 3,300 x 2,700 mm leaf is the size that sets the lift-and-glide hardware rating.

04

EN 16005 for the large-opening build

Tested to EN 14351-1 and EN 13830; AS 1288 is available as a glass option.

Technical detail

The section, the hardware and the fixings — photographed, not rendered. This is the level of detail your drawing office specifies against and your site crew installs to, on every unit that leaves the line.

01

Profile cross-section

Three sections carry this door: 75 mm on the fixed panel, 139 mm on the sliding leaf, 207 mm where the 300 kg load lands. Roller bearings guide the leaf and carry nothing — the frame takes the weight, which is why the deepest extrusion sits under the opening, not beside it.

Frame

75 / 139 / 207 mm, 2.0–4.0 mm wall

Load path

Frame takes leaf mass, roller guides

Track

50 mm stepped, drainage integrated

Threshold

Flush, barrier-free option

Cut aluminium profile sections held in a gloved hand beside a PA66 GF25 thermal break sample
Profile sections cut open: the thermal break, the chambers and the glazed edge read as three separate things.
Thermal break bar visible in the window frame cross section
The continuous PA66 break bar isolates the outer and inner aluminium.
Multi-chamber aluminium profile cross section with the insulation bar cut through
Chambers in the profile cross section — stiffness and drainage run through the cavity layout, not the wall thickness alone.
Thermally broken aluminium profile with the polyamide bridge
The polyamide bridge breaks the conductive path that would otherwise run across the frame.
Profile cross sections and a glazed edge on the showroom display rack
Sections on the same platform, sized for the leaf load and the threshold.
Thermal break bar detail on the extrusion line
Thermal break bar, second detail — continuous PA66 from the extrusion line.
02

Hardware

Vent-height integrated grip, driving the multi-point lock: nothing projects into the walking line, which is what lets the threshold stay flush across the full 6,000 mm opening instead of tripping at the frame.

Locking

Multi-point, vent-height grip

Capacity

Up to 300 kg per leaf

Coastal

Marine-grade set available

Check

Lift-and-glide cycled at factory

Multi-point locking bolt points on a door leaf edge
Multi-point locking — the handle drives bolt points top, bottom and on the meeting stile, not one edge.
Window handle with base plate and strike set and fixing screws
Handle, base plate and strike set — the full set, fitted and cycled before dispatch.
Dark lever handle on a white door leaf
Key-operated handle for ground-floor and security specifications.
Metal lever handle catching the light on a timber door
Metal finish for clean, high-traffic interior positions.
Steel entrance door with a multi-point lock and keypad
Strike and fixings match the handle set; nothing is improvised on site.
Handle sets laid out for the fitting line
Every handle set is matched to the sash before the unit is built.
Gloved hands fitting a corner bracket and hardware into an aluminium profile
Fitted on the line, not on site — the corner bracket and its fasteners go in as one operation.
Corner bracket and hardware components held in a gloved hand
The corner bracket is what ties the joint together; it is cut and drilled to match the profile it drives.
03

Installation

Factory-assembled and pre-glazed, so the tolerance work is done under a roof. On site the build is a three-zone detail — air, insulation, weatherproofing — and every crate arrives with the install guide and the sealant schedule for that market.

Arrives

Factory-assembled

Detail

3-zone: air / insulation / water

Guide

Per-crate install sheet

Sealant

Scheduled per market

Ivy-clad elevation with the window openings left in view
The opening condition on a real elevation — each layer does one job and the details are not mixed.
Gasket line being run into the sash profile
Every glazed unit is sealed along the gasket line before it leaves the shop.
Extruded gasket stock racked in the factory store
Gasket is stocked as a schedule, not a habit — the compound and the section are named per market.
The same gasket run seen across the line
Pre-treatment and powder coat — every profile runs the surface line before assembly.
Machinist cutting a component on the workshop line
The workshop line — components cut, machined and checked at the quality gate, before crating.
Die casting press forming the hardware components
Hardware is cast in-house, so the cam and gear match the profile it drives.

The system in short

A lift & slide door is a heavy-duty sliding system whose leaves lift on bearings before gliding, so a 3,300 × 2,700 mm panel moves with one hand. LS-60 delivers a 6,000 mm barrier-free opening on a flush threshold, for villas, resorts and hospitality terraces where room and terrace become one space.

A heavy-duty lift-and-slide system engineered for villas, resorts and hospitality interiors where the boundary between room and terrace is the design. Sashes lift on roller bearings before sliding, so a 300 kg panel moves with one hand. The flush threshold keeps the floor line continuous inside and out.

LS-60 installed view
LS-60 — Lift & Slide Doors

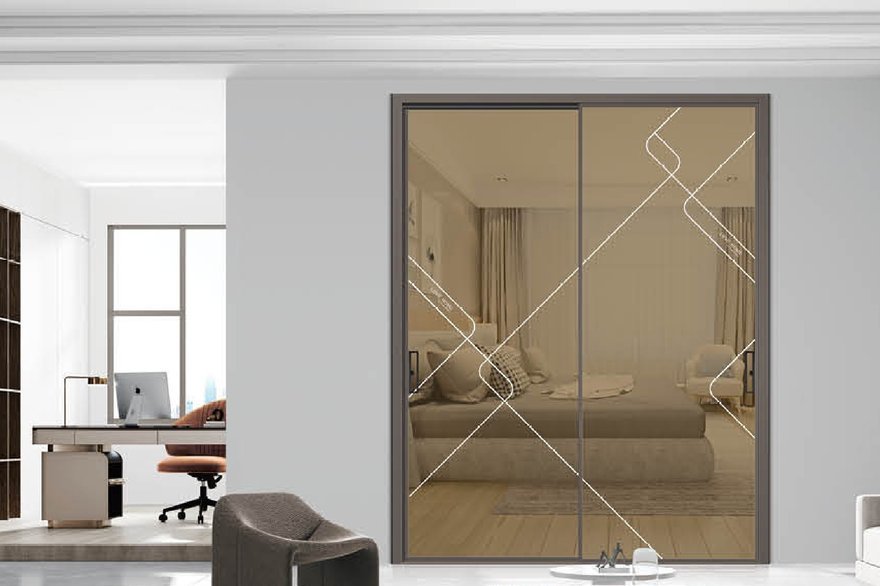

LS-60 detail
LS-60 — detail

Models and sizes

Every LS-60 ships as one of the configurations below — specify by model code in your window schedule and it quotes line by line.

LS-60 2P

  • Up to 4,800 mm opening · 2 leaves
  • 10–16 mm tempered or laminated

LS-60 3P

  • Up to 6,000 mm opening · 3 leaves
  • 10–16 mm IGU

LS-60 4P

  • Up to 7,200 mm · 3 sliding + fixed centre
  • 10–16 mm laminated

LS-60 CORNER

  • Corner glazing return, structural silicone
  • Laminated low-E IGU

LS-60 VENT

  • Micro-vent fixed panel option
  • 10–16 mm tempered

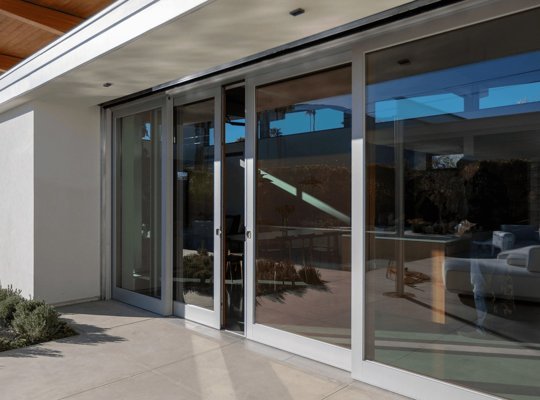

LS-60 configurations in place
LS-60 — configurations in place

Specifications

Profile system
75 / 139 / 207 mm thermal-break aluminium, 2.0–4.0 mm wall
Maximum opening
6,000 mm single track, up to 4 leaves
Sash capacity
Up to 300 kg per leaf
Glazing
8–16 mm panes, up to 6+27A+6 double IGU, tempered or laminated
Track
50 mm stepped track, drainage integrated
Threshold
Flush, barrier-free (DIN 18040 compliant option)
Hardware
Multi-point locking, vent-height integrated grip
Finishes
Anodised, powder-coated, RAL on request, wood-grain film
Standards
Tested to EN 14351-1, EN 13830, EN 16005; AS 1288 glass option
LS-60 profile and glazing detail
LS-60 — profile and glazing detail

Material & craft

The layers held to specification on every LS-60 unit — the section drawing above, written out.

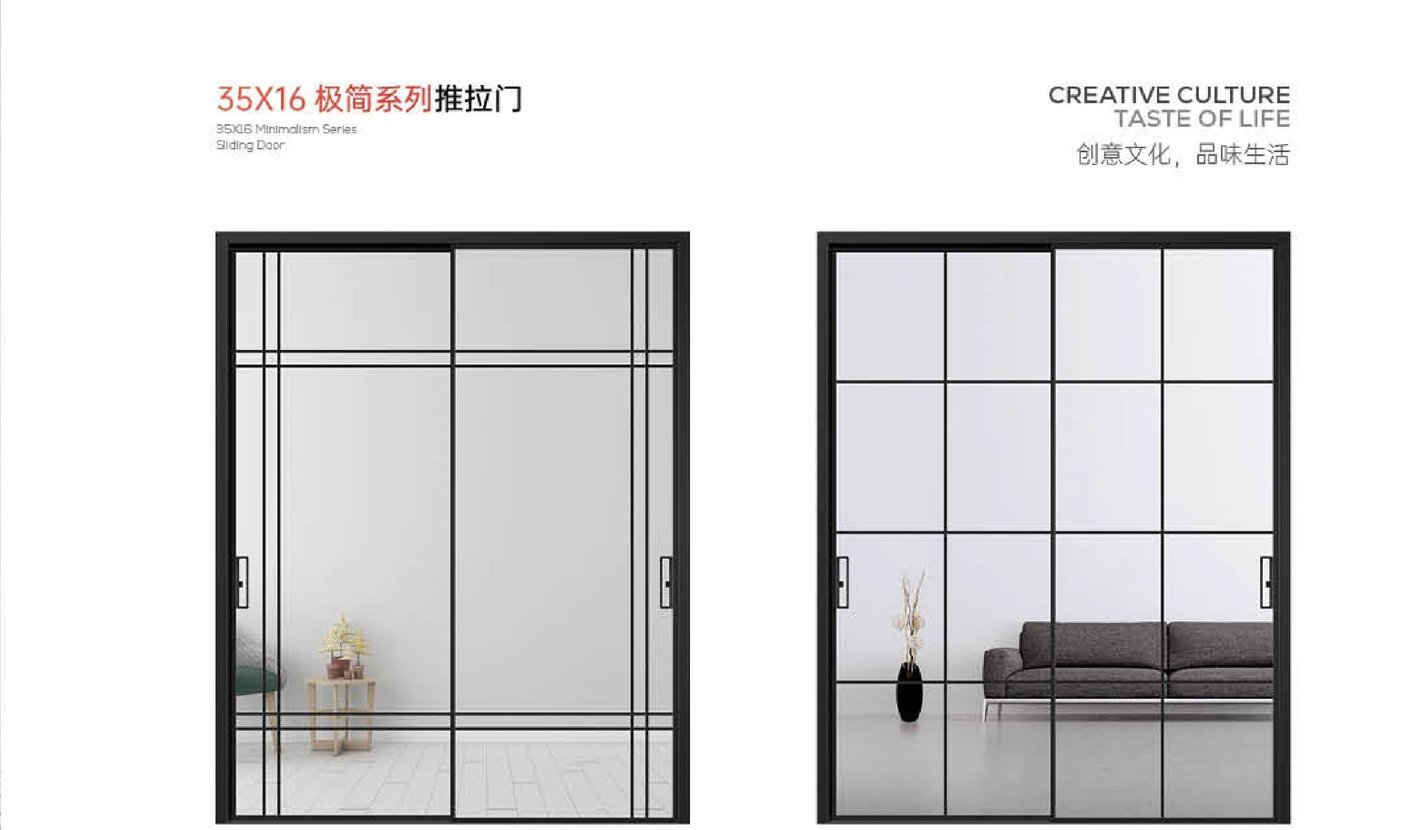

Sash & bearing line

Sash & bearing line

Leaves lift on roller bearings before they glide — a 300 kg sash moves on one hand. The bearing run is the load path; the track only guides it.

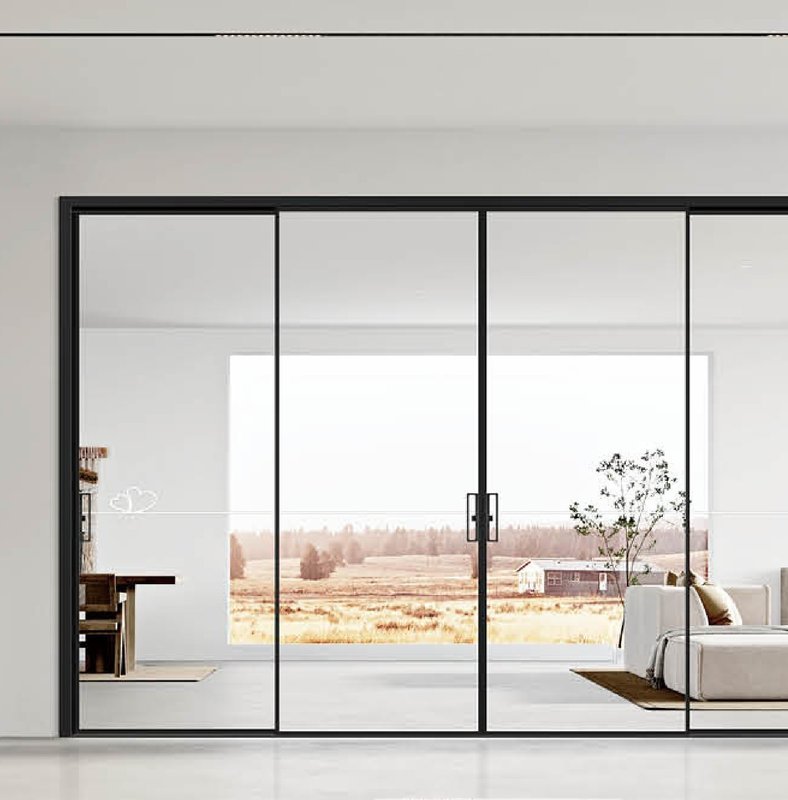

Frame & threshold

Frame & threshold

Multi-chamber 6063-T5 on the 70/75 mm platform with the PA66 thermal break; the flush barrier-free threshold carries concealed drainage behind a continuous gasket line.

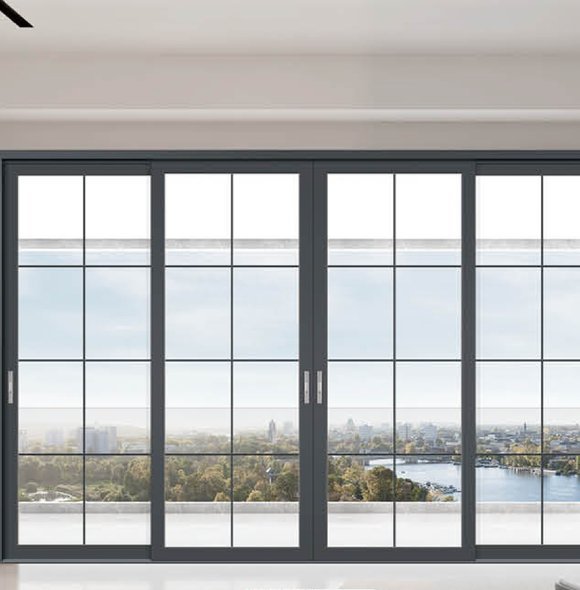

Glazing & hardware

Glazing & hardware

10–16 mm tempered, laminated or IGU per model, marine-grade hardware on the coastal schedule, and the vent-height integrated grip keeps the sash face clean.

What it's worth to you

Lift & Slide Doors installed on a residential elevation

A 15-year warranty on the frame and hardware, counted from the loading report — the document that ships in the crate.

Four-leaf walls to 7,200 mm on one platform: fixed centre, sliding leaves and the corner return quote as one line in the schedule.

Factory-assembled and pre-glazed: the site cuts fixings and levels, not sashes.

Specify Lift & Slide Doors

Send the project location, the opening sizes and the finish. Drawings, window schedules or a specification can be attached — quoting is done against the drawings, not a price list.

Request a quotation

Fields marked * are required. Drawings, CAD or a window schedule can be attached — up to 5 MB.

Products of interest
Lift & Slide Doors
Attach drawing / schedule (dwg, pdf, xls — max 5 MB)

Guaranteed response within 24 hours, every inquiry. No price lists are shared outside the quotation.

Where it is specified

The sites we build this system for, and what the schedule changes in each one.

Villas and townhouses

The garden wall that disappears — one large panel instead of three door leaves.

Resort and hotel terraces

High traffic, daily operation; the bearing system is rated for it.

Hospitality dining rooms

Bar and dining zones opened fully to the pool or terrace at service.

Garden-facing interiors

Living rooms where the floor line must stay continuous across the threshold.

Coastal specifications

Salt-fog hardware and coating schedule for exposed elevations.

Options and finishes

Maximum opening
6,000 mm single track, up to 4 leaves
Sash capacity
Up to 300 kg per leaf
Glazing
8–16 mm panes, up to 6+27A+6 double IGU, tempered or laminated
Track
50 mm stepped track, drainage integrated
Threshold
Flush, barrier-free (DIN 18040 compliant option)
Hardware
Multi-point locking, vent-height integrated grip
Finishes
Anodised, powder-coated, RAL on request, wood-grain film

Finish

Anodised Natural

Anodised Silver

Anthracite · RAL 7016

Graphite · RAL 7024

Jet Black · RAL 9005

Traffic White · RAL 9016

Cream · RAL 1015

Champagne · RAL 1019

Ash Natural

Walnut Dark

Bronze

Copper

View all finishes

Design features

Flush barrier-free threshold (DIN 18040 option)

Vent-height integrated grip — no protruding handle

Sashes lift on roller bearings; 300 kg moves on one hand

Concealed drainage with a continuous gasket line

Fixed centre leaf available for four-leaf walls

Marine-grade hardware for coastal specifications

Glass build

Two choices set what the glass does in a LS-60: which coating is on it, and what fills the cavity. The coating sets the solar figure. The gas moves the U-value and leaves the solar figure where it was — which is why the two are decided separately. The values below are published by the glass manufacturers for the build named; they are centre-of-glass figures, and the whole-window value for a configuration is read from the report that covers it.

BuildSHGCU, centre of glassWhere it is chosen
LoE-180, argon0.690.26High solar gain, cold climate
LoE-272, argon0.410.25Balanced, the usual default
LoE-366, argon0.270.24Solar control, west and south glass
LoE-366 with LoE-i89 on #4, argon0.270.20Solar control with the lowest U-value

NFRC centre-of-glass values for a 3/4 in two-pane unit with 3 mm lites and a 13 mm argon cavity. The spacer is the third lever and behaves differently again: it works at the edge of the unit, so it shows in the whole-window value rather than here.

Full glass performance tables, including air against argon and EN 673 values →

Buying & delivery

The commercial terms behind the LS-60 — minimum order, quotation, payment, packing and warranty — are the same on every quotation and sit on the commercial terms for a full-height opening. Buying to resell, or to fabricate the line yourself? how we supply window fabricators covers the supplier view of the same schedule.

Request a quote for this system
Lead time
35–45 days from approved shop drawings. Assembly, glazing and quality control sit inside the quoted lead time, not on top of it.
Standards on this system
Tested to EN 14351-1 and EN 13830, with EN 16005 on the large-opening configurations and an AS 1288 glass option. In South Africa the glazing assembly answers SANS 613 for wind and impact loads, water penetration and air leakage, with the Performance Test Certificate issued per project against the configured model. Installation runs to SANS 10137, and the flush threshold detail is set at shop-drawing stage.Source documents: EN 14351-1·AS 1288:2015·SANS 613·SANS 10137
Documents and crating
Hardware, glass and track setting-out schedules ship in the shop drawing package, free, within three working days of approved architectural drawings. Crated corner-protected with desiccant; a loading report per bay and a packing list per crate. Test reports are issued on request.

Documentation

Data sheet

System specifications, model codes and glazing schedule, as a PDF.

Brochure

Full-range presentation for tender packs and client meetings.

CAD sections & BIM families

Section blocks and families for inclusion in project documentation.

Ask for it

Specification clauses

Draft specification text for the drawing package, per system.

Ask for it

RFQ template

The inquiry sheet our quote team needs to answer within 24 hours.

Open the downloads

Confirm before the order is placed

Six items hold up an order on the LS-60 more often than anything else. None of them is decided here; each one has to be settled on the project side before the drawing set is frozen.

Rough opening, not frame size

Confirm the structural opening and the reveal build-up. The frame is ordered to the approved drawing, and the drawing is what the quotation is built from.

The opening is quoted before the render and the closing detail, then the reveal takes back the clearance.

Glass build

Confirm pane thickness, coating, spacer and cavity gas as one line. The tested configuration is the one the report covers.

Glass specified by thickness alone. The coating, spacer and gas move the U-value and the SHGC independently.

Operation and handing

Confirm the opening direction, the handing and the number of leaves, and say which side the handing is read from.

Handing recorded from the inside on one schedule and the outside on another.

Finish

Confirm the RAL or anodising grade, and whether the address needs a marine-grade schedule.

The finish is picked from a screen, and the coastal requirement is raised after production has started.

Hardware

Confirm handle type, locking point count, and whether the market requires key-operated locking.

Hardware assumed standard; the site then needs keyed-alike cylinders that were never on the order.

Documents with the shipment

Confirm which reports and declarations travel with the crate. A certificate is issued per configuration, not per product family.

Test documentation requested after shipment, when the report for that configuration has to be re-issued.

Threshold and floor build-up

Confirm the finished floor level and whether a flush, barrier-free threshold is required.

The threshold is decided on site, after the frame has been extruded to a standard sill.

Who confirms each part

No single party holds the whole decision. The drawing set is the one place they meet.

Buyer or developer

Opens the order: the standard the project has to meet, and the market it ships to.

Designer or architect

Sets the configuration: sizes, operation, finish and the glass build.

Structural engineer

Where the market requires it, sets the wind load the opening is rated to.

Factory

Confirms what can be built to that drawing, and issues the report for the configuration.

Everything else on the commercial side — minimum order, quotation, payment, packing and warranty — is the same on every order and sits on the commercial terms page.

Compare with the other door systems

Every system in this category on one table — the platform it shares, the opening it carries and the glazing it takes. Figures come from each system record, not retyped here.

7 door systems in the catalogue
CodeSystemPlatformGlazing options
LS-60Lift & Slide Doors — this system10–16 mm tempered or laminated
BF-40Bi-Fold Doors8–16 mm tempered
SD-50Sliding Patio Doors8–20 mm tempered or IGU
FD-60French Doors8–19 mm tempered or IGU
PV-75Pivot Doors19–25 mm laminated or IGU
SC-40Screen DoorsNo glazing — mesh screen door
ED-90Entry DoorsNo glazing — laminated core leaf

Frequently asked

Up to 300 kg with a 3,300 × 2,700 mm glazing area on the 75 mm system. Larger panels are engineered as multi-leaf assemblies with a fixed centre.

Other systems on the same platform

All systems
Four-panel bi-fold door folded open in the Foshan showroom

BF-40

Bi-Fold Doors

8-panel bi-fold · 75/90 mm profile · full glass

Tall French door in a lit corridor

FD-60

French Doors

Double-leaf hinged · full-glass sash · multi-point lock

Pivot door units ranged along the showroom wall

PV-75

Pivot Doors

Oversized entrance pivot · up to 2,100 × 3,000 mm

Specify LS-60 for your project

Request a quote

The 6,000 mm barrier-free lift-slide configuration is quoted unit by unit, within 24 hours.

Prefer to talk it through?

Send a drawing or a one-line brief on WhatsApp.

+86 177 0868 3991 — quotation within 24 hours, shop drawings free in 3 working days.
