Glass Railings

GR-100 — Tempered laminated · post-free · floor or wall channel

Questions on this system — sizes, glazing, lead time?

Ask on WhatsApp
Frameless glass balustrade and screen assembled in the workshop

GR-100

The view should not have to go through a post.

Tempered laminated · post-free · floor or wall channel

Configurations
8
Glass options
6
Lead time
30–40 days
Warranty
15 yr

Configurations

8

Glass options

6

Lead time

30–40 days

Warranty

15 yr

Both documents are free — quoted against your project within 24 hours.

123

GR-100 frame section, thermal-break build. Photographed section, hardware and installation detail below.

What the section drawing decides

High-end custom is decided in the section drawing, not the brochure. These four layers are held to specification on every GR-100 unit we ship.

01

Post-free by design

The load runs into a floor channel or a wall channel, which is what lets the view run past the handrail line.

02

Channel type decides the detail

Floor channel for a balcony edge, wall channel where the glass returns to structure. Both are post-free.

03

12-19 mm tempered laminated

Low-iron is the option where the view is the point. Panels reach 1,800 mm wide and 1,100 mm high.

04

AS 1288 and EN 14449 glass

Structural adequacy is quoted per project. Handrail is none, an aluminium profile or a timber cap.

Technical detail

The section, the hardware and the fixings — photographed, not rendered. This is the level of detail your drawing office specifies against and your site crew installs to, on every unit that leaves the line.

01

Profile cross-section

Post-free by design: the load runs into a floor channel or a wall channel, which is what lets the view run past the handrail line. A floor channel serves a balcony edge, a wall channel where the glass returns to structure.

Glass

12–19 mm tempered laminated

Fixing

Floor channel or wall channel

Posts

None

Panels

Up to 1,800 × 1,100 mm

Cut aluminium profile sections held in a gloved hand beside a PA66 GF25 thermal break sample
Profile sections cut open: the thermal break, the chambers and the glazed edge read as three separate things.
Thermal break bar visible in the window frame cross section
The continuous PA66 break bar isolates the outer and inner aluminium.
Multi-chamber aluminium profile cross section with the insulation bar cut through
Chambers in the profile cross section — stiffness and drainage run through the cavity layout, not the wall thickness alone.
Thermally broken aluminium profile with the polyamide bridge
The polyamide bridge breaks the conductive path that would otherwise run across the frame.
Profile cross sections and a glazed edge on the showroom display rack
Sections on the same platform, sized for the leaf load and the threshold.
Thermal break bar detail on the extrusion line
Thermal break bar, second detail — continuous PA66 from the extrusion line.
02

Hardware

Handrail is none, an aluminium profile or a timber cap — chosen for the sightline rather than for the connection. Edge is polished, bevelled or a mechanical channel.

Handrail

None / aluminium profile / timber cap

Edge

Polished, bevel or channel

Low-iron

Option where the view is the point

Check

Structural adequacy per project

Multi-point locking bolt points on a door leaf edge
Multi-point locking — the handle drives bolt points top, bottom and on the meeting stile, not one edge.
Window handle with base plate and strike set and fixing screws
Handle, base plate and strike set — the full set, fitted and cycled before dispatch.
Dark lever handle on a white door leaf
Key-operated handle for ground-floor and security specifications.
Metal lever handle catching the light on a timber door
Metal finish for clean, high-traffic interior positions.
Steel entrance door with a multi-point lock and keypad
Strike and fixings match the handle set; nothing is improvised on site.
Handle sets laid out for the fitting line
Every handle set is matched to the sash before the unit is built.
Gloved hands fitting a corner bracket and hardware into an aluminium profile
Fitted on the line, not on site — the corner bracket and its fasteners go in as one operation.
Corner bracket and hardware components held in a gloved hand
The corner bracket is what ties the joint together; it is cut and drilled to match the profile it drives.
03

Installation

Factory-assembled and pre-glazed, so the tolerance work is done under a roof. On site the build is a three-zone detail — air, insulation, weatherproofing — and every crate arrives with the install guide and the sealant schedule for that market.

Arrives

Factory-assembled

Detail

3-zone: air / insulation / water

Guide

Per-crate install sheet

Sealant

Scheduled per market

Ivy-clad elevation with the window openings left in view
The opening condition on a real elevation — each layer does one job and the details are not mixed.
Gasket line being run into the sash profile
Every glazed unit is sealed along the gasket line before it leaves the shop.
Extruded gasket stock racked in the factory store
Gasket is stocked as a schedule, not a habit — the compound and the section are named per market.
The same gasket run seen across the line
Pre-treatment and powder coat — every profile runs the surface line before assembly.
Machinist cutting a component on the workshop line
The workshop line — components cut, machined and checked at the quality gate, before crating.
Die casting press forming the hardware components
Hardware is cast in-house, so the cam and gear match the profile it drives.

The system in short

A glass railing is a balustrade of tempered laminated glass panels fixed in floor or wall channels with no intermediate posts, so the view runs unbroken. GR-100 runs 12–19 mm units up to 1,800 mm wide and 1,100 mm high, low-iron available, configured to AS 1288 / EN 14449 for staircases, balconies and pool edges.

Post-free glass railing in 12–19 mm tempered laminated units, fixed in floor or wall channels, panels up to 1,800 mm wide and 1,100 mm high. Specified with staircases, balconies and pool edges across the residential range, low-iron glass available where the tint of standard float shows.

Panels are produced on the same glass line as the window range, with the edge treatment — polished, bevel or mechanical channel — fixed at drawing stage. Curved units take a radius that the staircase geometry sets, on the same production line.

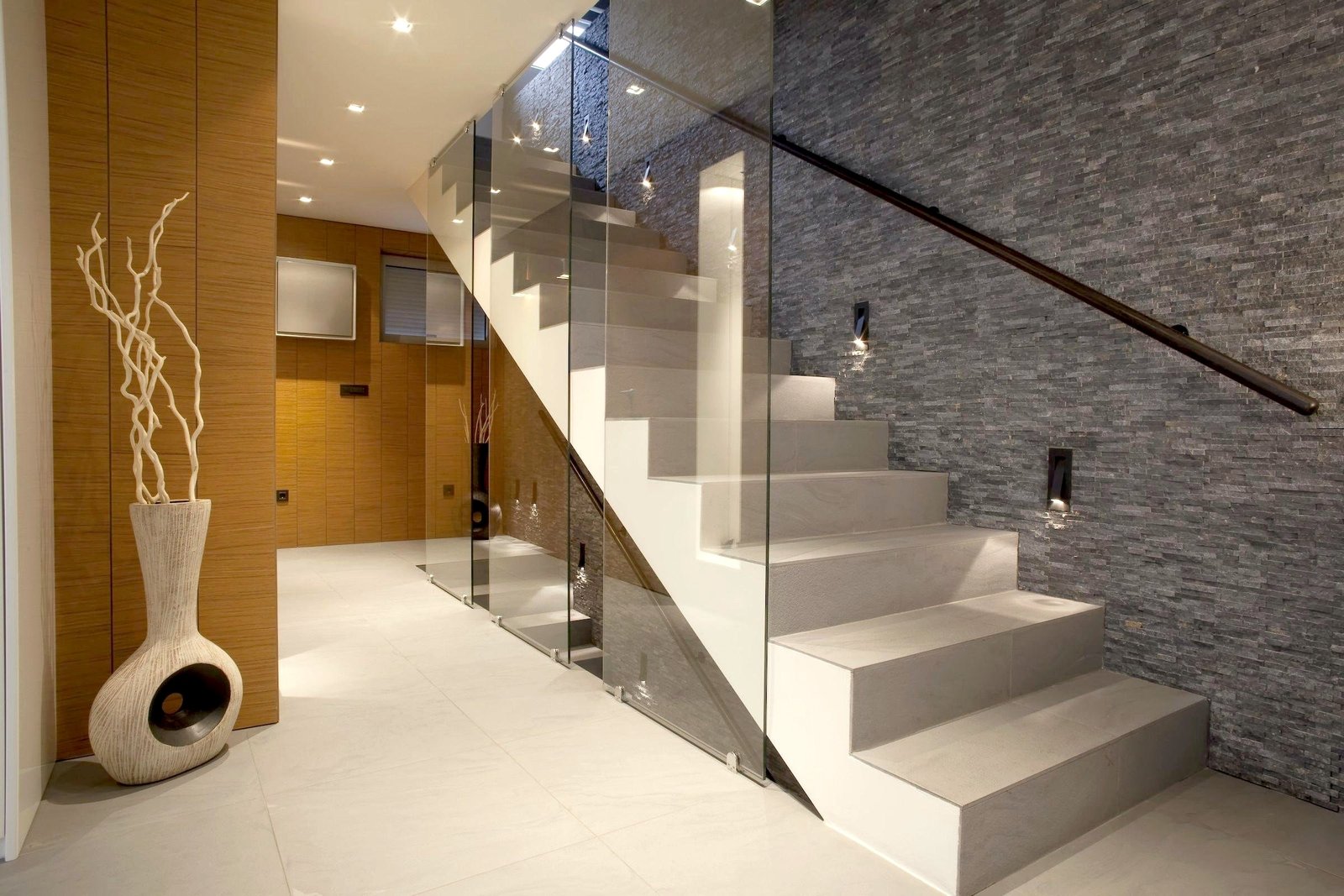

GR-100 installed view
GR-100 — Glass Railings
GR-100 detail
GR-100 — detail

Models and sizes

Every GR-100 ships as one of the configurations below — specify by model code in your window schedule and it quotes line by line.

GR-100 FLOOR

  • Floor-channel fixing
  • 15–19 mm laminated

GR-100 WALL

  • Wall-channel fixing
  • 12–15 mm laminated

GR-100 CURVED

  • Curved panel, radius at drawing
  • Laminated, heat-strengthened

GR-100 POOL

  • Pool edge specification
  • 19 mm low-iron laminated

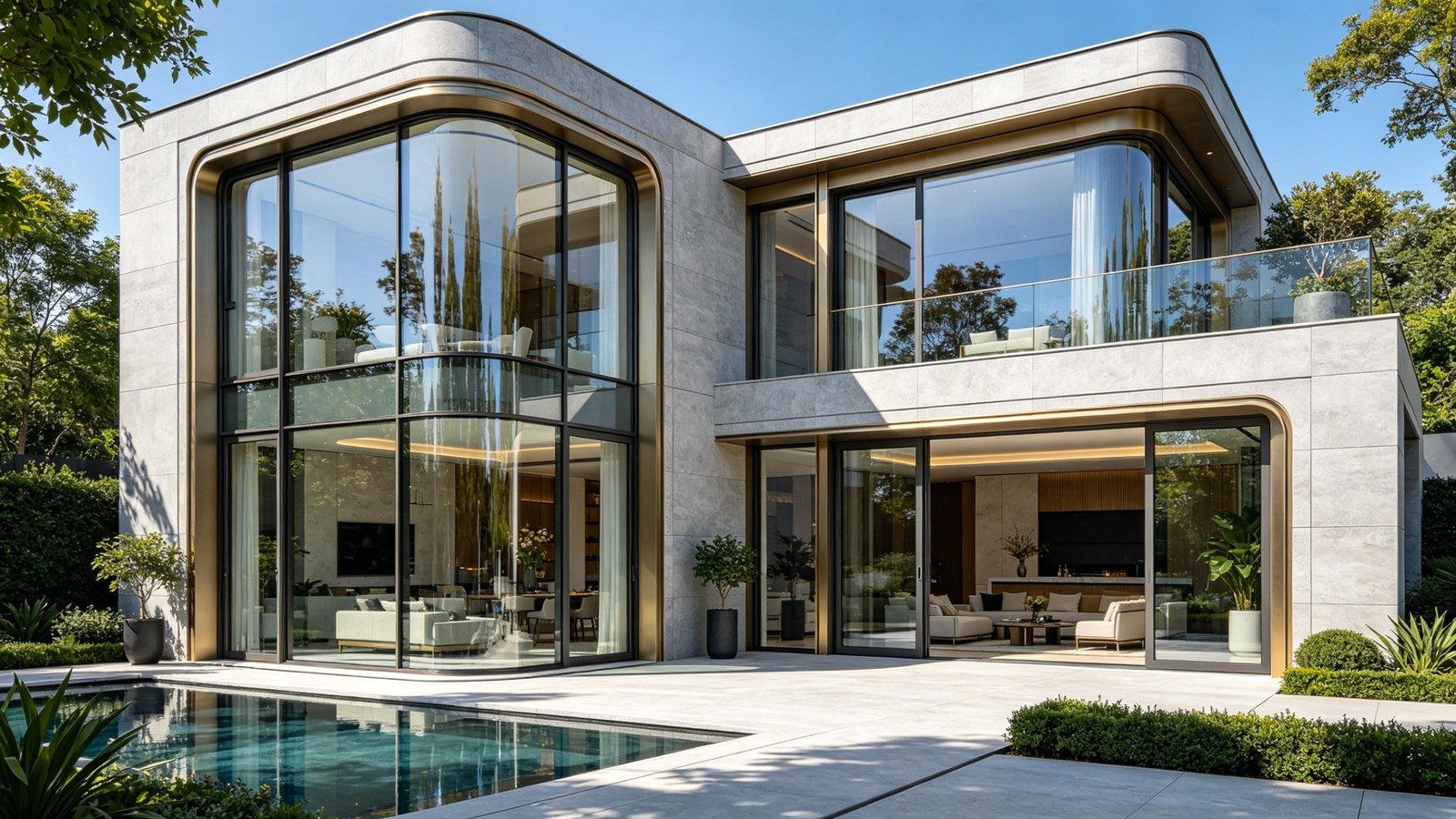

GR-100 configurations in place
GR-100 — configurations in place

Specifications

Glass
12–19 mm tempered laminated, low-iron option
Fixing
Floor channel or wall channel, post-free
Handrail
None, aluminium profile or timber cap
Panels
Up to 1,800 mm wide, 1,100 mm high
Edge
Polished, bevel or mechanical channel
Standards
AS 1288 / EN 14449 glass, structural per project
GR-100 profile and glazing detail
GR-100 — profile and glazing detail

Material & craft

The layers held to specification on every GR-100 unit — the section drawing above, written out.

Glass unit

Glass unit

12–19 mm tempered laminated, low-iron available, panels to 1,800 mm wide and 1,100 mm high, on the AS 1288 / EN 14449 configuration.

Fixing

Fixing

Floor channel or wall channel, post-free — polished, bevel or mechanical channel edge, with an optional aluminium profile or timber cap.

Curved line

Curved line

Curved units run on the same production line; the radius comes from the drawing, not from a catalogued bend.

What it's worth to you

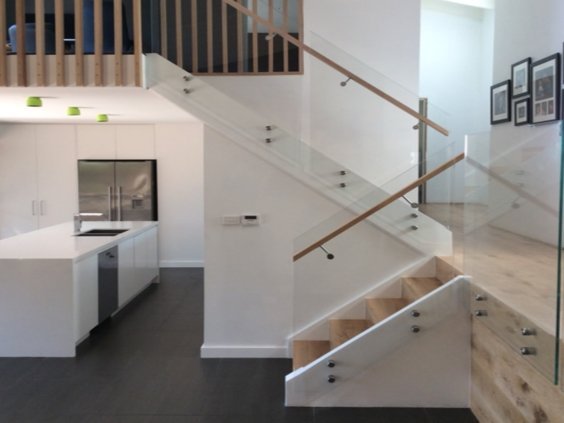

Glass Railings installed on a residential elevation

The view runs unbroken through the whole flight — no post in sight on stairs, balconies or pool edges.

The pool edge takes the 19 mm low-iron schedule on the same 15-year warranty as the window range.

Post-free fixing keeps the balcony face clean and the installation sheet short — channel, glass, one line per bay.

Specify Glass Railings

Send the project location, the opening sizes and the finish. Drawings, window schedules or a specification can be attached — quoting is done against the drawings, not a price list.

Request a quotation

Fields marked * are required. Drawings, CAD or a window schedule can be attached — up to 5 MB.

Products of interest
Glass Railings
Attach drawing / schedule (dwg, pdf, xls — max 5 MB)

Guaranteed response within 24 hours, every inquiry. No price lists are shared outside the quotation.

Where it is specified

The sites we build this system for, and what the schedule changes in each one.

Staircases

The view runs through the whole flight, no post in sight.

Balconies

Floor-channel fixing keeps the balcony face clean.

Pool edges

GR-100 POOL takes the 19 mm low-iron schedule.

Loft and mezzanine landings

Light passes through the railing into the lower room.

Glass-house extensions

The railing joins the fixed glazing on one visual line.

Options and finishes

Glass
12–19 mm tempered laminated, low-iron option
Fixing
Floor channel or wall channel, post-free
Handrail
None, aluminium profile or timber cap
Panels
Up to 1,800 mm wide, 1,100 mm high
Edge
Polished, bevel or mechanical channel

Finish

Anodised Natural

Anodised Silver

Anthracite · RAL 7016

Graphite · RAL 7024

Jet Black · RAL 9005

Traffic White · RAL 9016

Cream · RAL 1015

Champagne · RAL 1019

Ash Natural

Walnut Dark

Bronze

Copper

View all finishes

Design features

12–19 mm tempered laminated, low-iron option

Floor channel or wall channel, post-free

Panels to 1,800 mm wide, 1,100 mm high

Polished, bevel or mechanical channel edge

Optional aluminium profile or timber cap

Curved units on the same production line

Glass build

Two choices set what the glass does in a GR-100: which coating is on it, and what fills the cavity. The coating sets the solar figure. The gas moves the U-value and leaves the solar figure where it was — which is why the two are decided separately. The values below are published by the glass manufacturers for the build named; they are centre-of-glass figures, and the whole-window value for a configuration is read from the report that covers it.

BuildSHGCU, centre of glassWhere it is chosen
LoE-180, argon0.690.26High solar gain, cold climate
LoE-272, argon0.410.25Balanced, the usual default
LoE-366, argon0.270.24Solar control, west and south glass
LoE-366 with LoE-i89 on #4, argon0.270.20Solar control with the lowest U-value

NFRC centre-of-glass values for a 3/4 in two-pane unit with 3 mm lites and a 13 mm argon cavity. The spacer is the third lever and behaves differently again: it works at the edge of the unit, so it shows in the whole-window value rather than here.

Full glass performance tables, including air against argon and EN 673 values →

Buying & delivery

The commercial terms behind the GR-100 — minimum order, quotation, payment, packing and warranty — are the same on every quotation and sit on the commercial terms for balustrade glass. Buying to resell, or to fabricate the line yourself? how balustrade glass is supplied covers the supplier view of the same schedule.

Request a quote for this system
Lead time
30–40 days from approved shop drawings. Assembly, glazing and quality control sit inside the quoted lead time, not on top of it.
Standards on this system
Glass configured to AS 1288 and EN 14449, with the structural calculation issued per project. Balustrade impact and line loads follow SANS 10160-2, and the glazing assembly answers SANS 613. A toughened pane is the default unless the drawing supports the panel on all four sides; the report is issued against the configured panel.Source documents: AS 1288:2015·SANS 10160-2·SANS 613
Documents and crating
The structural calculation, the channel setting-out and the panel schedule ship in the shop drawing package. Panels are crated vertically on edge, not flat. Test reports are issued on request.

Documentation

Data sheet

System specifications, model codes and glazing schedule, as a PDF.

Brochure

Full-range presentation for tender packs and client meetings.

CAD sections & BIM families

Section blocks and families for inclusion in project documentation.

Ask for it

Specification clauses

Draft specification text for the drawing package, per system.

Ask for it

RFQ template

The inquiry sheet our quote team needs to answer within 24 hours.

Open the downloads

Confirm before the order is placed

Six items hold up an order on the GR-100 more often than anything else. None of them is decided here; each one has to be settled on the project side before the drawing set is frozen.

Rough opening, not frame size

Confirm the structural opening and the reveal build-up. The frame is ordered to the approved drawing, and the drawing is what the quotation is built from.

The opening is quoted before the render and the closing detail, then the reveal takes back the clearance.

Glass build

Confirm pane thickness, coating, spacer and cavity gas as one line. The tested configuration is the one the report covers.

Glass specified by thickness alone. The coating, spacer and gas move the U-value and the SHGC independently.

Operation and handing

Confirm the opening direction, the handing and the number of leaves, and say which side the handing is read from.

Handing recorded from the inside on one schedule and the outside on another.

Finish

Confirm the RAL or anodising grade, and whether the address needs a marine-grade schedule.

The finish is picked from a screen, and the coastal requirement is raised after production has started.

Hardware

Confirm handle type, locking point count, and whether the market requires key-operated locking.

Hardware assumed standard; the site then needs keyed-alike cylinders that were never on the order.

Documents with the shipment

Confirm which reports and declarations travel with the crate. A certificate is issued per configuration, not per product family.

Test documentation requested after shipment, when the report for that configuration has to be re-issued.

Drainage and roof load

Confirm the drainage path and the load the supporting structure carries.

The roof load is assumed by the frame supplier and by the builder on opposite assumptions.

Who confirms each part

No single party holds the whole decision. The drawing set is the one place they meet.

Buyer or developer

Opens the order: the standard the project has to meet, and the market it ships to.

Designer or architect

Sets the configuration: sizes, operation, finish and the glass build.

Structural engineer

Where the market requires it, sets the wind load the opening is rated to.

Factory

Confirms what can be built to that drawing, and issues the report for the configuration.

Everything else on the commercial side — minimum order, quotation, payment, packing and warranty — is the same on every order and sits on the commercial terms page.

Compare with the other glass space systems

Every system in this category on one table — the platform it shares, the opening it carries and the glazing it takes. Figures come from each system record, not retyped here.

4 glass space systems in the catalogue
CodeSystemPlatformGlazing options
SR-200SunroomsFixed glass or polycarbonate
LP-120Louvered PergolasNo glazing — louvered roof
GR-100Glass Railings — this system15–19 mm laminated
SK-60SkylightsTempered low-E IGU

Frequently asked

For balustrade duty yes — laminated keeps the glass in place after impact, which is what the code asks for.

Other systems on the same platform

All systems
Glazed sunroom and terrace enclosure built on site

SR-200

Sunrooms

Aluminium frame · glass roof · up to 7 m span

High-level window over a glazed screen, showroom corner

SK-60

Skylights

Roof-integrated · thermal break · tilt ventilation option

Specify GR-100 for your project

Request a quote

The Tempered laminated configuration is quoted unit by unit, within 24 hours.

Prefer to talk it through?

Send a drawing or a one-line brief on WhatsApp.

+86 177 0868 3991 — quotation within 24 hours, shop drawings free in 3 working days.
