Pivot Doors

PV-75 — Oversized entrance pivot · up to 2,100 × 3,000 mm

Questions on this system — sizes, glazing, lead time?

Ask on WhatsApp
Pivot door units ranged along the showroom wall

PV-75

One leaf, two metres, opening on a point — the entrance as a statement.

Oversized entrance pivot · up to 2,100 × 3,000 mm

Configurations
8
Glazing options
6
Lead time
35–45 days
Warranty
15 yr

Configurations

8

Glazing options

6

Lead time

35–45 days

Warranty

15 yr

Both documents are free — quoted against your project within 24 hours.

123

PV-75 frame section, thermal-break build. Photographed section, hardware and installation detail below.

What the section drawing decides

High-end custom is decided in the section drawing, not the brochure. These four layers are held to specification on every PV-75 unit we ship.

01

2,100 x 3,000 mm at 400 kg

Leaf is carried by the pivot, so the size follows the bearing rating rather than the frame opening.

02

Centre or offset pivot

Floor and head bearings take the load; an offset pivot moves the swing clear of a wall return. Assisted-close damper is optional.

03

19-25 mm laminated or IGU

The thickness is set by the leaf span. Full-height hand-pull is integrated into the leaf.

04

Tested to EN 14351-1 and EN 16005

EN 16005 is the large-opening line that covers a leaf this size.

Technical detail

The section, the hardware and the fixings — photographed, not rendered. This is the level of detail your drawing office specifies against and your site crew installs to, on every unit that leaves the line.

01

Profile cross-section

Leaf at 2,100 × 3,000 mm and 400 kg, carried by the pivot rather than by hinges. The size of the leaf follows the bearing rating, not the frame opening.

Leaf

Up to 2,100 × 3,000 mm

Mass

400 kg

Pivot

Centre or offset

Bearings

Floor and head

Cut aluminium profile sections held in a gloved hand beside a PA66 GF25 thermal break sample
Profile sections cut open: the thermal break, the chambers and the glazed edge read as three separate things.
Thermal break bar visible in the window frame cross section
The continuous PA66 break bar isolates the outer and inner aluminium.
Multi-chamber aluminium profile cross section with the insulation bar cut through
Chambers in the profile cross section — stiffness and drainage run through the cavity layout, not the wall thickness alone.
Thermally broken aluminium profile with the polyamide bridge
The polyamide bridge breaks the conductive path that would otherwise run across the frame.
Profile cross sections and a glazed edge on the showroom display rack
Sections on the same platform, sized for the leaf load and the threshold.
Thermal break bar detail on the extrusion line
Thermal break bar, second detail — continuous PA66 from the extrusion line.
02

Hardware

Floor and head bearings take the load; the offset pivot moves the swing clear of a wall return. An assisted-close damper is optional on this line.

Bearings

Floor and head, load-bearing

Pivot

Centre or offset

Handle

Full-height hand-pull, integrated

Damper

Assisted-close, optional

Multi-point locking bolt points on a door leaf edge
Multi-point locking — the handle drives bolt points top, bottom and on the meeting stile, not one edge.
Window handle with base plate and strike set and fixing screws
Handle, base plate and strike set — the full set, fitted and cycled before dispatch.
Dark lever handle on a white door leaf
Key-operated handle for ground-floor and security specifications.
Metal lever handle catching the light on a timber door
Metal finish for clean, high-traffic interior positions.
Steel entrance door with a multi-point lock and keypad
Strike and fixings match the handle set; nothing is improvised on site.
Handle sets laid out for the fitting line
Every handle set is matched to the sash before the unit is built.
Gloved hands fitting a corner bracket and hardware into an aluminium profile
Fitted on the line, not on site — the corner bracket and its fasteners go in as one operation.
Corner bracket and hardware components held in a gloved hand
The corner bracket is what ties the joint together; it is cut and drilled to match the profile it drives.
03

Installation

Factory-assembled and pre-glazed, so the tolerance work is done under a roof. On site the build is a three-zone detail — air, insulation, weatherproofing — and every crate arrives with the install guide and the sealant schedule for that market.

Arrives

Factory-assembled

Detail

3-zone: air / insulation / water

Guide

Per-crate install sheet

Sealant

Scheduled per market

Ivy-clad elevation with the window openings left in view
The opening condition on a real elevation — each layer does one job and the details are not mixed.
Gasket line being run into the sash profile
Every glazed unit is sealed along the gasket line before it leaves the shop.
Extruded gasket stock racked in the factory store
Gasket is stocked as a schedule, not a habit — the compound and the section are named per market.
The same gasket run seen across the line
Pre-treatment and powder coat — every profile runs the surface line before assembly.
Machinist cutting a component on the workshop line
The workshop line — components cut, machined and checked at the quality gate, before crating.
Die casting press forming the hardware components
Hardware is cast in-house, so the cam and gear match the profile it drives.

The system in short

A pivot door is a single oversized leaf that turns on floor and head bearings instead of side hinges, carrying full-glass or solid panels up to 2,100 × 3,000 mm. PV-75 rates its bearings to 400 kg with centre or offset geometry, an assisted-close damper and a full-height hand-pull — the entrance-as-statement specification.

A centre or offset pivot for oversized entrance glazing. The pivot hardware carries up to 400 kg, so the leaf is full glass with a slim stile and a single full-height hand-pull, and the swing is damped on an assisted-close option.

The bearings take the full leaf load at floor and head, so the stile stays slim and the pulls stay long. The structural schedule ships in the shop drawing package — the leaf is a building element, not a door off the rack.

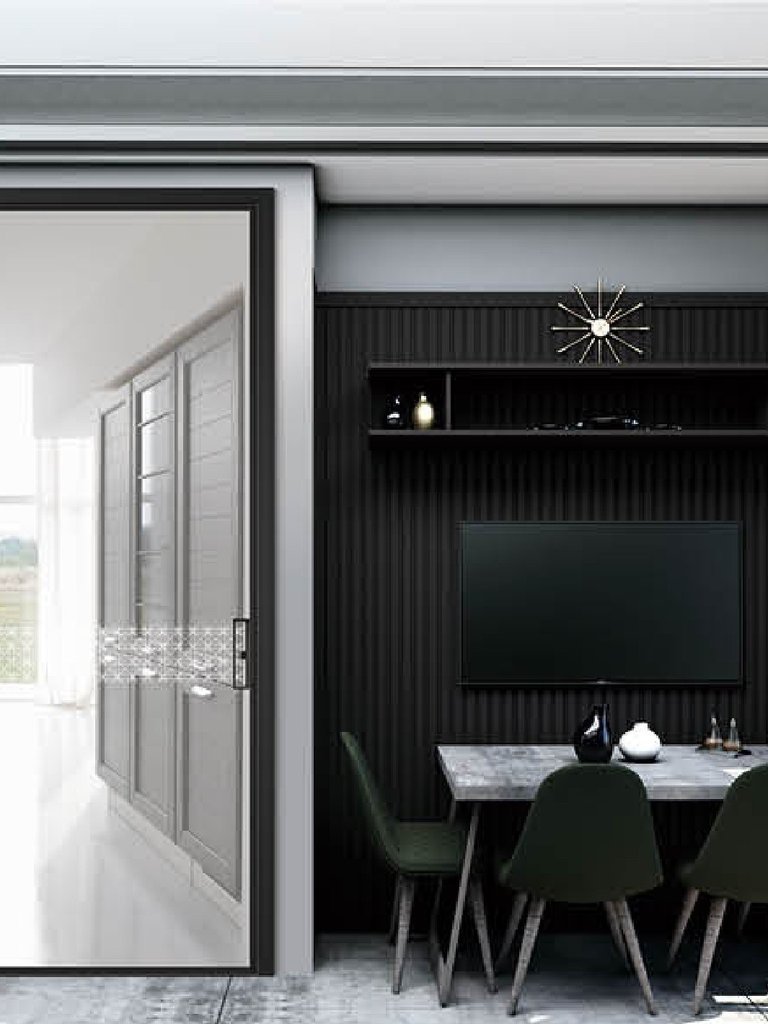

PV-75 installed view
PV-75 — Pivot Doors

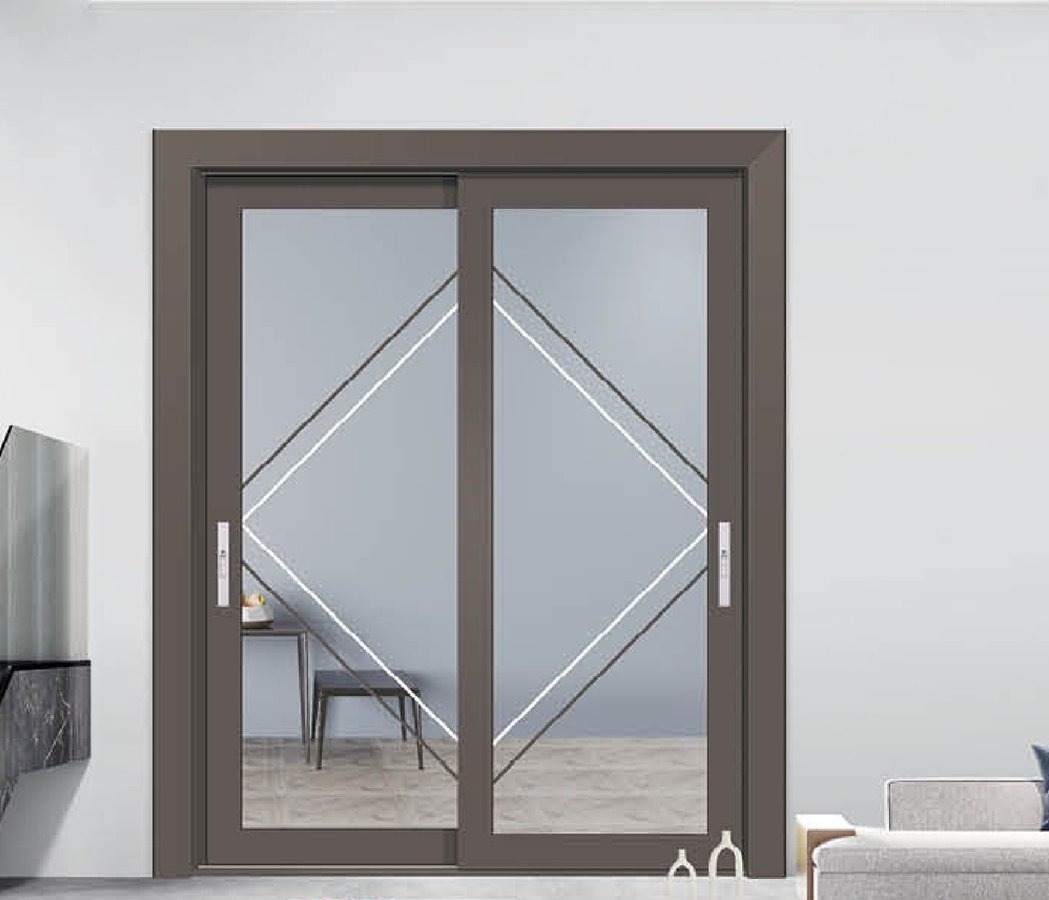

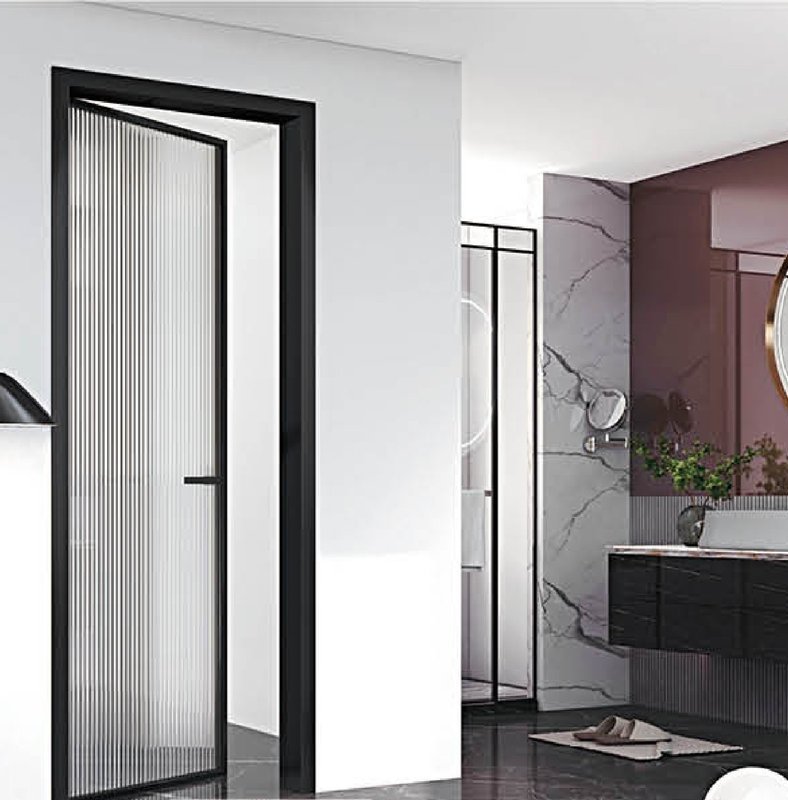

PV-75 detail
PV-75 — detail

Models and sizes

Every PV-75 ships as one of the configurations below — specify by model code in your window schedule and it quotes line by line.

PV-75 CENTRE

  • Centre pivot, full glass
  • 19–25 mm laminated or IGU

PV-75 OFFSET

  • Offset pivot, 1,000 mm clear
  • Laminated IGU

PV-75 SIDE

  • Pivot leaf + fixed sidelight
  • Laminated glass

PV-75 ACCESS

  • Accessibility configuration
  • Laminated IGU, damper

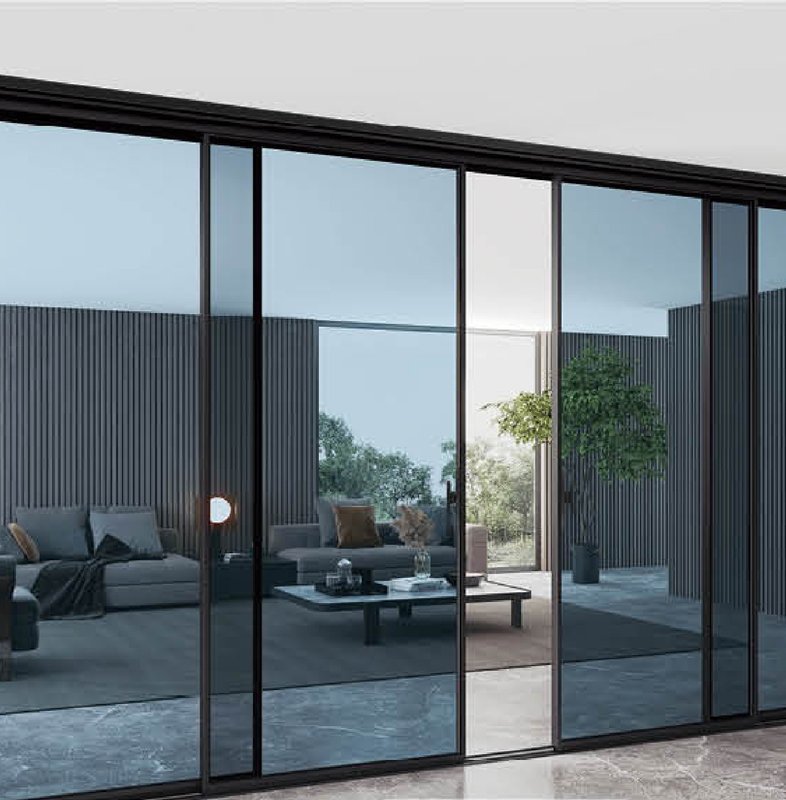

PV-75 configurations in place
PV-75 — configurations in place

Specifications

Leaf size
Up to 2,100 × 3,000 mm, 400 kg
Pivot
Centre or offset, floor and head bearings
Glazing
19–25 mm laminated or IGU
Handles
Full-height hand-pull, integrated
Operation
Assisted-close damper option
Standards
Tested to EN 14351-1, EN 16005
PV-75 profile and glazing detail
PV-75 — profile and glazing detail

Material & craft

The layers held to specification on every PV-75 unit — the section drawing above, written out.

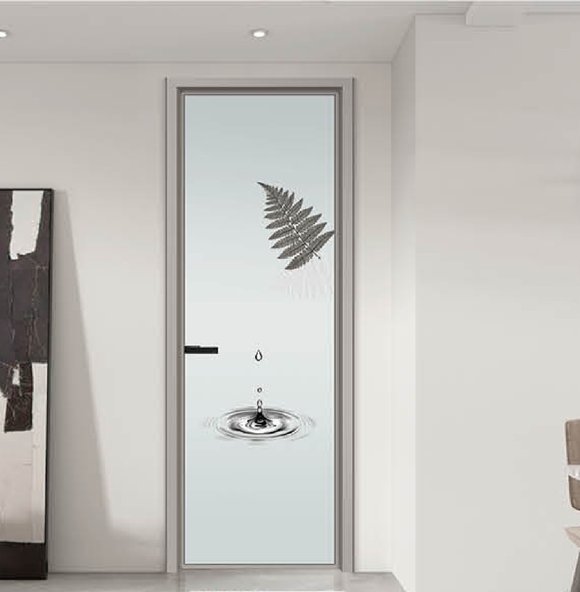

Bearings

Bearings

Floor and head bearings rated 400 kg, centre or offset geometry — the leaf turns on the bearing line, not on side hinges.

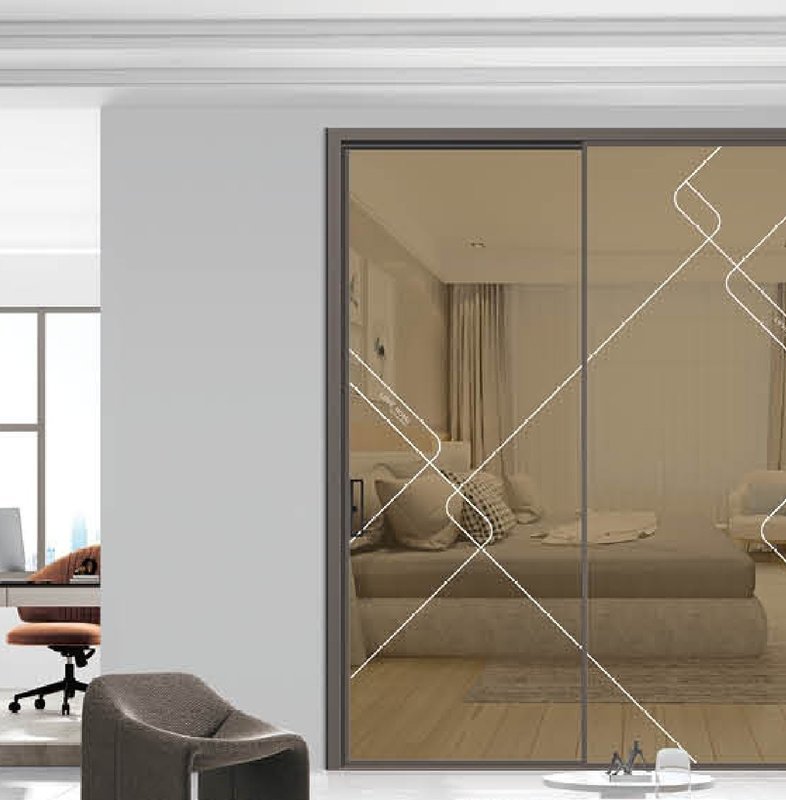

Leaf

Leaf

Full glass or solid, up to 2,100 × 3,000 mm; 19–25 mm laminated or IGU, with the structural schedule in the shop-drawing package.

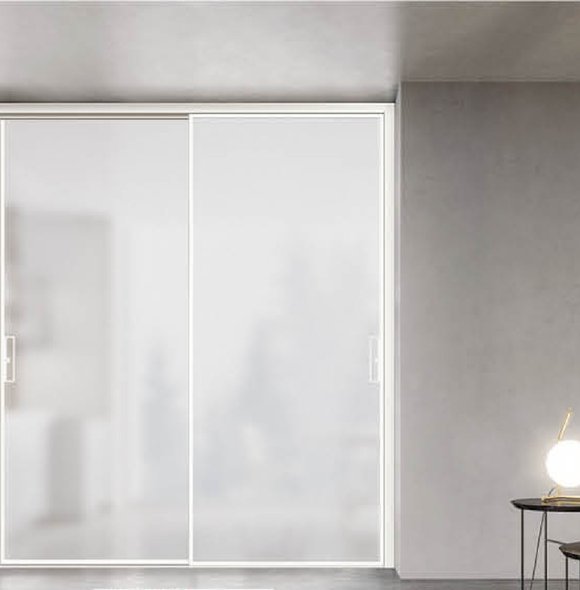

Closing

Closing

An assisted-close damper and a full-height integrated hand-pull; the offset geometry holds 1,000 mm of clear opening.

What it's worth to you

Pivot Doors installed on a residential elevation

The entrance as a statement: no hinge line in sight, the whole leaf is the door.

The damper does the closing for guests — the 2 m+ leaf arrives on schedule, not on effort.

Accessible entries keep the swing arc clear of the path; the same bearing line runs solid, glass or mixed leaves.

Specify Pivot Doors

Send the project location, the opening sizes and the finish. Drawings, window schedules or a specification can be attached — quoting is done against the drawings, not a price list.

Request a quotation

Fields marked * are required. Drawings, CAD or a window schedule can be attached — up to 5 MB.

Products of interest
Pivot Doors
Attach drawing / schedule (dwg, pdf, xls — max 5 MB)

Guaranteed response within 24 hours, every inquiry. No price lists are shared outside the quotation.

Where it is specified

The sites we build this system for, and what the schedule changes in each one.

Private villa entrances

The door is the artwork — the pivot keeps it clean.

Hotel and restaurant arrivals

2 m+ leaf with the damper doing the closing for guests.

Gallery and lobby entries

Full glass, full height, no hinge line in sight.

Accessible entries

Offset geometry keeps the arc clear of the path.

Statement interiors

The leaf can be solid timber, glass or a mix, on the same bearing.

Options and finishes

Leaf size
Up to 2,100 × 3,000 mm, 400 kg
Pivot
Centre or offset, floor and head bearings
Glazing
19–25 mm laminated or IGU
Handles
Full-height hand-pull, integrated
Operation
Assisted-close damper option

Finish

Anodised Natural

Anodised Silver

Anthracite · RAL 7016

Graphite · RAL 7024

Jet Black · RAL 9005

Traffic White · RAL 9016

Cream · RAL 1015

Champagne · RAL 1019

Ash Natural

Walnut Dark

Bronze

Copper

View all finishes

Design features

Leaf to 2,100 × 3,000 mm, 400 kg

Centre or offset pivot, floor and head bearings

Full-height integrated hand-pull

Assisted-close damper option

Structural schedule in the shop drawing package

Offset geometry to 1,000 mm clear opening

Glass build

Two choices set what the glass does in a PV-75: which coating is on it, and what fills the cavity. The coating sets the solar figure. The gas moves the U-value and leaves the solar figure where it was — which is why the two are decided separately. The values below are published by the glass manufacturers for the build named; they are centre-of-glass figures, and the whole-window value for a configuration is read from the report that covers it.

BuildSHGCU, centre of glassWhere it is chosen
LoE-180, argon0.690.26High solar gain, cold climate
LoE-272, argon0.410.25Balanced, the usual default
LoE-366, argon0.270.24Solar control, west and south glass
LoE-366 with LoE-i89 on #4, argon0.270.20Solar control with the lowest U-value

NFRC centre-of-glass values for a 3/4 in two-pane unit with 3 mm lites and a 13 mm argon cavity. The spacer is the third lever and behaves differently again: it works at the edge of the unit, so it shows in the whole-window value rather than here.

Full glass performance tables, including air against argon and EN 673 values →

Buying & delivery

The commercial terms behind the PV-75 — minimum order, quotation, payment, packing and warranty — are the same on every quotation and sit on the commercial terms for a 400 kg leaf. Buying to resell, or to fabricate the line yourself? how a heavy leaf is supplied covers the supplier view of the same schedule.

Request a quote for this system
Lead time
35–45 days from approved shop drawings. Assembly, glazing and quality control sit inside the quoted lead time, not on top of it.
Standards on this system
Tested to EN 14351-1 and EN 16005. As an entrance leaf the glazing is safety material to SANS 10400-N:2012 and SANS 1263-1; the assembly answers SANS 613, and installation runs to SANS 10137 with the pivot setting-out detail.Source documents: EN 14351-1·SANS 10400-N·SANS 1263-1·SANS 613·SANS 10137
Documents and crating
Hardware and glass schedules ship in the shop drawing package, free, within three working days of approved architectural drawings. The structural schedule for the pivot bearings ships in the same package. Test reports are issued on request.

Documentation

Data sheet

System specifications, model codes and glazing schedule, as a PDF.

Brochure

Full-range presentation for tender packs and client meetings.

CAD sections & BIM families

Section blocks and families for inclusion in project documentation.

Ask for it

Specification clauses

Draft specification text for the drawing package, per system.

Ask for it

RFQ template

The inquiry sheet our quote team needs to answer within 24 hours.

Open the downloads

Confirm before the order is placed

Six items hold up an order on the PV-75 more often than anything else. None of them is decided here; each one has to be settled on the project side before the drawing set is frozen.

Rough opening, not frame size

Confirm the structural opening and the reveal build-up. The frame is ordered to the approved drawing, and the drawing is what the quotation is built from.

The opening is quoted before the render and the closing detail, then the reveal takes back the clearance.

Glass build

Confirm pane thickness, coating, spacer and cavity gas as one line. The tested configuration is the one the report covers.

Glass specified by thickness alone. The coating, spacer and gas move the U-value and the SHGC independently.

Operation and handing

Confirm the opening direction, the handing and the number of leaves, and say which side the handing is read from.

Handing recorded from the inside on one schedule and the outside on another.

Finish

Confirm the RAL or anodising grade, and whether the address needs a marine-grade schedule.

The finish is picked from a screen, and the coastal requirement is raised after production has started.

Hardware

Confirm handle type, locking point count, and whether the market requires key-operated locking.

Hardware assumed standard; the site then needs keyed-alike cylinders that were never on the order.

Documents with the shipment

Confirm which reports and declarations travel with the crate. A certificate is issued per configuration, not per product family.

Test documentation requested after shipment, when the report for that configuration has to be re-issued.

Threshold and floor build-up

Confirm the finished floor level and whether a flush, barrier-free threshold is required.

The threshold is decided on site, after the frame has been extruded to a standard sill.

Who confirms each part

No single party holds the whole decision. The drawing set is the one place they meet.

Buyer or developer

Opens the order: the standard the project has to meet, and the market it ships to.

Designer or architect

Sets the configuration: sizes, operation, finish and the glass build.

Structural engineer

Where the market requires it, sets the wind load the opening is rated to.

Factory

Confirms what can be built to that drawing, and issues the report for the configuration.

Everything else on the commercial side — minimum order, quotation, payment, packing and warranty — is the same on every order and sits on the commercial terms page.

Compare with the other door systems

Every system in this category on one table — the platform it shares, the opening it carries and the glazing it takes. Figures come from each system record, not retyped here.

7 door systems in the catalogue
CodeSystemPlatformGlazing options
LS-60Lift & Slide Doors10–16 mm tempered or laminated
BF-40Bi-Fold Doors8–16 mm tempered
SD-50Sliding Patio Doors8–20 mm tempered or IGU
FD-60French Doors8–19 mm tempered or IGU
PV-75Pivot Doors — this system19–25 mm laminated or IGU
SC-40Screen DoorsNo glazing — mesh screen door
ED-90Entry DoorsNo glazing — laminated core leaf

Frequently asked

The pivot arc keeps the path clear; a 1,000 mm clear opening is achievable with offset pivot geometry.

Other systems on the same platform

All systems
Four-panel bi-fold door folded open in the Foshan showroom

BF-40

Bi-Fold Doors

8-panel bi-fold · 75/90 mm profile · full glass

Tall French door in a lit corridor

FD-60

French Doors

Double-leaf hinged · full-glass sash · multi-point lock

Specify PV-75 for your project

Request a quote

The Oversized entrance pivot configuration is quoted unit by unit, within 24 hours.

Prefer to talk it through?

Send a drawing or a one-line brief on WhatsApp.

+86 177 0868 3991 — quotation within 24 hours, shop drawings free in 3 working days.
