Panoramic Fixed Glazing

PF-35 — Slim-face panoramic glazing · single pane up to 4,000 mm

Questions on this system — sizes, glazing, lead time?

Ask on WhatsApp

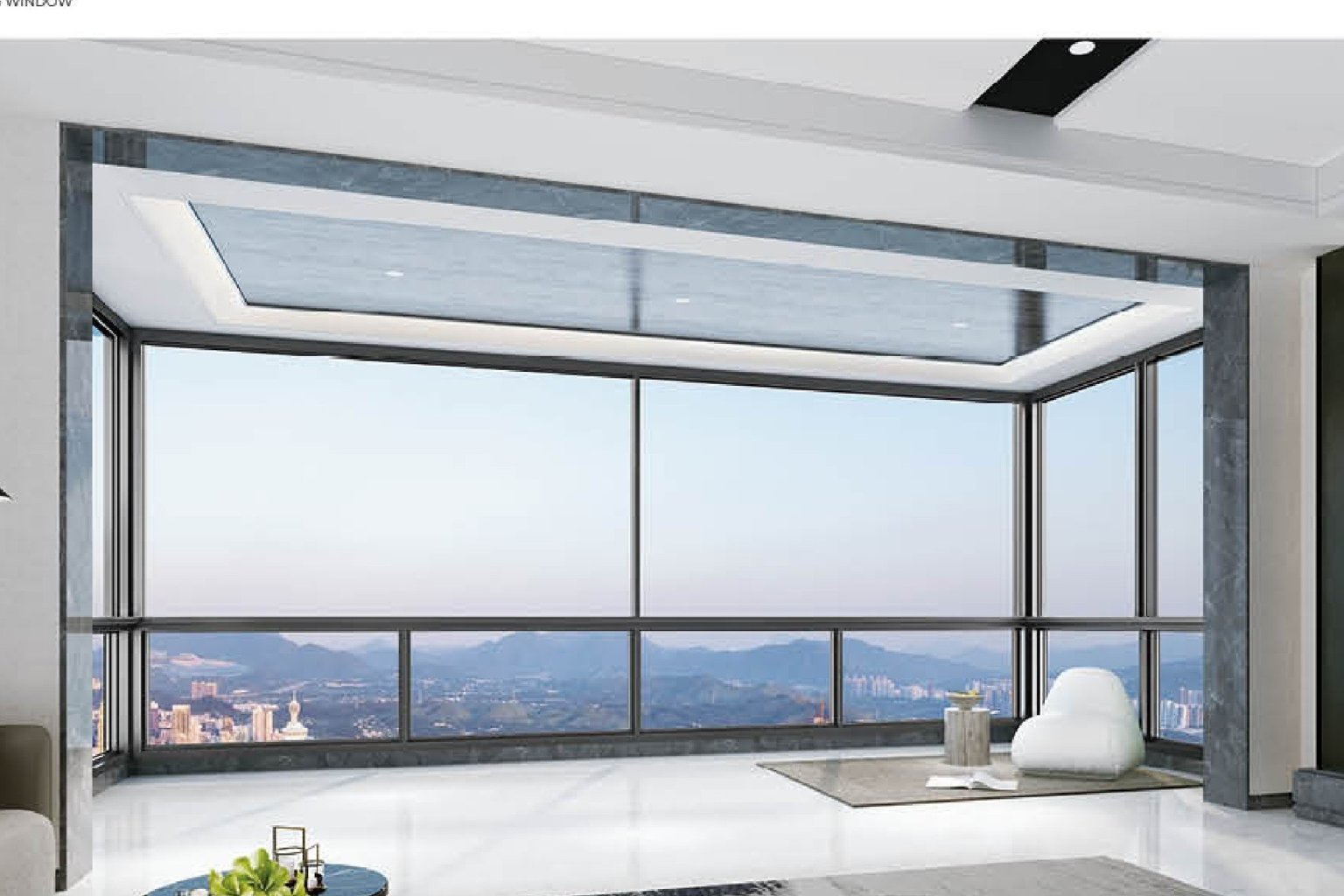

Full-height fixed glazing in the showroom, the city beyond the glass

PF-35

A 35 mm face width that puts the view first and the frame last.

Slim-face panoramic glazing · single pane up to 4,000 mm

Configurations
16
Glazing options
12
Lead time
30–40 days
Warranty
15 yr

Configurations

16

Glazing options

12

Lead time

30–40 days

Warranty

15 yr

Both documents are free — quoted against your project within 24 hours.

123

PF-35 frame section, thermal-break build. Photographed section, hardware and installation detail below.

What the section drawing decides

High-end custom is decided in the section drawing, not the brochure. These four layers are held to specification on every PF-35 unit we ship.

01

No frame to size

The front face is 35 mm because there is no load-bearing frame. Each end of the panel is held in an aluminium channel with the glass in a rubber bed.

02

Concealed fixing, continuous drainage

Channel takes the fixing and leaves the drainage path unbroken along the bottom edge.

03

Laminated low-E IGU

A 45 dB acoustic option exists for panes facing traffic. The single pane reaches 4,000 mm wide by 3,000 mm high.

04

Tested to EN 14351-1 and EN 12608

AS 1288 is available as a glass option. The 45-degree corner uses structural silicone, not a mechanical corner post.

Technical detail

The section, the hardware and the fixings — photographed, not rendered. This is the level of detail your drawing office specifies against and your site crew installs to, on every unit that leaves the line.

01

Profile cross-section

There is no frame to size here. The 35 mm is a front face, not a profile depth: each end of the panel is held in an aluminium channel with the glass sitting in a rubber bed, and the absence of a post is exactly what lets the view run through.

Front face

35 mm, no load-bearing frame

Support

Aluminium channel each end

Corner

45° return, structural silicone

Seal

Rubber bed, continuous drainage

Cut aluminium profile sections held in a gloved hand beside a PA66 GF25 thermal break sample
Profile sections cut open: the thermal break, the chambers and the glazed edge read as three separate things.
Thermal break bar visible in the window frame cross section
The continuous PA66 break bar isolates the outer and inner aluminium.
Multi-chamber aluminium profile cross section with the insulation bar cut through
Chambers in the profile cross section — stiffness and drainage run through the cavity layout, not the wall thickness alone.
Thermally broken aluminium profile with the polyamide bridge
The polyamide bridge breaks the conductive path that would otherwise run across the frame.
Profile cross sections and a glazed edge on the showroom display rack
Sections on the same platform, sized for the leaf load and the threshold.
Thermal break bar detail on the extrusion line
Thermal break bar, second detail — continuous PA66 from the extrusion line.
02

Hardware

Nothing locks because nothing swings. Fixings are concealed and the drainage path runs unbroken along the bottom edge, so the panel is specified and priced as glazing rather than as a window.

Fixing

Concealed, no hardware visible

Drainage

Continuous along bottom edge

Single pane

Up to 4,000 × 3,000 mm

Corner

Structural silicone, no post

Multi-point locking bolt points on a door leaf edge
Multi-point locking — the handle drives bolt points top, bottom and on the meeting stile, not one edge.
Window handle with base plate and strike set and fixing screws
Handle, base plate and strike set — the full set, fitted and cycled before dispatch.
Dark lever handle on a white door leaf
Key-operated handle for ground-floor and security specifications.
Metal lever handle catching the light on a timber door
Metal finish for clean, high-traffic interior positions.
Steel entrance door with a multi-point lock and keypad
Strike and fixings match the handle set; nothing is improvised on site.
Handle sets laid out for the fitting line
Every handle set is matched to the sash before the unit is built.
Gloved hands fitting a corner bracket and hardware into an aluminium profile
Fitted on the line, not on site — the corner bracket and its fasteners go in as one operation.
Corner bracket and hardware components held in a gloved hand
The corner bracket is what ties the joint together; it is cut and drilled to match the profile it drives.
03

Installation

Factory-assembled and pre-glazed, so the tolerance work is done under a roof. On site the build is a three-zone detail — air, insulation, weatherproofing — and every crate arrives with the install guide and the sealant schedule for that market.

Arrives

Factory-assembled

Detail

3-zone: air / insulation / water

Guide

Per-crate install sheet

Sealant

Scheduled per market

Ivy-clad elevation with the window openings left in view
The opening condition on a real elevation — each layer does one job and the details are not mixed.
Gasket line being run into the sash profile
Every glazed unit is sealed along the gasket line before it leaves the shop.
Extruded gasket stock racked in the factory store
Gasket is stocked as a schedule, not a habit — the compound and the section are named per market.
The same gasket run seen across the line
Pre-treatment and powder coat — every profile runs the surface line before assembly.
Machinist cutting a component on the workshop line
The workshop line — components cut, machined and checked at the quality gate, before crating.
Die casting press forming the hardware components
Hardware is cast in-house, so the cam and gear match the profile it drives.

The system in short

Panoramic fixed glazing is a structural glass system that spans floor to ceiling without intermediate mullions. PF-35 uses a 35 mm slim front face and a frameless 45° structural-silicone corner, supporting single panes up to 4,000 × 3,000 mm with laminated, low-E or acoustic glazing for view-first façades.

Fixed and corner-glazing systems with a slim 35 mm front face, designed for floor-to-ceiling and corner panoramics. Laminated and low-E glass options keep the view clean while meeting impact and thermal requirements of each market.

PF-35 installed view
PF-35 — Panoramic Fixed Glazing

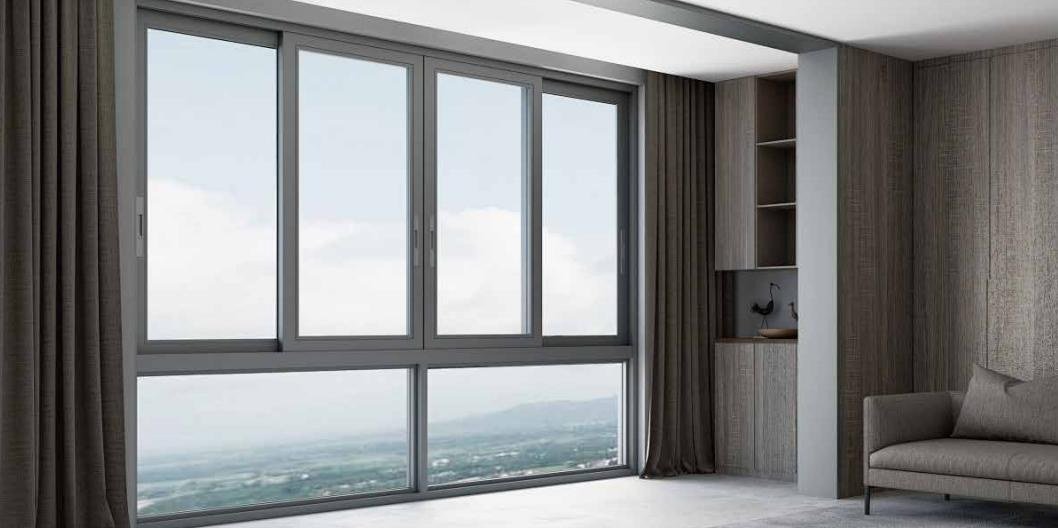

PF-35 detail
PF-35 — detail

Models and sizes

Every PF-35 ships as one of the configurations below — specify by model code in your window schedule and it quotes line by line.

PF-35 FIXED

  • Single pane to 4,000 × 3,000 mm
  • Laminated or low-E IGU

PF-35 CORNER

  • 45° structural corner, frameless
  • Laminated low-E IGU

PF-35 BAND

  • Floor-to-ceiling curtain band
  • Low-E IGU, acoustic option

PF-35 ACOUSTIC

  • Rw 45 dB configuration
  • 47 dB laminated IGU

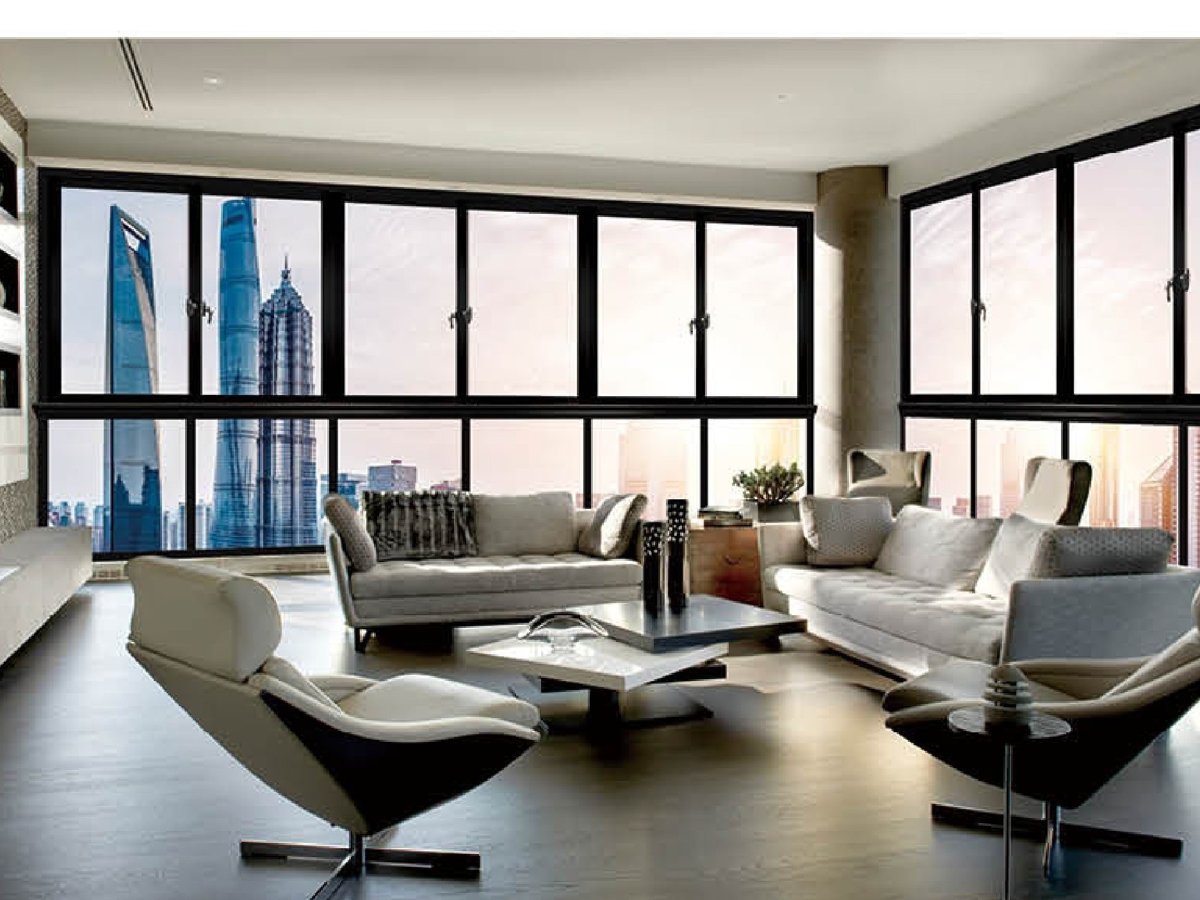

PF-35 configurations in place
PF-35 — configurations in place

Specifications

Profile system
Slim-face fixed glazing, 35 mm front face
Single pane
Up to 4,000 mm wide × 3,000 mm high
Corner solution
Frameless 45° corner glazing, structural silicone
Glazing
Laminated, low-E IGU, acoustic 45 dB option
Structural
Concealed fixing with continuous drainage
Finishes
Anodised, powder-coated, RAL on request
Standards
Tested to EN 14351-1, EN 12608; AS 1288 glass option

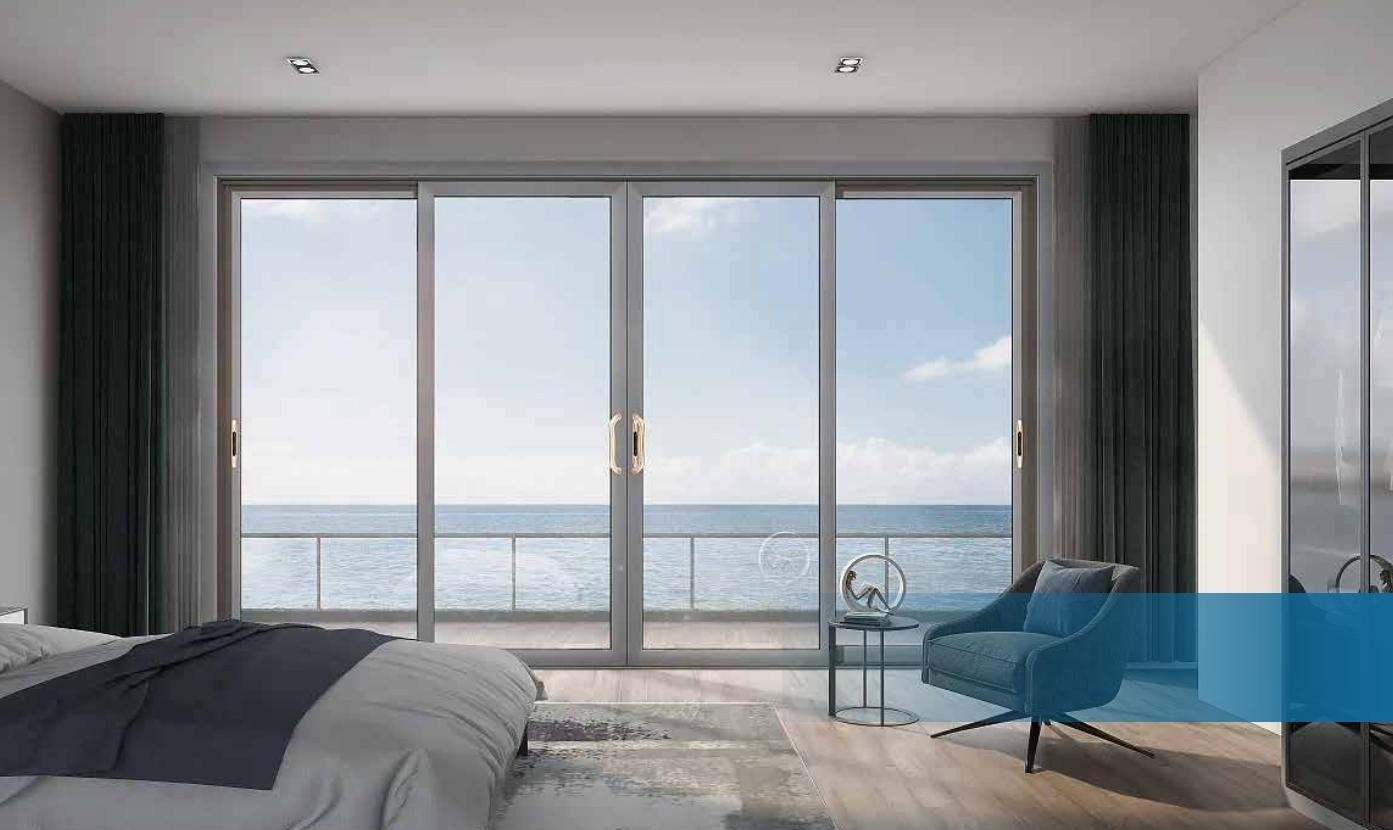

PF-35 profile and glazing detail
PF-35 — profile and glazing detail

Material & craft

The layers held to specification on every PF-35 unit — the section drawing above, written out.

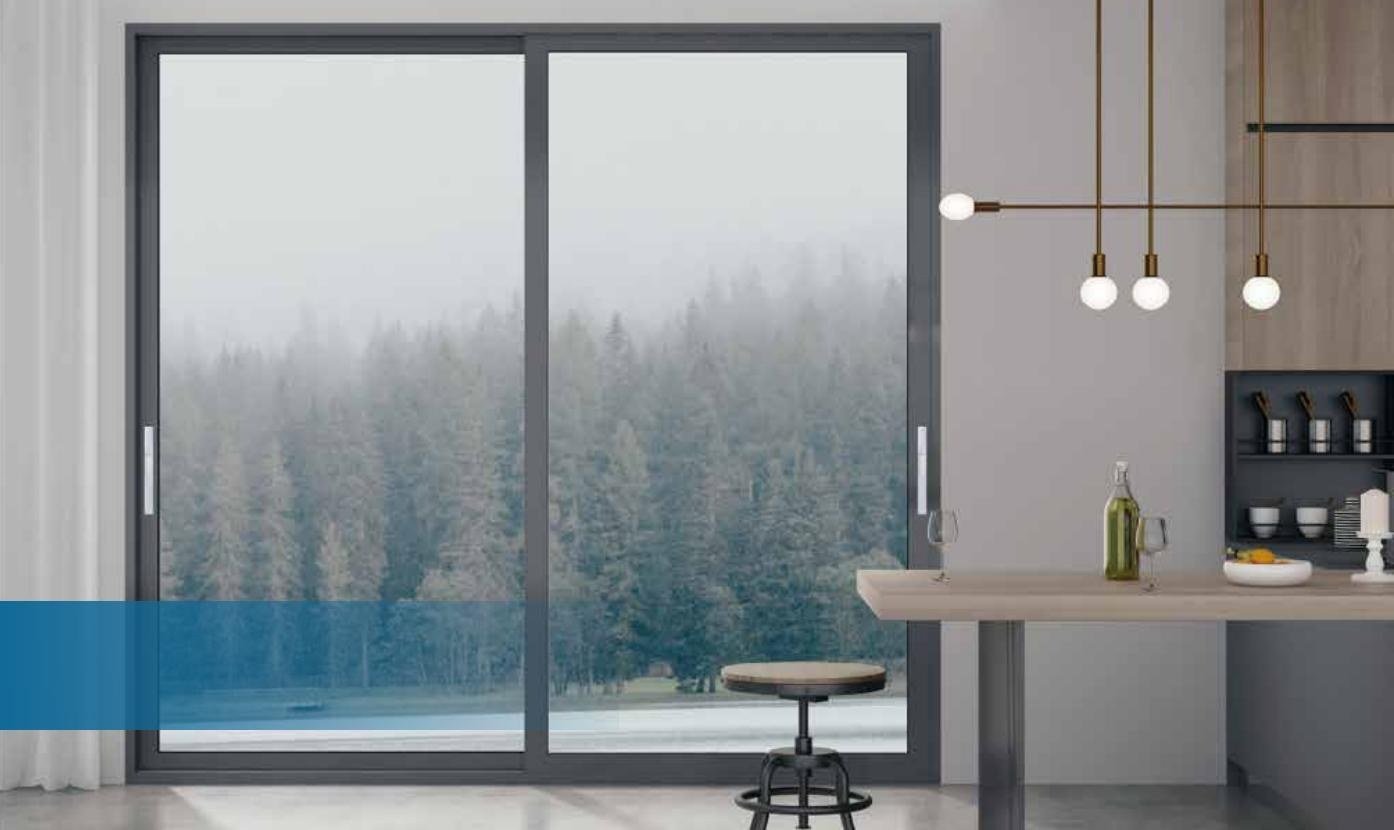

35 mm front face

35 mm front face

The slimmest line in the range — a structural glass frame that spans floor to ceiling without intermediate mullions.

Frameless corner

Frameless corner

The 45° corner joint is a structural-silicone build, not a post: two façades meet with no mullion in sight, on concealed fixing with continuous drainage.

Glazing mass

Glazing mass

Single panes to 4,000 × 3,000 mm — laminated, low-E or the 47 dB acoustic IGU — with the impact-rated option for coastal codes on the same frame.

What it's worth to you

Panoramic Fixed Glazing installed on a residential elevation

The view is the product: under 40 mm of frame around glass that is laminated, not just large.

A 15-year frame warranty with the test documentation on the configuration you specified, not a nominal sample.

Sits on the 75 mm platform next to tilt-turn or sliding leaves — fixed band and opening sashes quote as one schedule.

Specify Panoramic Fixed Glazing

Send the project location, the opening sizes and the finish. Drawings, window schedules or a specification can be attached — quoting is done against the drawings, not a price list.

Request a quotation

Fields marked * are required. Drawings, CAD or a window schedule can be attached — up to 5 MB.

Products of interest
Panoramic Fixed Glazing
Attach drawing / schedule (dwg, pdf, xls — max 5 MB)

Guaranteed response within 24 hours, every inquiry. No price lists are shared outside the quotation.

Where it is specified

The sites we build this system for, and what the schedule changes in each one.

View-first living rooms

The whole elevation is glass; the frame stays under 40 mm.

Corner glazing returns

Two façades, one room, no corner post — structural silicone joint.

Hillside and waterfront sites

Laminated core plus low-E for sight lines that outlast the view.

Lobby and gallery walls

Large fixed areas with concealed fixing and drainage.

Fixed-plus-opening façades

Sits on the 75 mm platform next to tilt-turn or sliding leaves.

Options and finishes

Profile system
Slim-face fixed glazing, 35 mm front face
Single pane
Up to 4,000 mm wide × 3,000 mm high
Corner solution
Frameless 45° corner glazing, structural silicone
Glazing
Laminated, low-E IGU, acoustic 45 dB option
Structural
Concealed fixing with continuous drainage
Finishes
Anodised, powder-coated, RAL on request

Finish

Anodised Natural

Anodised Silver

Anthracite · RAL 7016

Graphite · RAL 7024

Jet Black · RAL 9005

Traffic White · RAL 9016

Cream · RAL 1015

Champagne · RAL 1019

Ash Natural

Walnut Dark

Bronze

Copper

View all finishes

Design features

35 mm front face — the slimmest line in the range

Frameless 45° corner in structural silicone

Concealed fixing with continuous drainage

Single panes to 4,000 × 3,000 mm

Acoustic 45 dB glazing configuration

Impact-rated option for coastal codes

Glass build

Two choices set what the glass does in a PF-35: which coating is on it, and what fills the cavity. The coating sets the solar figure. The gas moves the U-value and leaves the solar figure where it was — which is why the two are decided separately. The values below are published by the glass manufacturers for the build named; they are centre-of-glass figures, and the whole-window value for a configuration is read from the report that covers it.

BuildSHGCU, centre of glassWhere it is chosen
LoE-180, argon0.690.26High solar gain, cold climate
LoE-272, argon0.410.25Balanced, the usual default
LoE-366, argon0.270.24Solar control, west and south glass
LoE-366 with LoE-i89 on #4, argon0.270.20Solar control with the lowest U-value

NFRC centre-of-glass values for a 3/4 in two-pane unit with 3 mm lites and a 13 mm argon cavity. The spacer is the third lever and behaves differently again: it works at the edge of the unit, so it shows in the whole-window value rather than here.

Full glass performance tables, including air against argon and EN 673 values →

Buying & delivery

The commercial terms behind the PF-35 — minimum order, quotation, payment, packing and warranty — are the same on every quotation and sit on the commercial terms for structural glazing. Buying to resell, or to fabricate the line yourself? aluminium window supply for fabricators covers the supplier view of the same schedule.

Request a quote for this system
Lead time
30–40 days from approved shop drawings. Assembly, glazing and quality control sit inside the quoted lead time, not on top of it.
Standards on this system
Tested to EN 14351-1 and EN 12608, with an AS 1288 glass option. The glazing assembly answers SANS 613 for wind and impact loads, water penetration and air leakage; where the pane sits below the safety line, the glazing is safety material to SANS 10400-N:2012 and carries the installer mark visible after installation.Source documents: EN 14351-1·AS 1288:2015·SANS 613·SANS 10400-N
Documents and crating
Hardware and glass schedules ship in the shop drawing package, free, within three working days of approved architectural drawings. Panels over 2,500 mm travel in shipping cradles; crated corner-protected with desiccant. Test reports are issued on request.

Documentation

Data sheet

System specifications, model codes and glazing schedule, as a PDF.

Brochure

Full-range presentation for tender packs and client meetings.

CAD sections & BIM families

Section blocks and families for inclusion in project documentation.

Ask for it

Specification clauses

Draft specification text for the drawing package, per system.

Ask for it

RFQ template

The inquiry sheet our quote team needs to answer within 24 hours.

Open the downloads

Confirm before the order is placed

Six items hold up an order on the PF-35 more often than anything else. None of them is decided here; each one has to be settled on the project side before the drawing set is frozen.

Rough opening, not frame size

Confirm the structural opening and the reveal build-up. The frame is ordered to the approved drawing, and the drawing is what the quotation is built from.

The opening is quoted before the render and the closing detail, then the reveal takes back the clearance.

Glass build

Confirm pane thickness, coating, spacer and cavity gas as one line. The tested configuration is the one the report covers.

Glass specified by thickness alone. The coating, spacer and gas move the U-value and the SHGC independently.

Operation and handing

Confirm the opening direction, the handing and the number of leaves, and say which side the handing is read from.

Handing recorded from the inside on one schedule and the outside on another.

Finish

Confirm the RAL or anodising grade, and whether the address needs a marine-grade schedule.

The finish is picked from a screen, and the coastal requirement is raised after production has started.

Hardware

Confirm handle type, locking point count, and whether the market requires key-operated locking.

Hardware assumed standard; the site then needs keyed-alike cylinders that were never on the order.

Documents with the shipment

Confirm which reports and declarations travel with the crate. A certificate is issued per configuration, not per product family.

Test documentation requested after shipment, when the report for that configuration has to be re-issued.

Screens and insect load

Confirm whether screens are part of the order. In the insect-load markets the screen is what lets the window stay open after dark.

Screens treated as an accessory and quoted separately, then the mesh does not match the frame finish.

Who confirms each part

No single party holds the whole decision. The drawing set is the one place they meet.

Buyer or developer

Opens the order: the standard the project has to meet, and the market it ships to.

Designer or architect

Sets the configuration: sizes, operation, finish and the glass build.

Structural engineer

Where the market requires it, sets the wind load the opening is rated to.

Factory

Confirms what can be built to that drawing, and issues the report for the configuration.

Everything else on the commercial side — minimum order, quotation, payment, packing and warranty — is the same on every order and sits on the commercial terms page.

Compare with the other window systems

Every system in this category on one table — the platform it shares, the opening it carries and the glazing it takes. Figures come from each system record, not retyped here.

11 window systems in the catalogue
CodeSystemPlatformGlazing options
PF-35Panoramic Fixed Glazing — this systemLaminated or low-E IGU
TT-75Tilt & Turn Windows6–24 mm single / IGU
IR-80Impact-Rated WindowsLaminated IGU, 0.38 SGP
WA-70Wood-Aluminium Windows47 dB laminated IGU
CW-60Casement Windows6–24 mm single or IGU
AC-90Acoustic Windows47 dB laminated IGU
SM-60Smart Motorized Windows6–24 mm single or IGU
SW-110Six-Track Sliding Windows5+12A+5 IGU
AW-55Crank Awning WindowsTempered single pane
BP-60Burglar-Proof WindowsSingle or IGU, laminated line per SANS 1263-1
LW-70Louvre WindowsTempered single in the fixed panels

Frequently asked

Suction-cup certified rigging and in-glass reinforcement are engineered per unit; shipping cradles are included for panels over 2,500 mm.

Other systems on the same platform

All systems
Black-framed casement door and window in the showroom

CW-60

Casement Windows

Hinged casement · 90° lock · sash up to 1,200 × 1,800 mm

Specify PF-35 for your project

Request a quote

The Slim-face panoramic glazing configuration is quoted unit by unit, within 24 hours.

Prefer to talk it through?

Send a drawing or a one-line brief on WhatsApp.

+86 177 0868 3991 — quotation within 24 hours, shop drawings free in 3 working days.
