LP-120 — Motorized louvered roof · integrated drainage · app control

Questions on this system — sizes, glazing, lead time?

Ask on WhatsApp
Louvred aluminium pergola over an outdoor terrace

LP-120

Sun when you want it, shade when it turns, rain when it must.

Motorized louvered roof · integrated drainage · app control

Configurations
10
Roof options
4
Lead time
40–50 days
Warranty
10 yr

Configurations

10

Roof options

4

Lead time

40–50 days

Warranty

10 yr

Both documents are free — quoted against your project within 24 hours.

123

LP-120 frame section, thermal-break build. Photographed section, hardware and installation detail below.

What the section drawing decides

High-end custom is decided in the section drawing, not the brochure. These four layers are held to specification on every LP-120 unit we ship.

01

Motorised louvers, 180 degrees of travel

The louver is the closure. There is no glazed leaf, so the structure is quoted up to 6 x 6 m free-standing or wall-attached.

02

Wind and rain auto-close

Both close the roof without a person in the loop, which is what makes an unattended terrace safe.

03

Integrated gutter, concealed downpipe

Water leaves through the frame rather than the louver edge, so the louver stays a clean line in view.

04

Add side screens, heaters, lighting

These are the three options that turn a shade structure into an outdoor room. Typical sites: terrace, pool, restaurant frontage.

Technical detail

The section, the hardware and the fixings — photographed, not rendered. This is the level of detail your drawing office specifies against and your site crew installs to, on every unit that leaves the line.

01

Profile cross-section

Motorised aluminium louvers with 180° of travel. The louver is the closure — there is no glazed leaf — which is why the structure is quoted free-standing or wall-attached to 6 × 6 m.

Roof

Motorised aluminium louvers

Travel

180°

Structure

Free-standing or wall-attached

Span

Up to 6 × 6 m

Cut aluminium profile sections held in a gloved hand beside a PA66 GF25 thermal break sample
Profile sections cut open: the thermal break, the chambers and the glazed edge read as three separate things.
Thermal break bar visible in the window frame cross section
The continuous PA66 break bar isolates the outer and inner aluminium.
Multi-chamber aluminium profile cross section with the insulation bar cut through
Chambers in the profile cross section — stiffness and drainage run through the cavity layout, not the wall thickness alone.
Thermally broken aluminium profile with the polyamide bridge
The polyamide bridge breaks the conductive path that would otherwise run across the frame.
Profile cross sections and a glazed edge on the showroom display rack
Sections on the same platform, sized for the leaf load and the threshold.
Thermal break bar detail on the extrusion line
Thermal break bar, second detail — continuous PA66 from the extrusion line.
02

Hardware

Wind and rain both close the roof without a person in the loop, which is what makes an unattended terrace safe rather than merely convenient.

Wind

Auto-close, no operator needed

Rain

Auto-close

Control

App and switch

Check

Cycled full travel

Multi-point locking bolt points on a door leaf edge
Multi-point locking — the handle drives bolt points top, bottom and on the meeting stile, not one edge.
Window handle with base plate and strike set and fixing screws
Handle, base plate and strike set — the full set, fitted and cycled before dispatch.
Dark lever handle on a white door leaf
Key-operated handle for ground-floor and security specifications.
Metal lever handle catching the light on a timber door
Metal finish for clean, high-traffic interior positions.
Steel entrance door with a multi-point lock and keypad
Strike and fixings match the handle set; nothing is improvised on site.
Handle sets laid out for the fitting line
Every handle set is matched to the sash before the unit is built.
Gloved hands fitting a corner bracket and hardware into an aluminium profile
Fitted on the line, not on site — the corner bracket and its fasteners go in as one operation.
Corner bracket and hardware components held in a gloved hand
The corner bracket is what ties the joint together; it is cut and drilled to match the profile it drives.
03

Installation

Factory-assembled and pre-glazed, so the tolerance work is done under a roof. On site the build is a three-zone detail — air, insulation, weatherproofing — and every crate arrives with the install guide and the sealant schedule for that market.

Arrives

Factory-assembled

Detail

3-zone: air / insulation / water

Guide

Per-crate install sheet

Sealant

Scheduled per market

Ivy-clad elevation with the window openings left in view
The opening condition on a real elevation — each layer does one job and the details are not mixed.
Gasket line being run into the sash profile
Every glazed unit is sealed along the gasket line before it leaves the shop.
Extruded gasket stock racked in the factory store
Gasket is stocked as a schedule, not a habit — the compound and the section are named per market.
The same gasket run seen across the line
Pre-treatment and powder coat — every profile runs the surface line before assembly.
Machinist cutting a component on the workshop line
The workshop line — components cut, machined and checked at the quality gate, before crating.
Die casting press forming the hardware components
Hardware is cast in-house, so the cam and gear match the profile it drives.

The system in short

A louvered pergola is a free-standing or attached outdoor roof of motorized aluminium louvers that tracks the sun — open for shade and airflow, closed for rain. LP-120 carries integrated gutter with concealed downpipe, app, switch, wind and rain control, and sizes to 6 × 6 m, with side-screen, heater and lighting channels for terraces and pool decks.

A free-standing or attached louvered-roof pergola with motorized aluminium louvers, integrated gutter and app control — the terrace-upgrade specification for villas, pool decks and restaurant frontages. The louvers run in 5° steps, open for shade and airflow, closed for rain.

The structure is rated per local code at design stage, and the wind sensor closes the louvers automatically above a set threshold. Power is 230 V or 12 V, with a battery option for off-grid villas, and side-screen, heater and lighting channels are specified at drawing stage, not retrofitted.

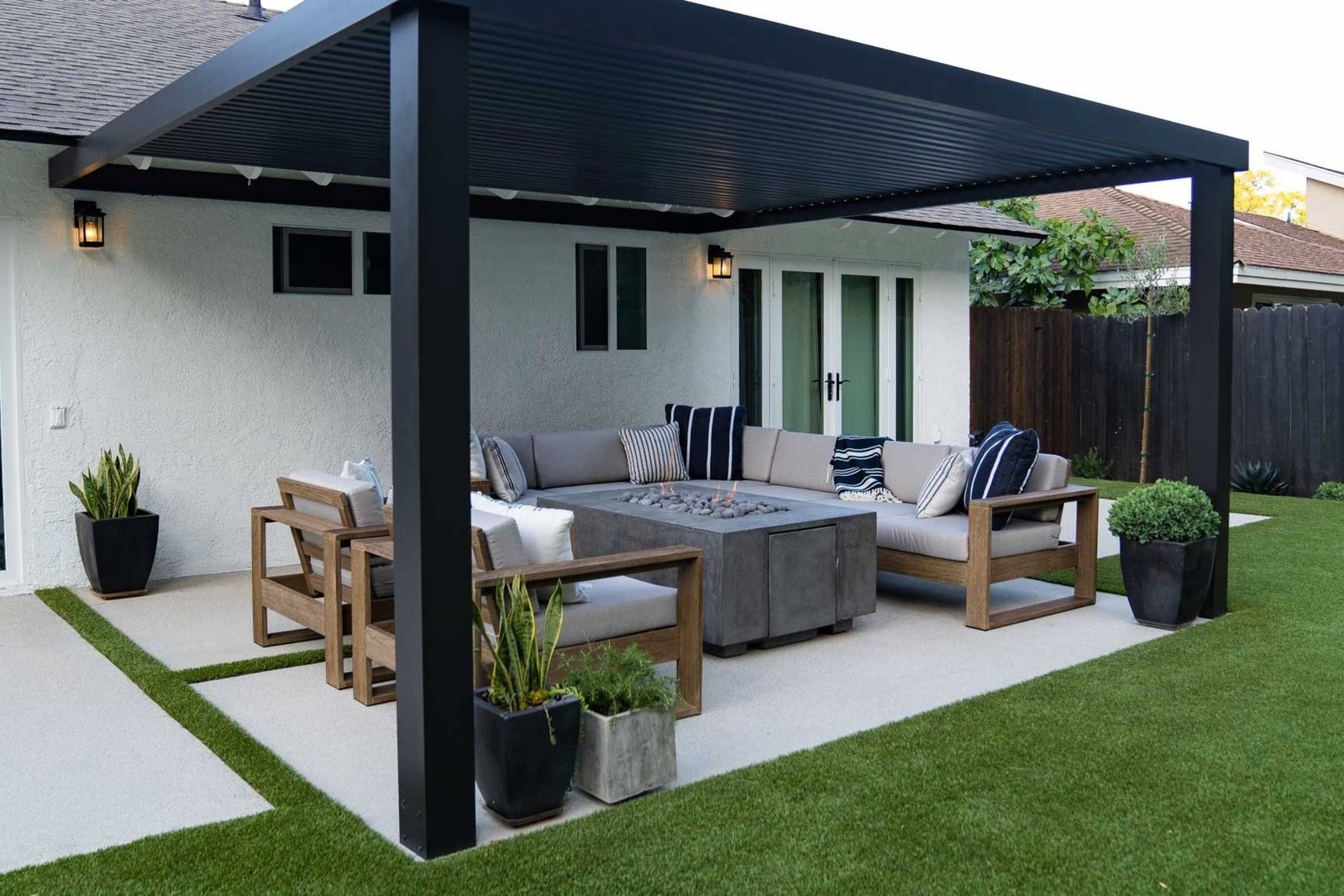

LP-120 installed view
LP-120 — Louvered Pergolas
LP-120 detail
LP-120 — detail

Models and sizes

Every LP-120 ships as one of the configurations below — specify by model code in your window schedule and it quotes line by line.

LP-120 FS

  • Free-standing, to 6 × 6 m
  • Louver roof, integrated gutter

LP-120 WALL

  • Wall-attached, to 4 m projection
  • Louver roof

LP-120 SIDE

  • With folding side screens
  • Louver + screens

LP-120 HEAT

  • With heater and lighting channels
  • Louver + channels
LP-120 configurations in place
LP-120 — configurations in place

Specifications

Roof
Motorized aluminium louvers, 180° travel
Control
App, switch, wind and rain auto-close
Drainage
Integrated gutter with concealed downpipe
Structure
Free-standing or wall-attached, up to 6 × 6 m
Options
Side screens, heaters, lighting channels
Typical site
Terrace, pool, restaurant frontage
LP-120 profile and glazing detail
LP-120 — profile and glazing detail

Material & craft

The layers held to specification on every LP-120 unit — the section drawing above, written out.

Louvers

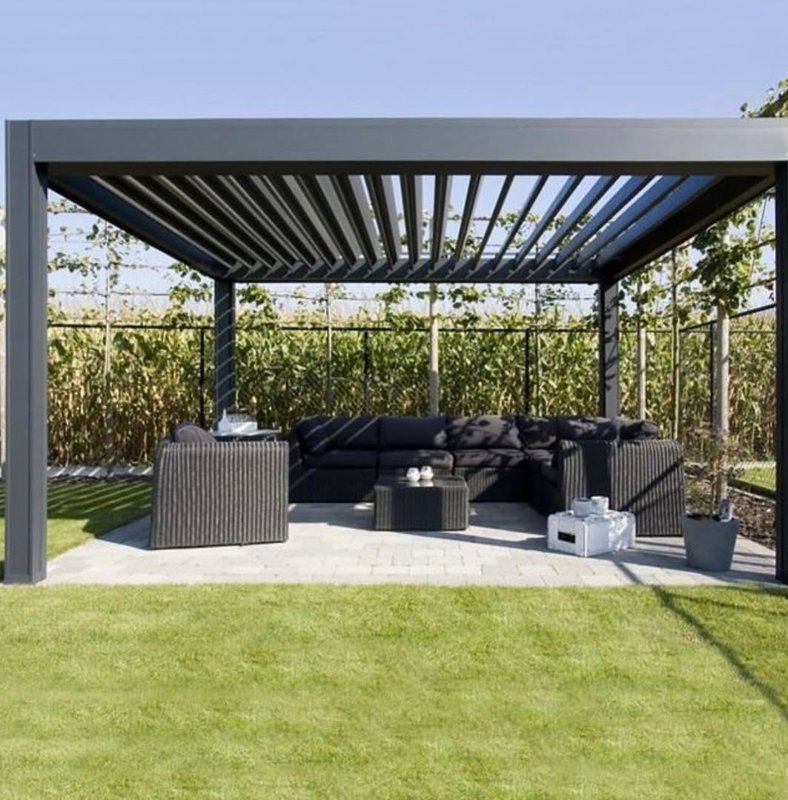

Louvers

Motorized aluminium louvers with 180° travel — open for shade and airflow, closed for rain, on a schedule you set.

Roof & gutter

Roof & gutter

An integrated gutter with concealed downpipe; free-standing to 6 × 6 m or wall-attached to 4 m projection.

Control & extras

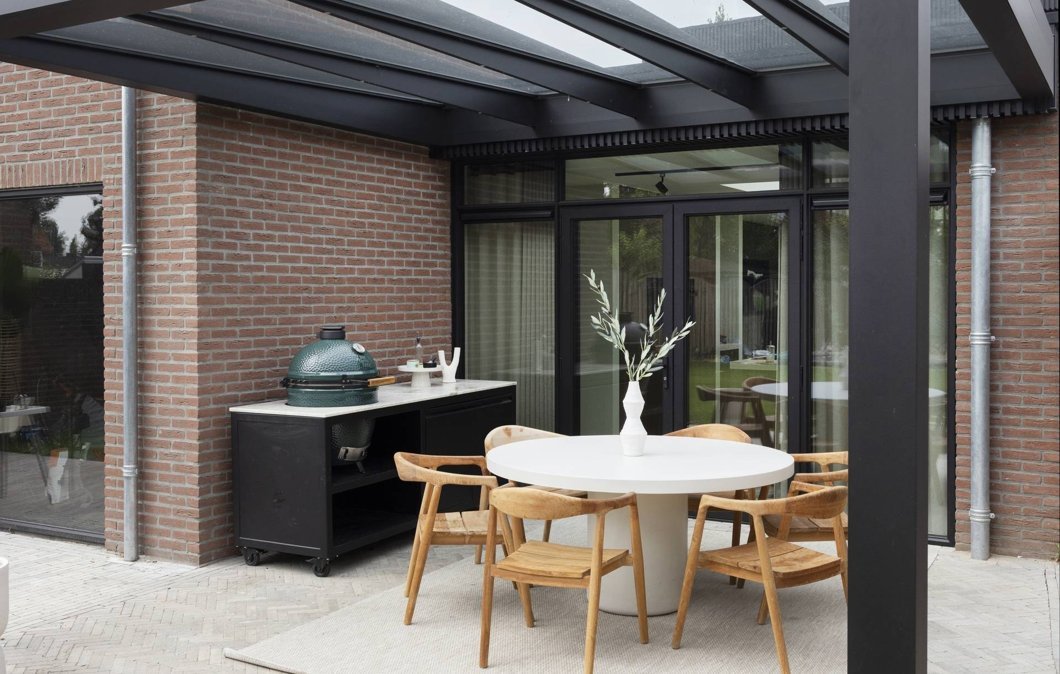

Control & extras

App, switch, wind and rain auto-close with battery hold-up; side screens, heater and lighting channels, and a battery option for off-grid sites.

What it's worth to you

Louvered Pergolas installed on a residential elevation

The dining room moves outside four seasons a year — the louvers run the weather, not the staff.

Wind and rain close it automatically: the pool-deck case where nobody is standing by the controller.

A 10-year warranty on the motor and louver line, with the side-screen configuration pricing the space without walls.

Specify Louvered Pergolas

Send the project location, the opening sizes and the finish. Drawings, window schedules or a specification can be attached — quoting is done against the drawings, not a price list.

Request a quotation

Fields marked * are required. Drawings, CAD or a window schedule can be attached — up to 5 MB.

Products of interest
Louvered Pergolas
Attach drawing / schedule (dwg, pdf, xls — max 5 MB)

Guaranteed response within 24 hours, every inquiry. No price lists are shared outside the quotation.

Where it is specified

The sites we build this system for, and what the schedule changes in each one.

Villa terraces

Sun in the morning, shade at noon — the louvers run on a schedule.

Hotel pool decks

Closed under rain, open for sunbathing; the wind sensor handles the rest.

Restaurant frontages

The dining room moves outside four seasons a year.

Spa and wellness courtyards

The side-screen configuration encloses the space without walls.

Off-grid sites

Battery option runs the motor where the wiring is not.

Options and finishes

Roof
Motorized aluminium louvers, 180° travel
Control
App, switch, wind and rain auto-close
Drainage
Integrated gutter with concealed downpipe
Structure
Free-standing or wall-attached, up to 6 × 6 m
Options
Side screens, heaters, lighting channels
Typical site
Terrace, pool, restaurant frontage

Finish

Anodised Natural

Anodised Silver

Anthracite · RAL 7016

Graphite · RAL 7024

Jet Black · RAL 9005

Traffic White · RAL 9016

Cream · RAL 1015

Champagne · RAL 1019

Ash Natural

Walnut Dark

Bronze

Copper

View all finishes

Design features

Motorized louvers, 180° travel

App, switch, wind and rain auto-close

Integrated gutter, concealed downpipe

Free-standing or wall-attached, to 6 × 6 m

Side screens, heaters, lighting channels

Battery option for off-grid sites

Glass build

Two choices set what the glass does in a LP-120: which coating is on it, and what fills the cavity. The coating sets the solar figure. The gas moves the U-value and leaves the solar figure where it was — which is why the two are decided separately. The values below are published by the glass manufacturers for the build named; they are centre-of-glass figures, and the whole-window value for a configuration is read from the report that covers it.

BuildSHGCU, centre of glassWhere it is chosen
LoE-180, argon0.690.26High solar gain, cold climate
LoE-272, argon0.410.25Balanced, the usual default
LoE-366, argon0.270.24Solar control, west and south glass
LoE-366 with LoE-i89 on #4, argon0.270.20Solar control with the lowest U-value

NFRC centre-of-glass values for a 3/4 in two-pane unit with 3 mm lites and a 13 mm argon cavity. The spacer is the third lever and behaves differently again: it works at the edge of the unit, so it shows in the whole-window value rather than here.

Full glass performance tables, including air against argon and EN 673 values →
