SK-60

Daylight from the source, sealed to roof standard.

Roof-integrated · thermal break · tilt ventilation option

Configurations
10
Glazing options
6
Lead time
35–45 days
Warranty
15 yr

Configurations

10

Glazing options

6

Lead time

35–45 days

Warranty

15 yr

Both documents are free — quoted against your project within 24 hours.

123

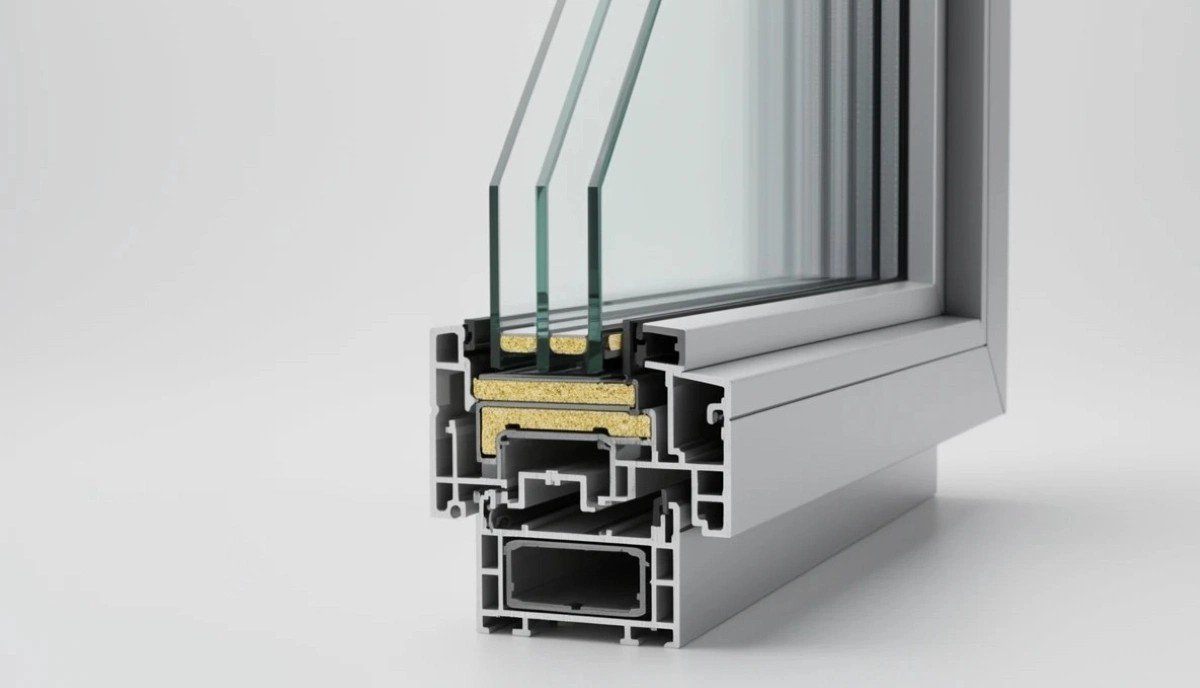

SK-60 frame section, thermal-break build. Photographed section, hardware and installation detail below.

What the section drawing decides

High-end custom is decided in the section drawing, not the brochure. These four layers are held to specification on every SK-60 unit we ship.

01

Pitch from 5 to 55 degrees

Flat roofs and steep roofs take different sills, so the pitch range is a section range rather than an option list.

02

Fixed, manual tilt or motorised

Opening choice follows the roof access. A motorised leaf is quoted where the opening is above reach.

03

Tempered IGU, solar-control or low-E

Glazing choice follows the orientation. A unit runs up to 1,600 x 1,200 mm per leaf.

04

Configured to local roof code

Full-perimeter flashing and a roof-grade gasket are part of the unit, not an accessory.

Technical detail

The section, the hardware and the fixings — photographed, not rendered. This is the level of detail your drawing office specifies against and your site crew installs to, on every unit that leaves the line.

01

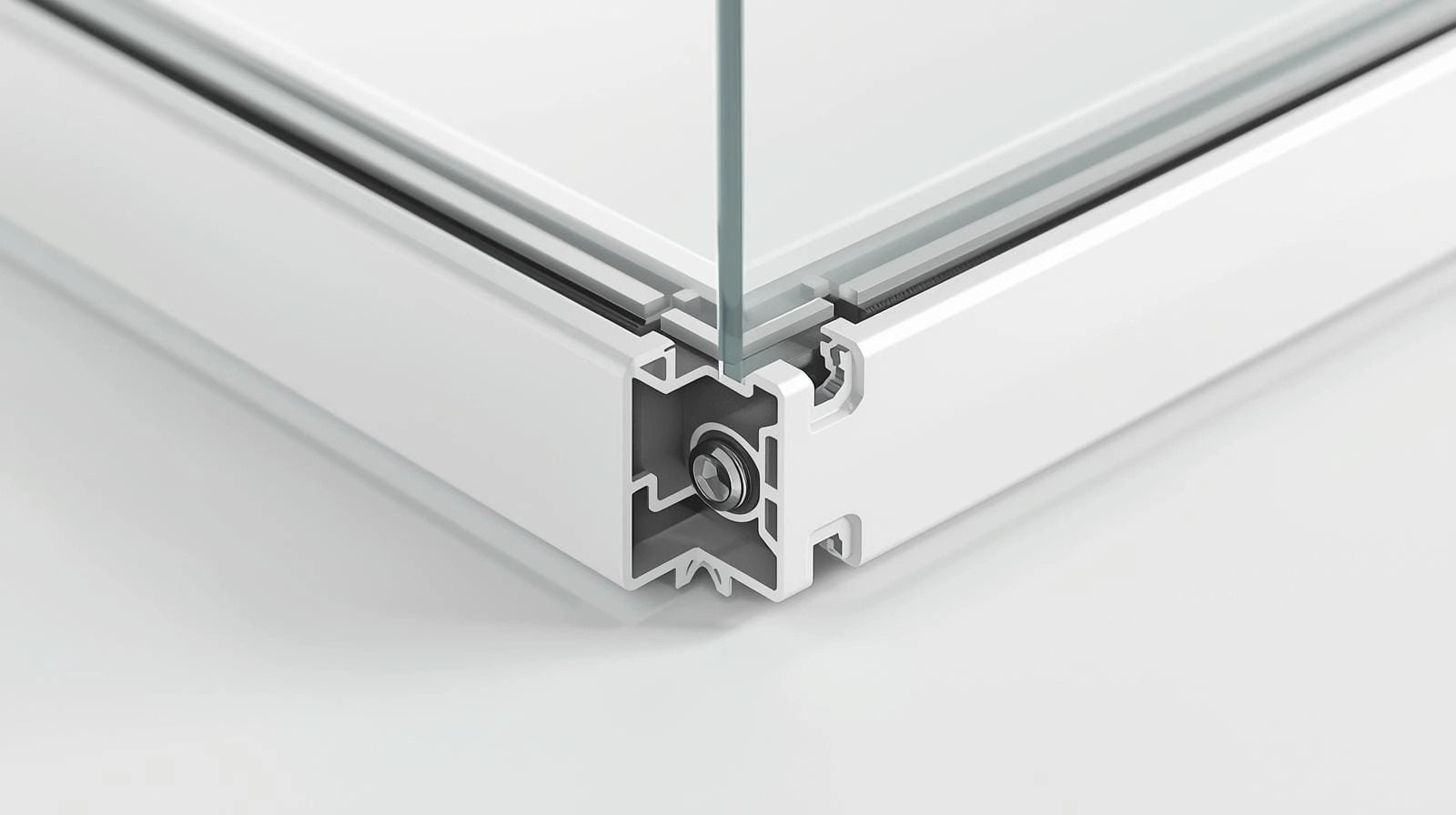

Profile cross-section

Pitch from flat at 5° to 55° on a steep roof. The pitch range is a section range rather than an option list, because a flat roof and a steep roof take different sills.

Pitch

Flat (5°) to 55° roofs

Unit

Up to 1,600 × 1,200 mm per leaf

Glazing

Tempered IGU, solar-control or low-E

Waterproof

Full-perimeter flashing

Cut aluminium profile sections held in a gloved hand beside a PA66 GF25 thermal break sample
Profile sections cut open: the thermal break, the chambers and the glazed edge read as three separate things.

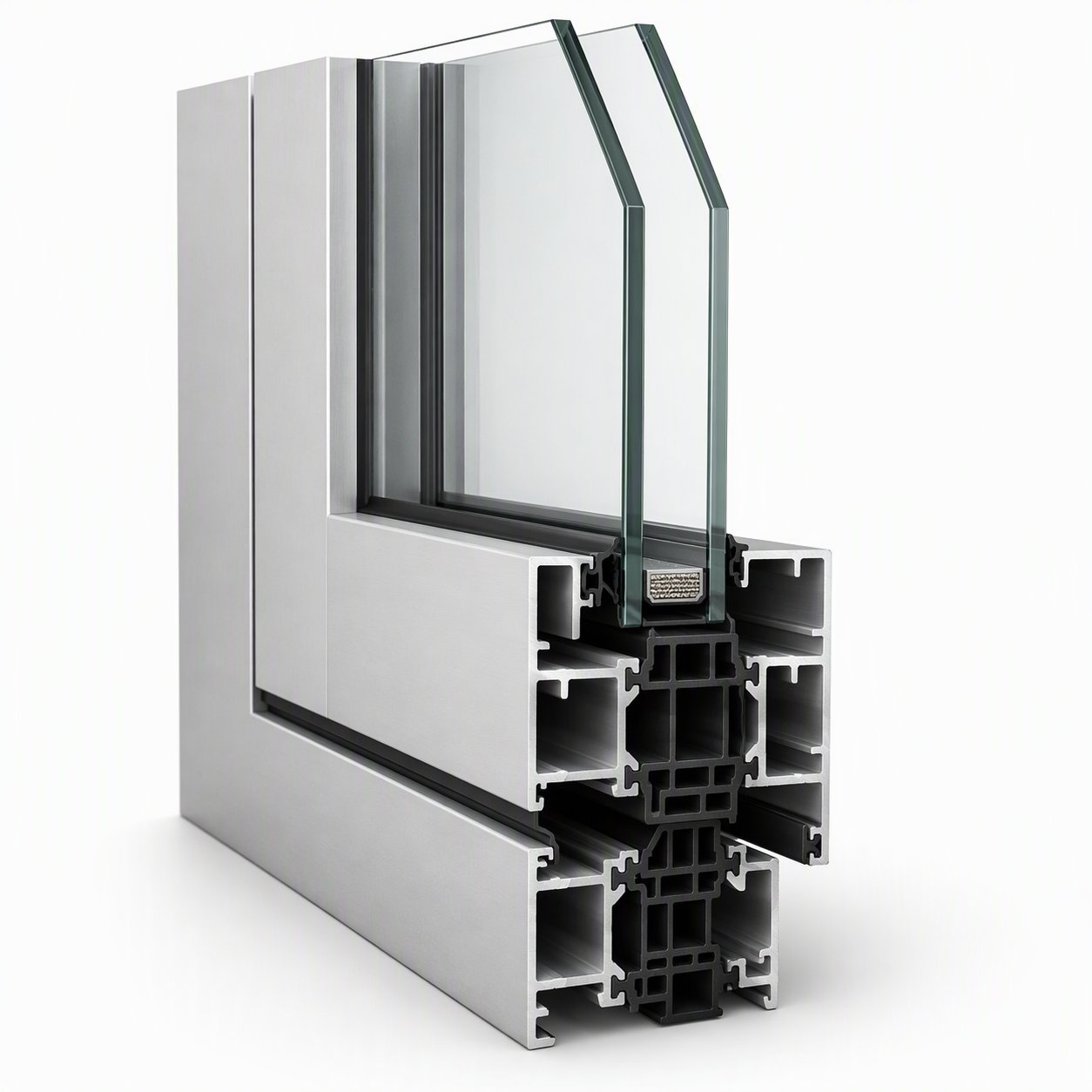

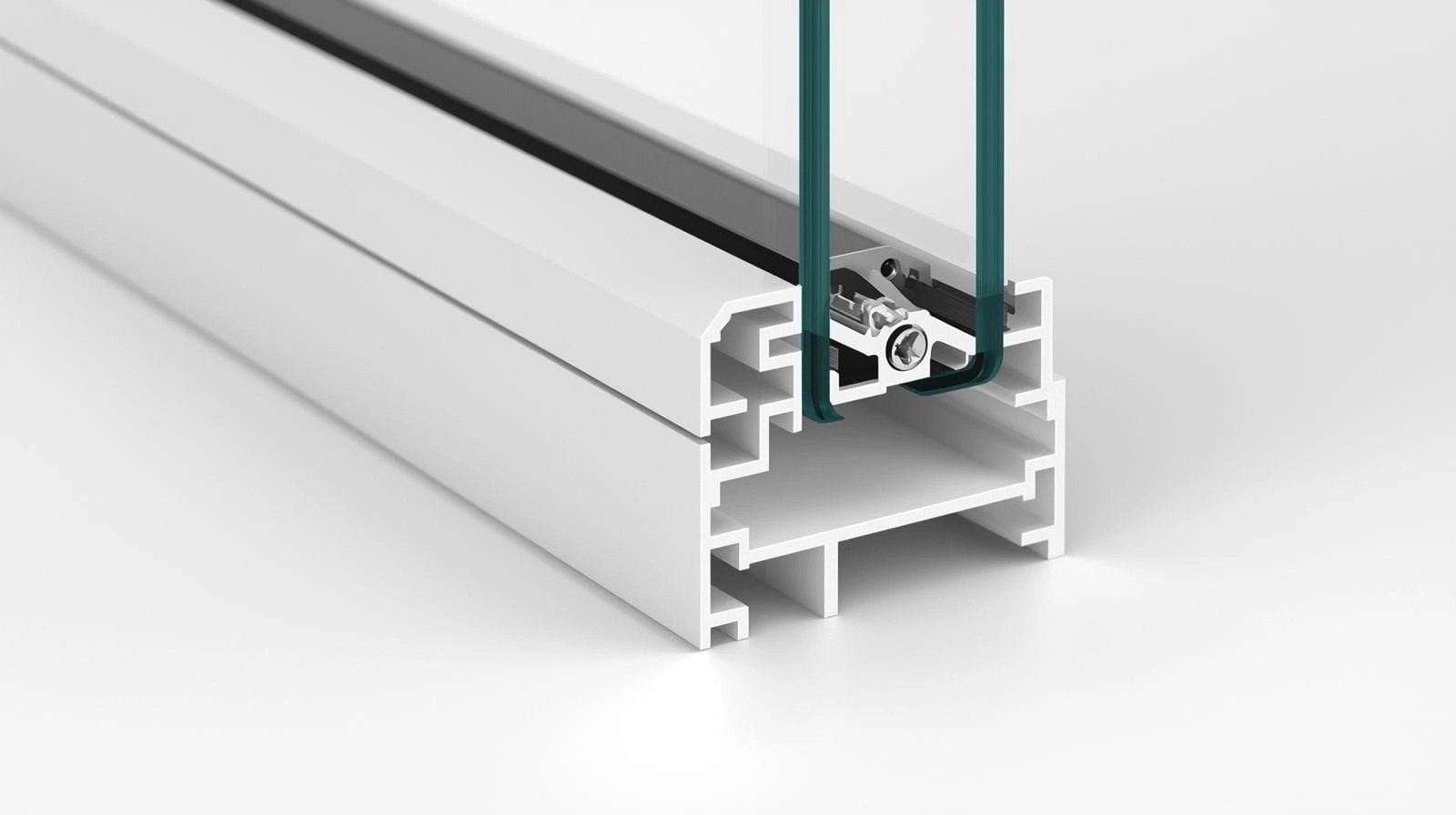

Thermal break bar visible in the window frame cross section
The continuous PA66 break bar isolates the outer and inner aluminium.

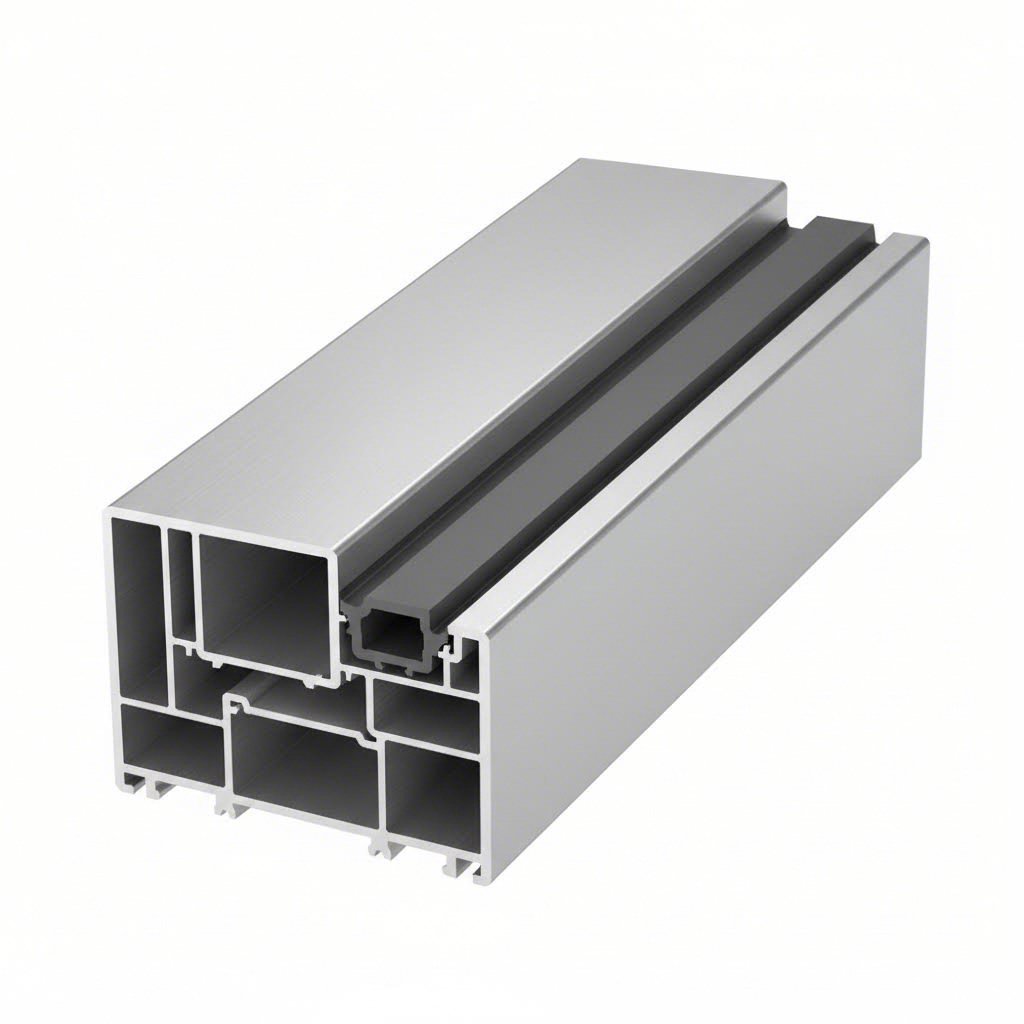

Multi-chamber aluminium profile cross section with the insulation bar cut through
Chambers in the profile cross section — stiffness and drainage run through the cavity layout, not the wall thickness alone.

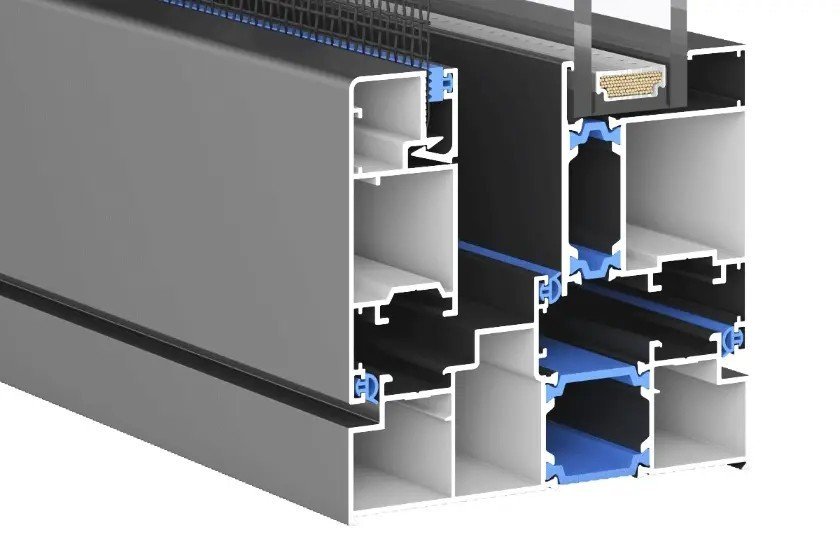

Thermally broken aluminium profile with the polyamide bridge
The polyamide bridge breaks the conductive path that would otherwise run across the frame.
Profile cross sections and a glazed edge on the showroom display rack
Sections on the same platform, sized for the leaf load and the threshold.
Thermal break bar detail on the extrusion line
Thermal break bar, second detail — continuous PA66 from the extrusion line.
02

Hardware

Fixed, manual tilt or motorised: the opening choice follows roof access, and a motorised leaf is quoted where the opening sits above reach.

Ventilation

Fixed / manual tilt / motorised

Reach

Motorised above reach

Gasket

Roof-grade, full perimeter

Check

Cycled as the leaf is set

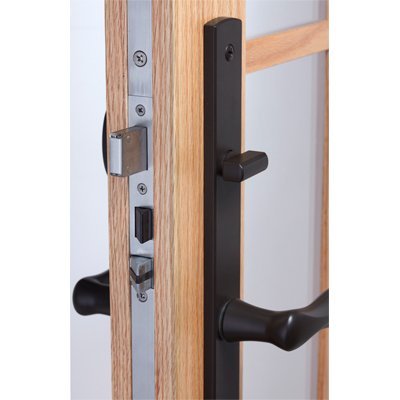

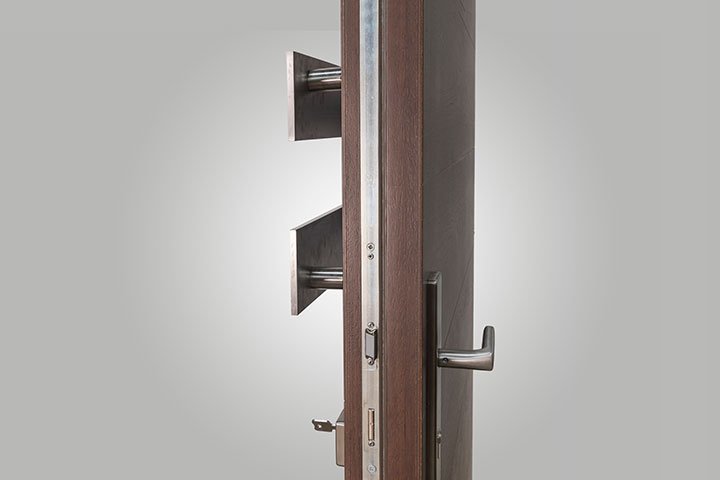

Multi-point locking bolt points on a door leaf edge
Multi-point locking — the handle drives bolt points top, bottom and on the meeting stile, not one edge.

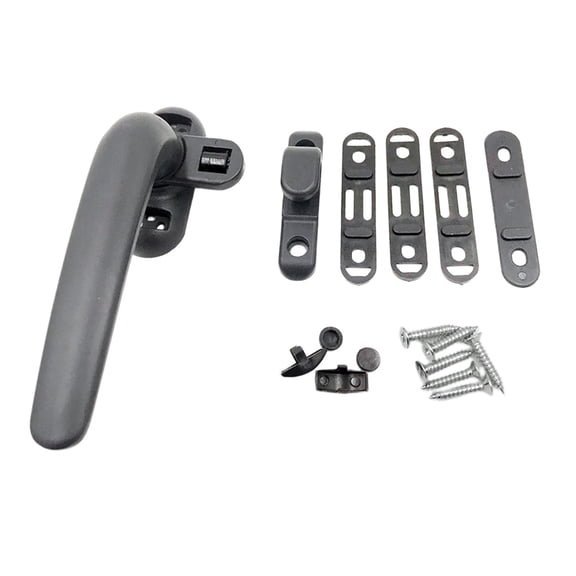

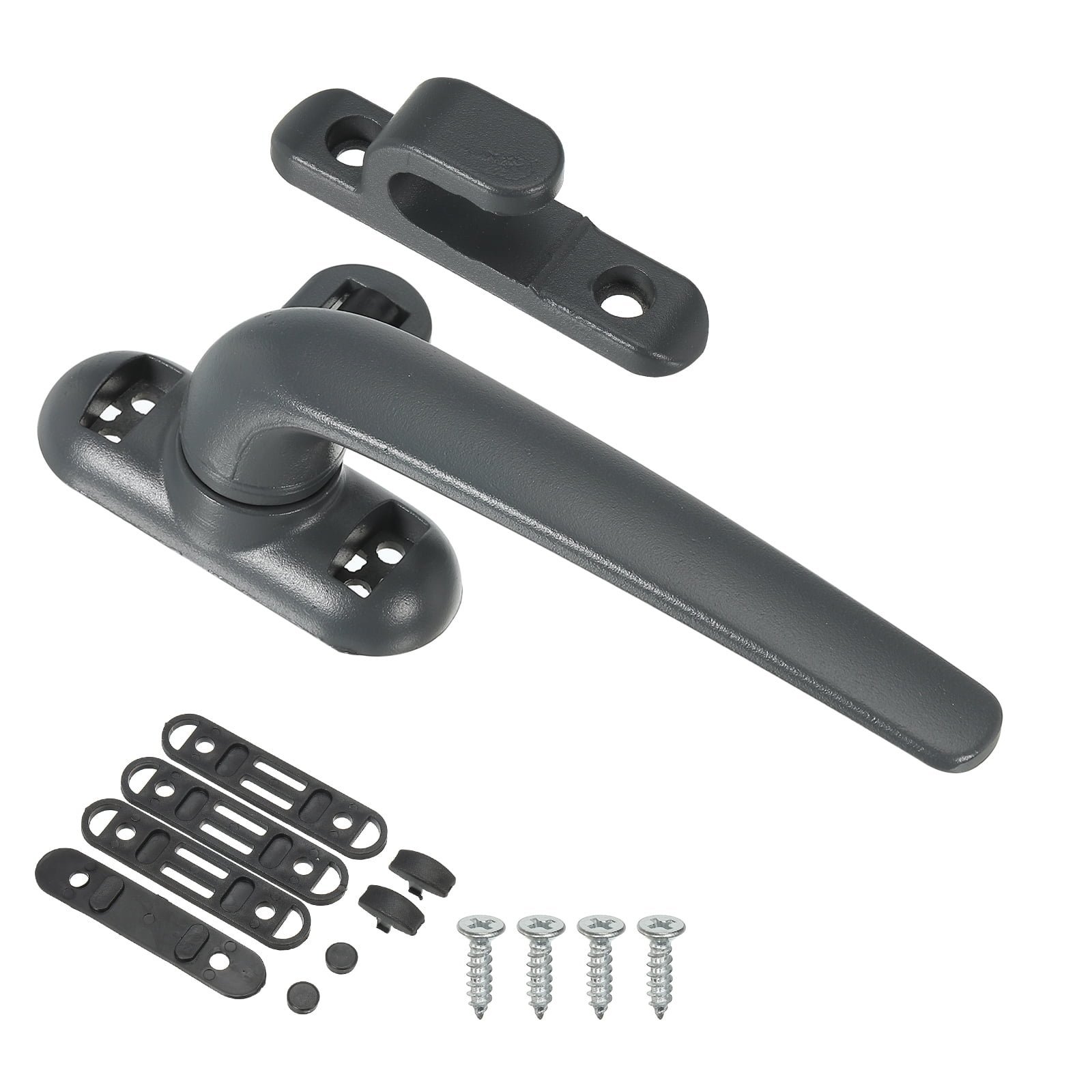

Window handle with base plate and strike set and fixing screws
Handle, base plate and strike set — the full set, fitted and cycled before dispatch.
Dark lever handle on a white door leaf

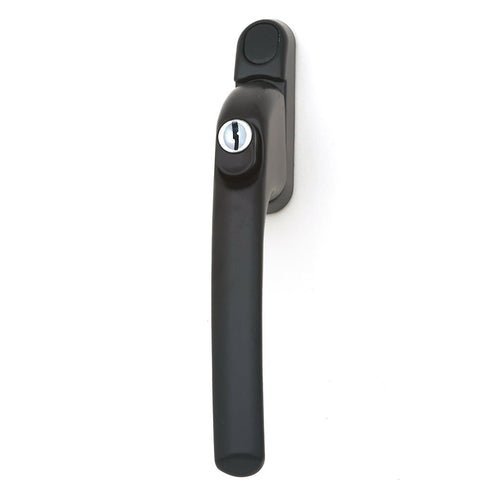

Key-operated handle for ground-floor and security specifications.
Metal lever handle catching the light on a timber door

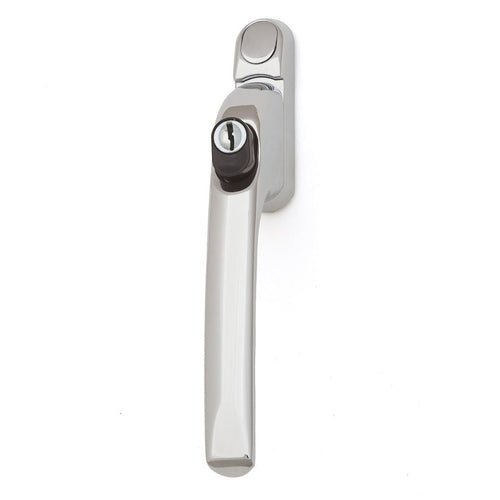

Metal finish for clean, high-traffic interior positions.
Steel entrance door with a multi-point lock and keypad
Strike and fixings match the handle set; nothing is improvised on site.
Handle sets laid out for the fitting line
Every handle set is matched to the sash before the unit is built.
Gloved hands fitting a corner bracket and hardware into an aluminium profile
Fitted on the line, not on site — the corner bracket and its fasteners go in as one operation.
Corner bracket and hardware components held in a gloved hand
The corner bracket is what ties the joint together; it is cut and drilled to match the profile it drives.
03

Installation

Factory-assembled and pre-glazed, so the tolerance work is done under a roof. On site the build is a three-zone detail — air, insulation, weatherproofing — and every crate arrives with the install guide and the sealant schedule for that market.

Arrives

Factory-assembled

Detail

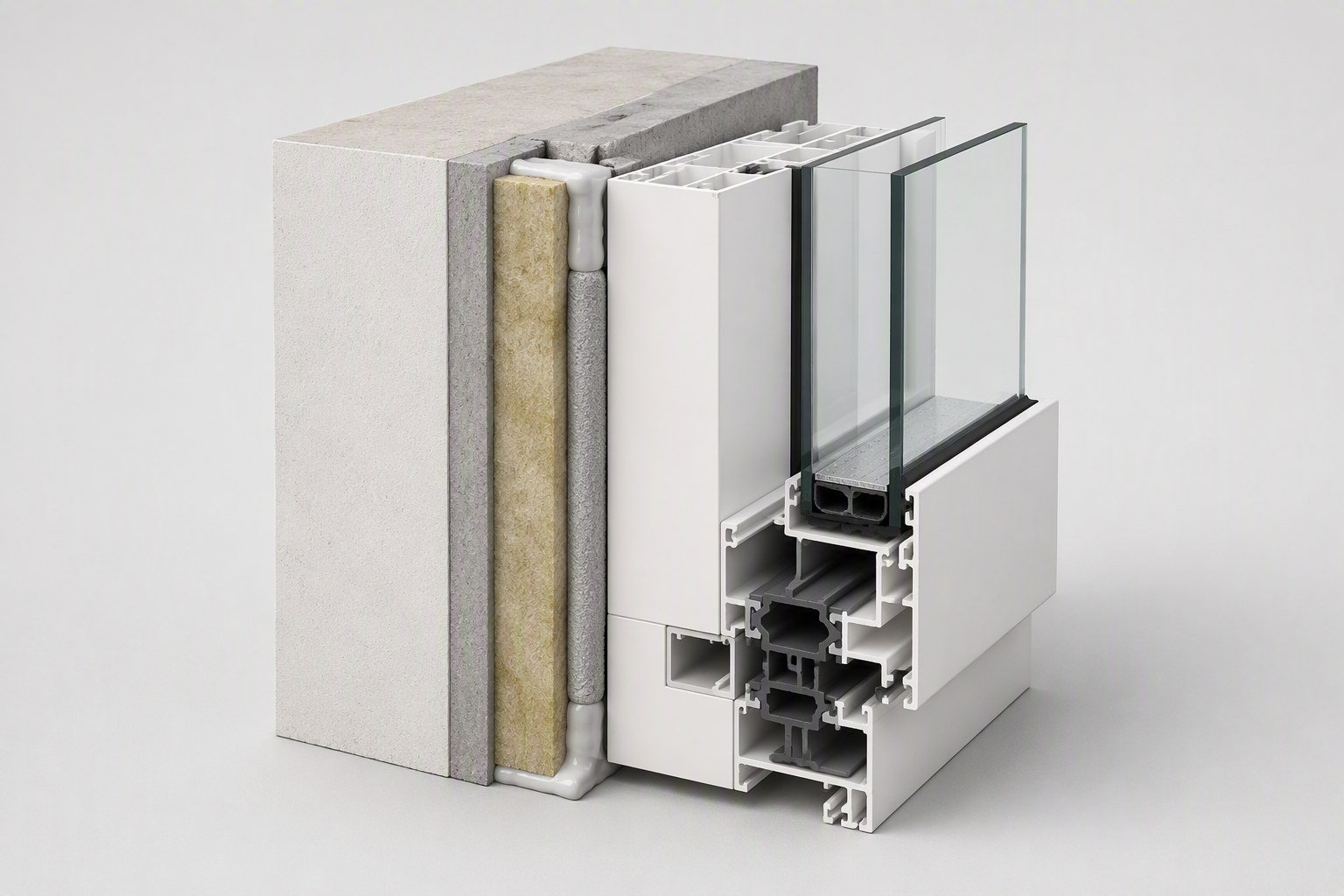

3-zone: air / insulation / water

Guide

Per-crate install sheet

Sealant

Scheduled per market

Ivy-clad elevation with the window openings left in view
The opening condition on a real elevation — each layer does one job and the details are not mixed.
Gasket line being run into the sash profile
Every glazed unit is sealed along the gasket line before it leaves the shop.
Extruded gasket stock racked in the factory store
Gasket is stocked as a schedule, not a habit — the compound and the section are named per market.
The same gasket run seen across the line

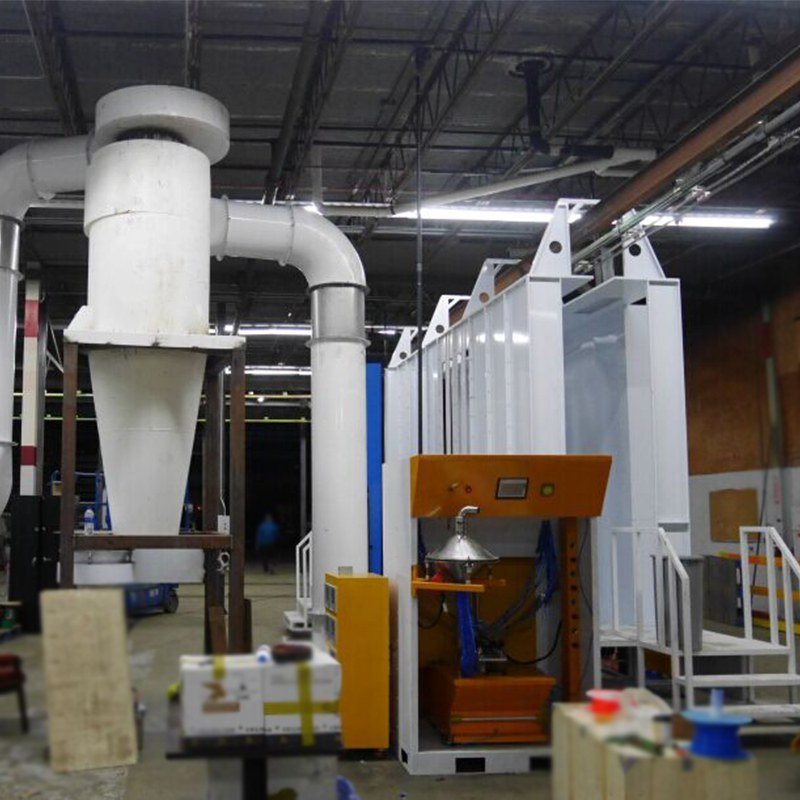

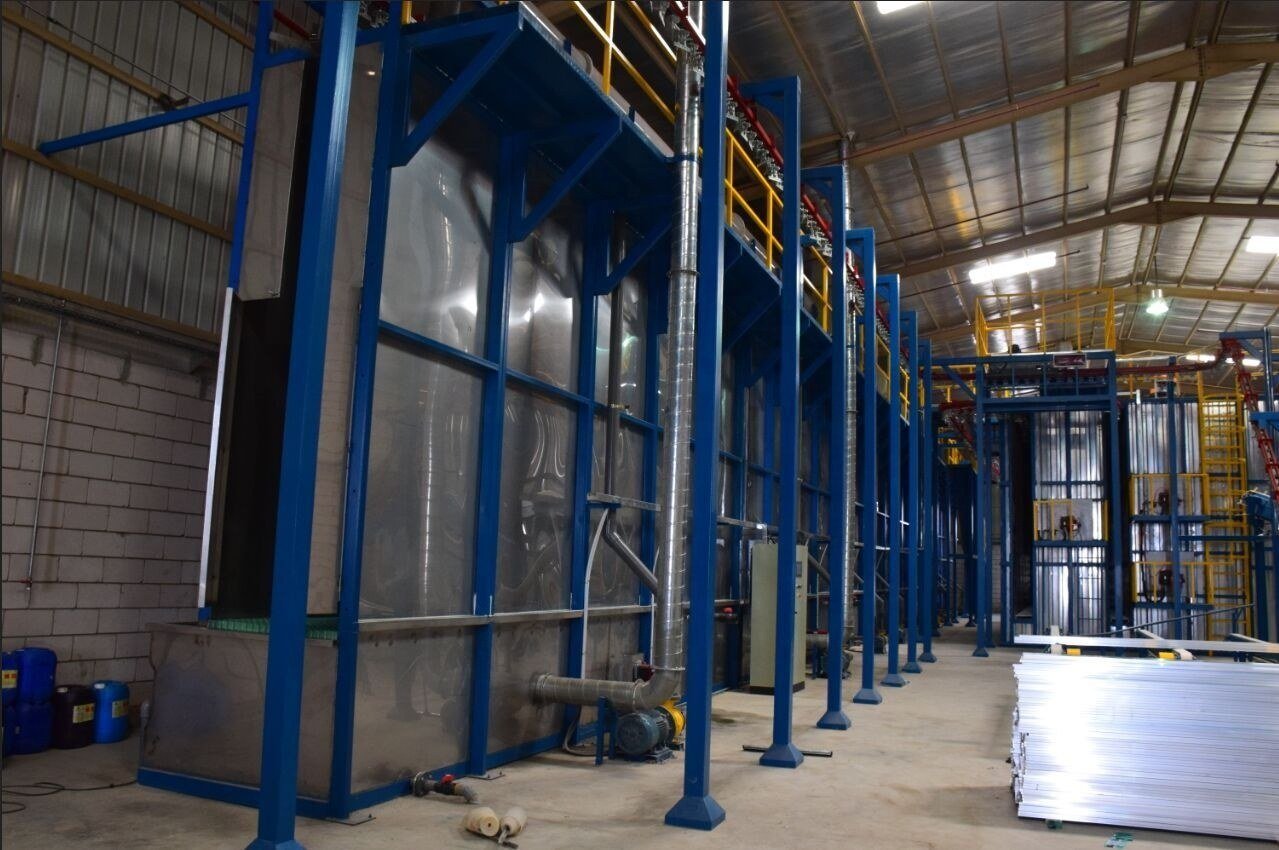

Pre-treatment and powder coat — every profile runs the surface line before assembly.
Machinist cutting a component on the workshop line
The workshop line — components cut, machined and checked at the quality gate, before crating.
Die casting press forming the hardware components
Hardware is cast in-house, so the cam and gear match the profile it drives.

The system in short

Skylights are roof-integrated glazing units that bring daylight from the source into stairwells, halls and kitchens. SK-60 is a thermal-break frame with roof-grade gasket and full-perimeter flashing, fixed or with a motorized tilt vent on a rain sensor, sized for roofs from 5° to 55° pitch, up to 1,600 × 1,200 mm per leaf.

Flat and pitched skylight units with thermal-break frames and roof-grade gaskets, fixed or with a motorized tilt vent — the stairwell, hallway and kitchen-light specification. Units run to 1,600 × 1,200 mm per leaf, on roofs from 5° to 55° pitch.

The flashing is detailed to the roof membrane the site already has, and the gasket is roof-grade EPDM. A visual check twice a year is the full service schedule on a fixed unit; the motorized version adds a rain sensor with auto-close and battery hold-up.

SK-60 installed view
SK-60 — Skylights
SK-60 detail
SK-60 — detail

Models and sizes

Every SK-60 ships as one of the configurations below — specify by model code in your window schedule and it quotes line by line.

SK-60 FIXED

  • Fixed rooflight
  • Tempered low-E IGU

SK-60 TILT

  • Manual tilt vent
  • Tempered IGU

SK-60 MOTOR

  • Motorized tilt, rain sensor
  • Tempered IGU

SK-60 BAND

  • Linear daylight band
  • Tempered IGU units

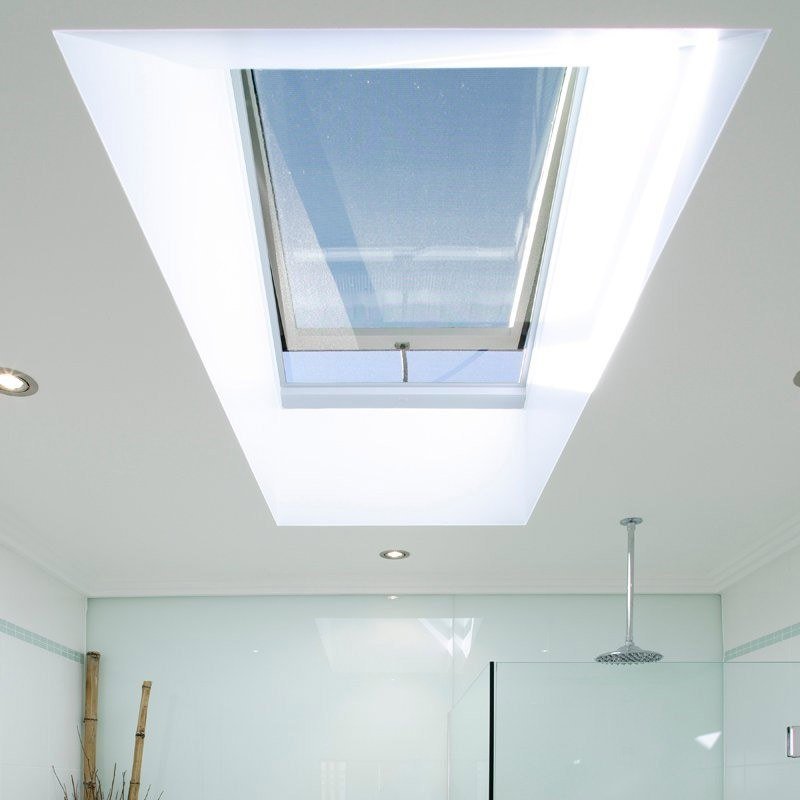

SK-60 configurations in place
SK-60 — configurations in place

Specifications

Pitch
Flat (5°) to 55° roofs
Unit size
Up to 1,600 × 1,200 mm per leaf
Glazing
Tempered IGU, solar-control or low-E
Ventilation
Fixed, manual tilt or motorized tilt
Waterproofing
Full-perimeter flashing, roof-grade gasket
Standards
Configured to local roof code per project
SK-60 profile and glazing detail
SK-60 — profile and glazing detail

Material & craft

The layers held to specification on every SK-60 unit — the section drawing above, written out.

Frame

Frame

A thermal-break frame with a roof-grade gasket and full-perimeter flashing — fixed, or with a motorized tilt vent on a rain sensor with battery hold-up.

Glazing

Glazing

Tempered IGU, solar-control or low-E; units up to 1,600 × 1,200 mm per leaf, sized for roofs from 5° to 55° pitch.

Band case

Band case

The SK-60 BAND linear daylight unit runs the whole circulation — halls and corridors lit from the source.

What it's worth to you

Skylights installed on a residential elevation

Daylight lands where a room has no wall to give one — stairwells, halls, the kitchen worktop.

The rain sensor closes the vent and the battery holds it shut: the roof position nobody is watching.

Pairs with the SR-200 roof for the vertical-plus-horizontal daylight case, under one 15-year frame warranty.

Specify Skylights

Send the project location, the opening sizes and the finish. Drawings, window schedules or a specification can be attached — quoting is done against the drawings, not a price list.

Request a quotation

Fields marked * are required. Drawings, CAD or a window schedule can be attached — up to 5 MB.

Products of interest
Skylights
Attach drawing / schedule (dwg, pdf, xls — max 5 MB)

Guaranteed response within 24 hours, every inquiry. No price lists are shared outside the quotation.

Where it is specified

The sites we build this system for, and what the schedule changes in each one.

Stairwells

Daylight lands where a room has no wall to give one.

Halls and corridors

The long SK-60 BAND unit lights the whole circulation.

Kitchens

Morning light over the worktop, vent on the rain sensor.

Flat-roof extensions

Full-perimeter flashing for the membrane the site already has.

Garden rooms

Pairs with the SR-200 roof for the vertical plus horizontal daylight case.

Options and finishes

Pitch
Flat (5°) to 55° roofs
Unit size
Up to 1,600 × 1,200 mm per leaf
Glazing
Tempered IGU, solar-control or low-E
Ventilation
Fixed, manual tilt or motorized tilt
Waterproofing
Full-perimeter flashing, roof-grade gasket

Finish

Anodised Natural

Anodised Silver

Anthracite · RAL 7016

Graphite · RAL 7024

Jet Black · RAL 9005

Traffic White · RAL 9016

Cream · RAL 1015

Champagne · RAL 1019

Ash Natural

Walnut Dark

Bronze

Copper

View all finishes

Design features

Flat (5°) to 55° pitch roofs

Units to 1,600 × 1,200 mm per leaf

Tempered IGU, solar-control or low-E

Fixed, manual tilt or motorized tilt

Full-perimeter flashing, roof-grade gasket

Rain sensor with auto-close and battery hold-up

Glass build

Two choices set what the glass does in a SK-60: which coating is on it, and what fills the cavity. The coating sets the solar figure. The gas moves the U-value and leaves the solar figure where it was — which is why the two are decided separately. The values below are published by the glass manufacturers for the build named; they are centre-of-glass figures, and the whole-window value for a configuration is read from the report that covers it.

BuildSHGCU, centre of glassWhere it is chosen
LoE-180, argon0.690.26High solar gain, cold climate
LoE-272, argon0.410.25Balanced, the usual default
LoE-366, argon0.270.24Solar control, west and south glass
LoE-366 with LoE-i89 on #4, argon0.270.20Solar control with the lowest U-value

NFRC centre-of-glass values for a 3/4 in two-pane unit with 3 mm lites and a 13 mm argon cavity. The spacer is the third lever and behaves differently again: it works at the edge of the unit, so it shows in the whole-window value rather than here.

Full glass performance tables, including air against argon and EN 673 values →

Buying & delivery

The commercial terms behind the SK-60 — minimum order, quotation, payment, packing and warranty — are the same on every quotation and sit on the commercial terms for roof glazing. Buying to resell, or to fabricate the line yourself? supply route for roof glazing covers the supplier view of the same schedule.

Request a quote for this system
Lead time
35–45 days from approved shop drawings. Assembly, glazing and quality control sit inside the quoted lead time, not on top of it.
Standards on this system
Configured to the local roof code at design stage. Sloped and horizontal glazing is safety material to SANS 10400-N:2012, and the assembly answers SANS 613; the flashing schedule is set to the roof pitch at drawing stage.Source documents: SANS 10400-N·SANS 613
Documents and crating
The frame, flashing and glass schedules ship in the shop drawing package, free, within three working days of approved architectural drawings. The flashing set follows the roof pitch at drawing stage. Test reports are issued on request.

Documentation

Data sheet

System specifications, model codes and glazing schedule, as a PDF.

Brochure

Full-range presentation for tender packs and client meetings.

CAD sections & BIM families

Section blocks and families for inclusion in project documentation.

Ask for it

Specification clauses

Draft specification text for the drawing package, per system.

Ask for it

RFQ template

The inquiry sheet our quote team needs to answer within 24 hours.

Open the downloads

Confirm before the order is placed

Six items hold up an order on the SK-60 more often than anything else. None of them is decided here; each one has to be settled on the project side before the drawing set is frozen.

Rough opening, not frame size

Confirm the structural opening and the reveal build-up. The frame is ordered to the approved drawing, and the drawing is what the quotation is built from.

The opening is quoted before the render and the closing detail, then the reveal takes back the clearance.

Glass build

Confirm pane thickness, coating, spacer and cavity gas as one line. The tested configuration is the one the report covers.

Glass specified by thickness alone. The coating, spacer and gas move the U-value and the SHGC independently.

Operation and handing

Confirm the opening direction, the handing and the number of leaves, and say which side the handing is read from.

Handing recorded from the inside on one schedule and the outside on another.

Finish

Confirm the RAL or anodising grade, and whether the address needs a marine-grade schedule.

The finish is picked from a screen, and the coastal requirement is raised after production has started.

Hardware

Confirm handle type, locking point count, and whether the market requires key-operated locking.

Hardware assumed standard; the site then needs keyed-alike cylinders that were never on the order.

Documents with the shipment

Confirm which reports and declarations travel with the crate. A certificate is issued per configuration, not per product family.

Test documentation requested after shipment, when the report for that configuration has to be re-issued.

Drainage and roof load

Confirm the drainage path and the load the supporting structure carries.

The roof load is assumed by the frame supplier and by the builder on opposite assumptions.

Who confirms each part

No single party holds the whole decision. The drawing set is the one place they meet.

Buyer or developer

Opens the order: the standard the project has to meet, and the market it ships to.

Designer or architect

Sets the configuration: sizes, operation, finish and the glass build.

Structural engineer

Where the market requires it, sets the wind load the opening is rated to.

Factory

Confirms what can be built to that drawing, and issues the report for the configuration.

Everything else on the commercial side — minimum order, quotation, payment, packing and warranty — is the same on every order and sits on the commercial terms page.

Compare with the other glass space systems

Every system in this category on one table — the platform it shares, the opening it carries and the glazing it takes. Figures come from each system record, not retyped here.

4 glass space systems in the catalogue
CodeSystemPlatformGlazing options
SR-200SunroomsFixed glass or polycarbonate
LP-120Louvered PergolasNo glazing — louvered roof
GR-100Glass Railings15–19 mm laminated
SK-60Skylights — this systemTempered low-E IGU

Frequently asked

Roof-grade EPDM gaskets and a self-draining channel — a visual check twice a year is the full service schedule.

Other systems on the same platform

All systems
Glazed sunroom and terrace enclosure built on site

SR-200

Sunrooms

Aluminium frame · glass roof · up to 7 m span

Frameless glass balustrade and screen assembled in the workshop

GR-100

Glass Railings

Tempered laminated · post-free · floor or wall channel

Specify SK-60 for your project

Request a quote

The Roof-integrated configuration is quoted unit by unit, within 24 hours.

Prefer to talk it through?

Send a drawing or a one-line brief on WhatsApp.

+86 177 0868 3991 — quotation within 24 hours, shop drawings free in 3 working days.
