Sliding Patio Doors

SD-50 — 2, 3 or 4-track sliding · fixed panels between sliders

Questions on this system — sizes, glazing, lead time?

Ask on WhatsApp

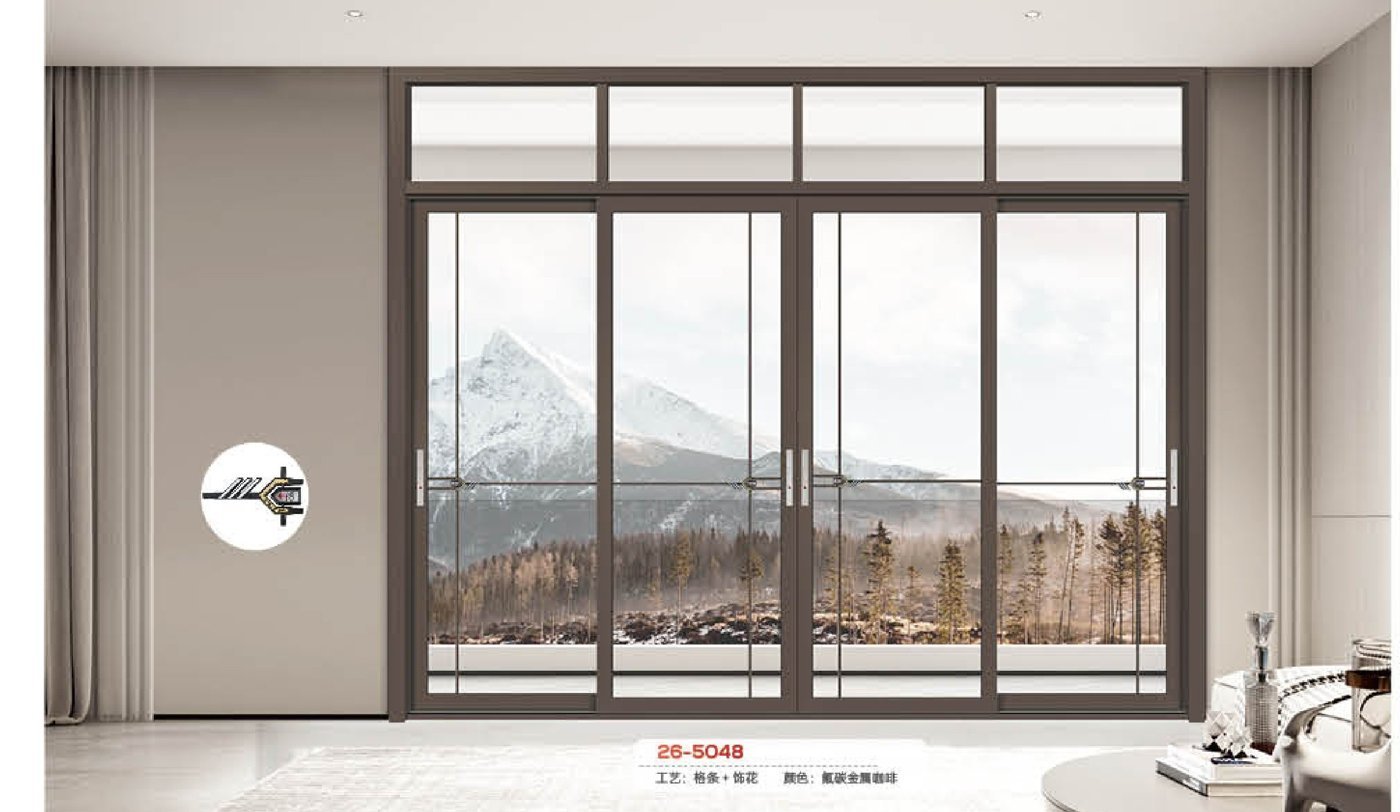

Sliding glass wall in the showroom, the terrace beyond

SD-50

The everyday patio wall — two to four tracks with fixed glazing between.

2, 3 or 4-track sliding · fixed panels between sliders

Configurations
16
Glazing options
8
Lead time
30–40 days
Warranty
15 yr

Configurations

16

Glazing options

8

Lead time

30–40 days

Warranty

15 yr

Both documents are free — quoted against your project within 24 hours.

123

SD-50 frame section, thermal-break build. Photographed section, hardware and installation detail below.

What the section drawing decides

High-end custom is decided in the section drawing, not the brochure. These four layers are held to specification on every SD-50 unit we ship.

01

2, 3 or 4 tracks

Overlapping and parallel layouts are both offered, so the same frame serves a terrace run and a tight balcony. A leaf runs up to 1,100 x 2,600 mm.

02

Anti-lift pins plus central lock

Pins stop a leaf being lifted off the track; the central multi-point lock is what closes the meeting stile.

03

8-20 mm, tempered or IGU

The flush interior track integrates drainage. A screen option sits in the frame rather than on top of it.

04

Track count is named in the report

EN 14351-1 and EN 13830. Both are quoted before production because the report names the track layout, not just the product family.

Technical detail

The section, the hardware and the fixings — photographed, not rendered. This is the level of detail your drawing office specifies against and your site crew installs to, on every unit that leaves the line.

01

Profile cross-section

Two, three or four tracks, overlapping or parallel, so the same frame serves a terrace run and a tight balcony. A leaf runs to 1,100 × 2,600 mm and the flush interior track integrates its own drainage.

Tracks

2, 3 or 4, overlapping or parallel

Leaf

Up to 1,100 × 2,600 mm

Track

Flush interior, drainage integrated

Screen

In the frame, not on top

Cut aluminium profile sections held in a gloved hand beside a PA66 GF25 thermal break sample
Profile sections cut open: the thermal break, the chambers and the glazed edge read as three separate things.
Thermal break bar visible in the window frame cross section
The continuous PA66 break bar isolates the outer and inner aluminium.
Multi-chamber aluminium profile cross section with the insulation bar cut through
Chambers in the profile cross section — stiffness and drainage run through the cavity layout, not the wall thickness alone.
Thermally broken aluminium profile with the polyamide bridge
The polyamide bridge breaks the conductive path that would otherwise run across the frame.
Profile cross sections and a glazed edge on the showroom display rack
Sections on the same platform, sized for the leaf load and the threshold.
Thermal break bar detail on the extrusion line
Thermal break bar, second detail — continuous PA66 from the extrusion line.
02

Hardware

Anti-lift pins stop a leaf being lifted off the track and the central multi-point lock is what closes the meeting stile. Both are quoted as standard on this line.

Anti-lift

Pins at the top track

Locking

Central multi-point

Security

Both scheduled as standard

Check

Cycled per configuration

Multi-point locking bolt points on a door leaf edge
Multi-point locking — the handle drives bolt points top, bottom and on the meeting stile, not one edge.
Window handle with base plate and strike set and fixing screws
Handle, base plate and strike set — the full set, fitted and cycled before dispatch.
Dark lever handle on a white door leaf
Key-operated handle for ground-floor and security specifications.
Metal lever handle catching the light on a timber door
Metal finish for clean, high-traffic interior positions.
Steel entrance door with a multi-point lock and keypad
Strike and fixings match the handle set; nothing is improvised on site.
Handle sets laid out for the fitting line
Every handle set is matched to the sash before the unit is built.
Gloved hands fitting a corner bracket and hardware into an aluminium profile
Fitted on the line, not on site — the corner bracket and its fasteners go in as one operation.
Corner bracket and hardware components held in a gloved hand
The corner bracket is what ties the joint together; it is cut and drilled to match the profile it drives.
03

Installation

Factory-assembled and pre-glazed, so the tolerance work is done under a roof. On site the build is a three-zone detail — air, insulation, weatherproofing — and every crate arrives with the install guide and the sealant schedule for that market.

Arrives

Factory-assembled

Detail

3-zone: air / insulation / water

Guide

Per-crate install sheet

Sealant

Scheduled per market

Ivy-clad elevation with the window openings left in view
The opening condition on a real elevation — each layer does one job and the details are not mixed.
Gasket line being run into the sash profile
Every glazed unit is sealed along the gasket line before it leaves the shop.
Extruded gasket stock racked in the factory store
Gasket is stocked as a schedule, not a habit — the compound and the section are named per market.
The same gasket run seen across the line
Pre-treatment and powder coat — every profile runs the surface line before assembly.
Machinist cutting a component on the workshop line
The workshop line — components cut, machined and checked at the quality gate, before crating.
Die casting press forming the hardware components
Hardware is cast in-house, so the cam and gear match the profile it drives.

The system in short

A sliding patio door is a horizontal-glide door in which leaves run on concealed rollers over a low-profile track, with fixed glazing between them wherever the design wants it. SD-50 runs 2 to 4 tracks, panels up to 1,100 × 2,600 mm, with anti-lift pins and a central multi-point lock — the everyday patio wall for warm-climate markets.

A precision-sliding system with concealed rollers and a low-profile track, configured from 2 to 4 tracks with fixed panes wherever the design needs them. Leaves carry up to 150 kg each on anti-lift pins, and a central multi-point lock secures every leaf in the set.

The track is detailed with drainage and a screen channel at design stage, so the wall is finished the way the site will live with it. Fixed bays and sliders share one face width and one gasket line — the whole wall reads as a single glazing unit with some leaves that move.

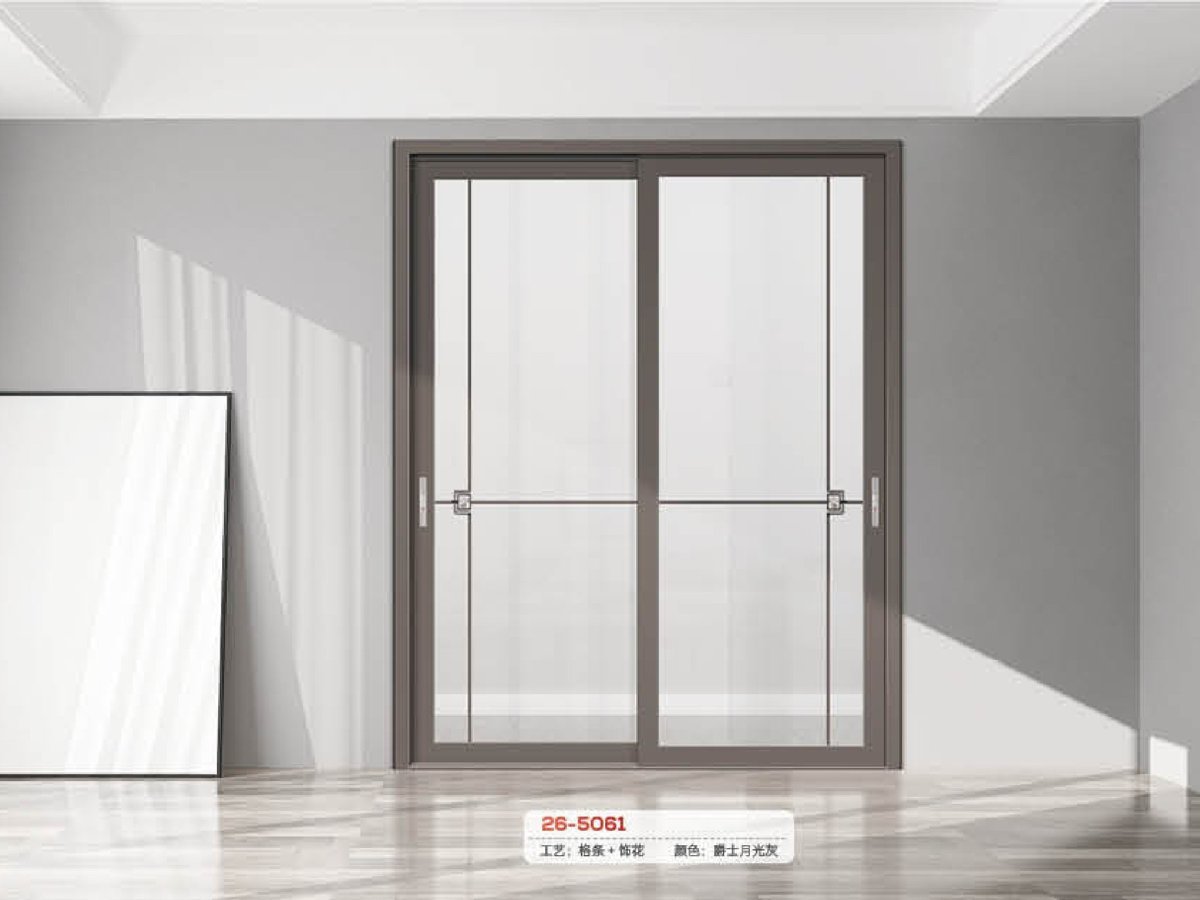

SD-50 installed view
SD-50 — Sliding Patio Doors
SD-50 detail
SD-50 — detail

Models and sizes

Every SD-50 ships as one of the configurations below — specify by model code in your window schedule and it quotes line by line.

SD-50 2T

  • Two-track, 1 sliding + 1 fixed
  • 8–20 mm tempered or IGU

SD-50 3T

  • Three-track, 2 sliding + fixed
  • 8–20 mm IGU

SD-50 4T

  • Four-track, 2 sliding + 2 fixed
  • 8–20 mm IGU

SD-50 SCREEN

  • Integrated screen track, both leaves
  • Fibreglass or stainless mesh

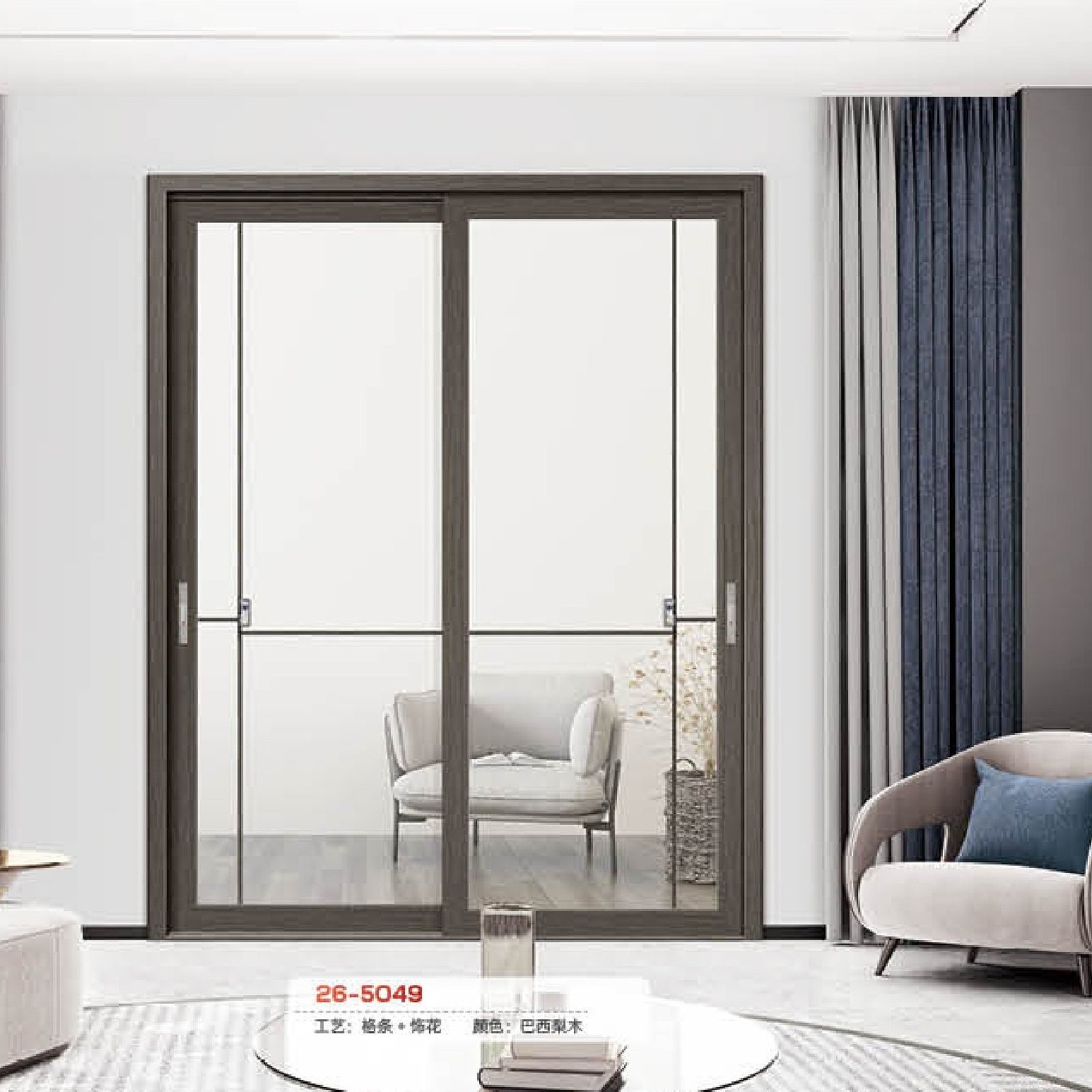

SD-50 configurations in place
SD-50 — configurations in place

Specifications

Tracks
2, 3 or 4, overlapping or parallel
Panel size
Up to 1,100 × 2,600 mm per leaf
Track
Flush interior, drainage integrated
Glazing
8–20 mm, tempered or IGU, screen option
Security
Anti-lift pins, central multi-point lock
Standards
Tested to EN 14351-1, EN 13830

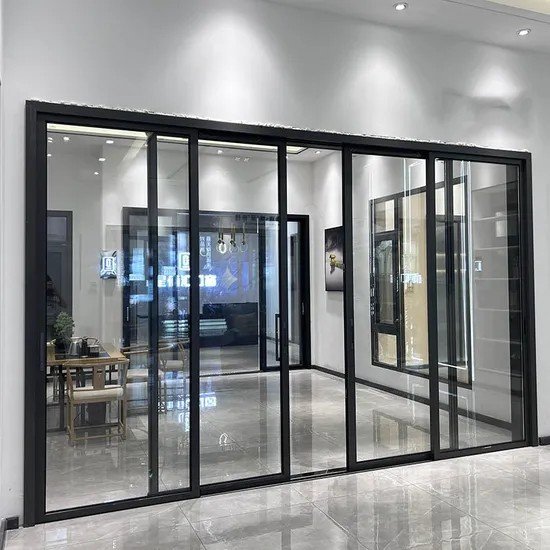

SD-50 profile and glazing detail
SD-50 — profile and glazing detail

Material & craft

The layers held to specification on every SD-50 unit — the section drawing above, written out.

Track & rollers

Track & rollers

Concealed rollers on a low-profile, flush interior track — 2 to 4 tracks, overlapping or parallel, with drainage built in.

Leaves

Leaves

Panels up to 1,100 × 2,600 mm with anti-lift pins on every leaf and a central multi-point lock where the leaves meet.

Screen pairing

Screen pairing

The integrated sliding screen track runs both leaves — fibreglass or stainless mesh — so the opening stays open in the rainy season.

What it's worth to you

Sliding Patio Doors installed on a residential elevation

The everyday patio wall: one leaf moves, the rest stays glazed, and the threshold stays walkable.

Fixed panels take the party-wall load on townhouse elevations — the slider takes the view.

Paired with the SC-40 range it is the tropical specification: open window, screened out, same platform as the fixed wall.

Specify Sliding Patio Doors

Send the project location, the opening sizes and the finish. Drawings, window schedules or a specification can be attached — quoting is done against the drawings, not a price list.

Request a quotation

Fields marked * are required. Drawings, CAD or a window schedule can be attached — up to 5 MB.

Products of interest
Sliding Patio Doors
Attach drawing / schedule (dwg, pdf, xls — max 5 MB)

Guaranteed response within 24 hours, every inquiry. No price lists are shared outside the quotation.

Where it is specified

The sites we build this system for, and what the schedule changes in each one.

Warm-climate patios

The default garden wall — one leaf slides, the rest stays glazed.

Townhouse side elevations

Fixed panels take the party-wall load; the slider takes the view.

Balcony access

Low-profile track keeps the threshold walkable.

Retail frontages

Wide fixed bays with a single service leaf.

Tropical ventilation

Pair with the SC-40 screen so the opening stays open in the rainy season.

Options and finishes

Tracks
2, 3 or 4, overlapping or parallel
Track
Flush interior, drainage integrated
Panel size
Up to 1,100 × 2,600 mm per leaf
Glazing
8–20 mm, tempered or IGU, screen option
Security
Anti-lift pins, central multi-point lock

Finish

Anodised Natural

Anodised Silver

Anthracite · RAL 7016

Graphite · RAL 7024

Jet Black · RAL 9005

Traffic White · RAL 9016

Cream · RAL 1015

Champagne · RAL 1019

Ash Natural

Walnut Dark

Bronze

Copper

View all finishes

Design features

Concealed rollers, low-profile track

2, 3 or 4 tracks, overlapping or parallel

Anti-lift pins on every leaf

Central multi-point lock

Integrated sliding screen track option

Flush interior track, drainage built in

Glass build

Two choices set what the glass does in a SD-50: which coating is on it, and what fills the cavity. The coating sets the solar figure. The gas moves the U-value and leaves the solar figure where it was — which is why the two are decided separately. The values below are published by the glass manufacturers for the build named; they are centre-of-glass figures, and the whole-window value for a configuration is read from the report that covers it.

BuildSHGCU, centre of glassWhere it is chosen
LoE-180, argon0.690.26High solar gain, cold climate
LoE-272, argon0.410.25Balanced, the usual default
LoE-366, argon0.270.24Solar control, west and south glass
LoE-366 with LoE-i89 on #4, argon0.270.20Solar control with the lowest U-value

NFRC centre-of-glass values for a 3/4 in two-pane unit with 3 mm lites and a 13 mm argon cavity. The spacer is the third lever and behaves differently again: it works at the edge of the unit, so it shows in the whole-window value rather than here.

Full glass performance tables, including air against argon and EN 673 values →

Buying & delivery

The commercial terms behind the SD-50 — minimum order, quotation, payment, packing and warranty — are the same on every quotation and sit on the commercial terms including FOB, CIF and DDP. Buying to resell, or to fabricate the line yourself? how a sliding set is supplied covers the supplier view of the same schedule.

Request a quote for this system
Lead time
30–40 days from approved shop drawings. Assembly, glazing and quality control sit inside the quoted lead time, not on top of it.
Standards on this system
Tested to EN 14351-1 and EN 13830. The assembly answers SANS 613 for wind, water and air, and the energy line sits in SANS 10400-XA:2021 Edition 2 on the same schedule; installation runs to SANS 10137 with the track set-out detail.Source documents: EN 14351-1·SANS 613·SANS 10400-XA·SANS 10137
Documents and crating
Hardware and glass schedules ship in the shop drawing package, free, within three working days of approved architectural drawings. Crated corner-protected with desiccant; a loading report per bay and a packing list per crate. Test reports are issued on request.

Documentation

Data sheet

System specifications, model codes and glazing schedule, as a PDF.

Brochure

Full-range presentation for tender packs and client meetings.

CAD sections & BIM families

Section blocks and families for inclusion in project documentation.

Ask for it

Specification clauses

Draft specification text for the drawing package, per system.

Ask for it

RFQ template

The inquiry sheet our quote team needs to answer within 24 hours.

Open the downloads

Confirm before the order is placed

Six items hold up an order on the SD-50 more often than anything else. None of them is decided here; each one has to be settled on the project side before the drawing set is frozen.

Rough opening, not frame size

Confirm the structural opening and the reveal build-up. The frame is ordered to the approved drawing, and the drawing is what the quotation is built from.

The opening is quoted before the render and the closing detail, then the reveal takes back the clearance.

Glass build

Confirm pane thickness, coating, spacer and cavity gas as one line. The tested configuration is the one the report covers.

Glass specified by thickness alone. The coating, spacer and gas move the U-value and the SHGC independently.

Operation and handing

Confirm the opening direction, the handing and the number of leaves, and say which side the handing is read from.

Handing recorded from the inside on one schedule and the outside on another.

Finish

Confirm the RAL or anodising grade, and whether the address needs a marine-grade schedule.

The finish is picked from a screen, and the coastal requirement is raised after production has started.

Hardware

Confirm handle type, locking point count, and whether the market requires key-operated locking.

Hardware assumed standard; the site then needs keyed-alike cylinders that were never on the order.

Documents with the shipment

Confirm which reports and declarations travel with the crate. A certificate is issued per configuration, not per product family.

Test documentation requested after shipment, when the report for that configuration has to be re-issued.

Threshold and floor build-up

Confirm the finished floor level and whether a flush, barrier-free threshold is required.

The threshold is decided on site, after the frame has been extruded to a standard sill.

Who confirms each part

No single party holds the whole decision. The drawing set is the one place they meet.

Buyer or developer

Opens the order: the standard the project has to meet, and the market it ships to.

Designer or architect

Sets the configuration: sizes, operation, finish and the glass build.

Structural engineer

Where the market requires it, sets the wind load the opening is rated to.

Factory

Confirms what can be built to that drawing, and issues the report for the configuration.

Everything else on the commercial side — minimum order, quotation, payment, packing and warranty — is the same on every order and sits on the commercial terms page.

Compare with the other door systems

Every system in this category on one table — the platform it shares, the opening it carries and the glazing it takes. Figures come from each system record, not retyped here.

7 door systems in the catalogue
CodeSystemPlatformGlazing options
LS-60Lift & Slide Doors10–16 mm tempered or laminated
BF-40Bi-Fold Doors8–16 mm tempered
SD-50Sliding Patio Doors — this system8–20 mm tempered or IGU
FD-60French Doors8–19 mm tempered or IGU
PV-75Pivot Doors19–25 mm laminated or IGU
SC-40Screen DoorsNo glazing — mesh screen door
ED-90Entry DoorsNo glazing — laminated core leaf

Frequently asked

Sliding carries up to ~150 kg per leaf on a lower track; lift & slide lifts the panel first and carries 300 kg — for wider openings we move up to lift & slide.

Other systems on the same platform

All systems
Four-panel bi-fold door folded open in the Foshan showroom

BF-40

Bi-Fold Doors

8-panel bi-fold · 75/90 mm profile · full glass

Tall French door in a lit corridor

FD-60

French Doors

Double-leaf hinged · full-glass sash · multi-point lock

Pivot door units ranged along the showroom wall

PV-75

Pivot Doors

Oversized entrance pivot · up to 2,100 × 3,000 mm

Specify SD-50 for your project

Request a quote

The 2, 3 or 4-track sliding configuration is quoted unit by unit, within 24 hours.

Prefer to talk it through?

Send a drawing or a one-line brief on WhatsApp.

+86 177 0868 3991 — quotation within 24 hours, shop drawings free in 3 working days.
