Smart Motorized Windows

SM-60 — Motorized opening · app, touch and voice control · rain sensor

Questions on this system — sizes, glazing, lead time?

Ask on WhatsApp
Motorised window overlooking the city skyline

SM-60

Windows that open with the weather — and with your voice.

Motorized opening · app, touch and voice control · rain sensor

Configurations
12
Glazing options
8
Lead time
35–45 days
Warranty
15 yr

Configurations

12

Glazing options

8

Lead time

35–45 days

Warranty

15 yr

Both documents are free — quoted against your project within 24 hours.

123

SM-60 frame section, thermal-break build. Photographed section, hardware and installation detail below.

What the section drawing decides

High-end custom is decided in the section drawing, not the brochure. These four layers are held to specification on every SM-60 unit we ship.

01

One servo per sash

The drive is integrated at the leaf, not in the frame head, so the same hardware suits casement, tilt-turn and sliding leaves. Operation stays under 45 dB.

02

Rain sensor and anti-crush limit

Both are safety functions, not convenience: the rain sensor closes on water, the anti-crush force limit stops the leaf on an obstruction.

03

Control is app, switch or voice

Scheduled routines run from the same controller. An open API lets a building management system take the same commands.

04

230 V or 12 V DC with battery hold-up

Power is quoted per site. The drive layer sits outside the glass and frame certification of the leaf it moves.

Technical detail

The section, the hardware and the fixings — photographed, not rendered. This is the level of detail your drawing office specifies against and your site crew installs to, on every unit that leaves the line.

01

Profile cross-section

One servo per sash, integrated at the leaf rather than in the frame head, so the same drive suits casement, tilt-turn and sliding leaves. Operation stays under 45 dB.

Drive

Integrated servo per sash

Sound

Under 45 dB operation

Power

230 V or 12 V DC

Hold-up

Battery, per site

Cut aluminium profile sections held in a gloved hand beside a PA66 GF25 thermal break sample
Profile sections cut open: the thermal break, the chambers and the glazed edge read as three separate things.
Thermal break bar visible in the window frame cross section
The continuous PA66 break bar isolates the outer and inner aluminium.
Multi-chamber aluminium profile cross section with the insulation bar cut through
Chambers in the profile cross section — stiffness and drainage run through the cavity layout, not the wall thickness alone.
Thermally broken aluminium profile with the polyamide bridge
The polyamide bridge breaks the conductive path that would otherwise run across the frame.
Profile cross sections and a glazed edge on the showroom display rack
Sections on the same platform, sized for the leaf load and the threshold.
Thermal break bar detail on the extrusion line
Thermal break bar, second detail — continuous PA66 from the extrusion line.
02

Hardware

Rain sensor auto-close and the anti-crush force limit are safety functions, not convenience: the first closes on water, the second stops the leaf on an obstruction.

Rain

Sensor auto-close

Anti-crush

Force limit on the leaf

Control

App, switch, voice, routine

Integration

Open API for BMS

Multi-point locking bolt points on a door leaf edge
Multi-point locking — the handle drives bolt points top, bottom and on the meeting stile, not one edge.
Window handle with base plate and strike set and fixing screws
Handle, base plate and strike set — the full set, fitted and cycled before dispatch.
Dark lever handle on a white door leaf
Key-operated handle for ground-floor and security specifications.
Metal lever handle catching the light on a timber door
Metal finish for clean, high-traffic interior positions.
Steel entrance door with a multi-point lock and keypad
Strike and fixings match the handle set; nothing is improvised on site.
Handle sets laid out for the fitting line
Every handle set is matched to the sash before the unit is built.
Gloved hands fitting a corner bracket and hardware into an aluminium profile
Fitted on the line, not on site — the corner bracket and its fasteners go in as one operation.
Corner bracket and hardware components held in a gloved hand
The corner bracket is what ties the joint together; it is cut and drilled to match the profile it drives.
03

Installation

Factory-assembled and pre-glazed, so the tolerance work is done under a roof. On site the build is a three-zone detail — air, insulation, weatherproofing — and every crate arrives with the install guide and the sealant schedule for that market.

Arrives

Factory-assembled

Detail

3-zone: air / insulation / water

Guide

Per-crate install sheet

Sealant

Scheduled per market

Ivy-clad elevation with the window openings left in view
The opening condition on a real elevation — each layer does one job and the details are not mixed.
Gasket line being run into the sash profile
Every glazed unit is sealed along the gasket line before it leaves the shop.
Extruded gasket stock racked in the factory store
Gasket is stocked as a schedule, not a habit — the compound and the section are named per market.
The same gasket run seen across the line
Pre-treatment and powder coat — every profile runs the surface line before assembly.
Machinist cutting a component on the workshop line
The workshop line — components cut, machined and checked at the quality gate, before crating.
Die casting press forming the hardware components
Hardware is cast in-house, so the cam and gear match the profile it drives.

The system in short

Smart motorized windows are ordinary sashes driven by an integrated servo — controlled by app, switch or voice, and closed automatically by a rain sensor. SM-60 puts that drive into casement, tilt-turn and sliding leaves at under 45 dB of operating noise, with an open API for building-management integration, for smart villas and assisted living.

Servo-driven sashes with app, switch and voice control, plus a rain sensor that closes the range automatically. The drive is selected per unit at design stage — a 40 kg sash and a 120 kg sash are not motorized the same way — and the operating noise stays under 45 dB.

The controller exposes an open API and standard relay outputs for building-management and smart-home integration, with scheduled routines for ventilation. Every sash remains manually operable on power failure: the drive disengages and the standard handle works as usual.

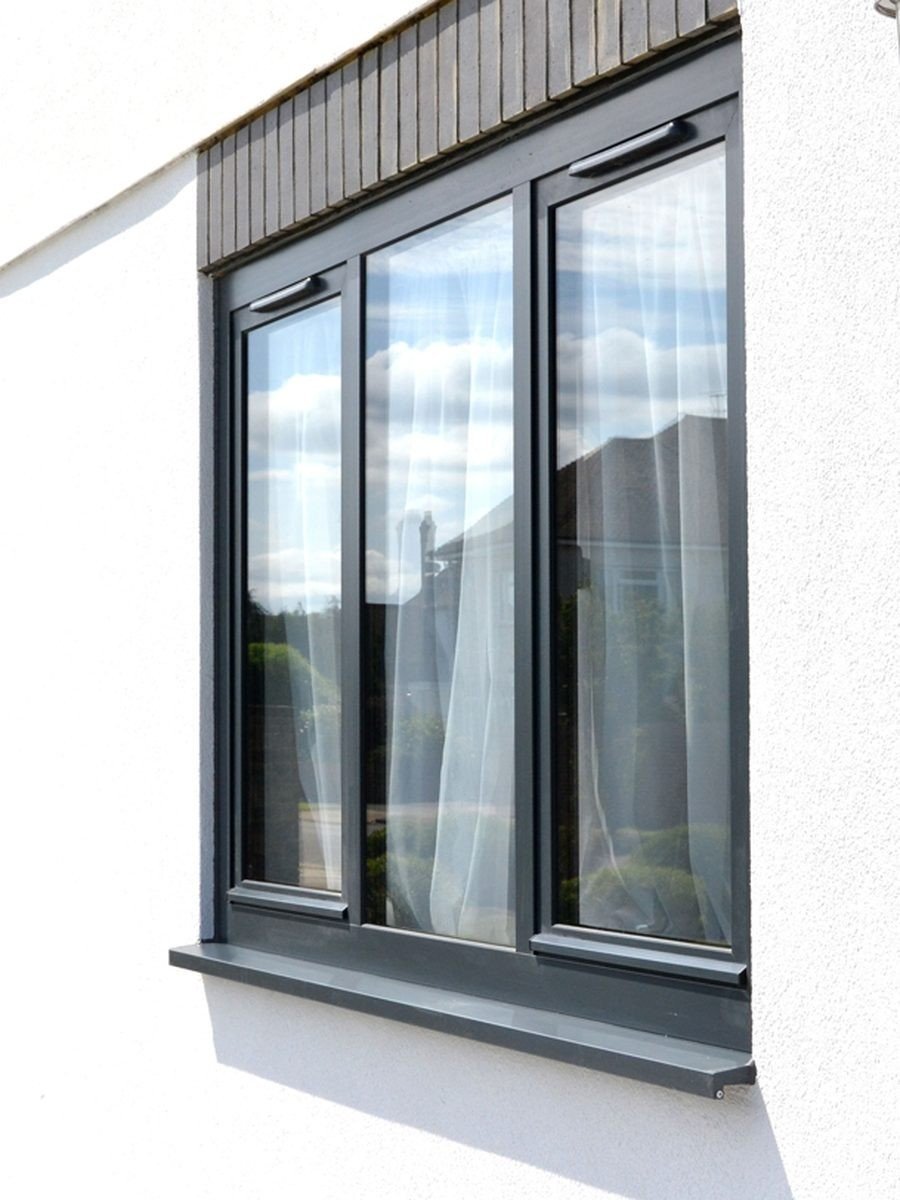

SM-60 installed view
SM-60 — Smart Motorized Windows
SM-60 detail
SM-60 — detail

Models and sizes

Every SM-60 ships as one of the configurations below — specify by model code in your window schedule and it quotes line by line.

SM-60 CAS

  • Motorized hinged sash
  • 6–24 mm single or IGU

SM-60 TILT

  • Motorized tilt-turn sash
  • Double IGU option

SM-60 SLIDE

  • Motorized sliding leaf
  • 8–20 mm IGU

SM-60 RAIN

  • Rain-sensor set, auto-close
  • Any action in the range

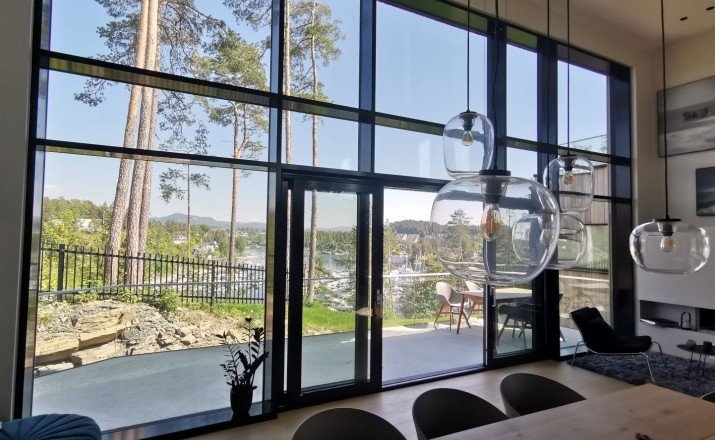

SM-60 configurations in place
SM-60 — configurations in place

Specifications

Drive
Integrated servo per sash, quiet < 45 dB operation
Control
App, wall switch, voice assistant, scheduled routines
Safety
Rain sensor auto-close, anti-crush force limit
Power
230 V or 12 V DC options, battery hold-up
Range
Casement, tilt-turn and sliding leaves
Integration
Open API for building management systems
SM-60 profile and glazing detail
SM-60 — profile and glazing detail

Material & craft

The layers held to specification on every SM-60 unit — the section drawing above, written out.

Drive

Drive

An integrated servo per sash, under 45 dB of operating noise, with the anti-crush force limit on every drive — 230 V or 12 V DC power options.

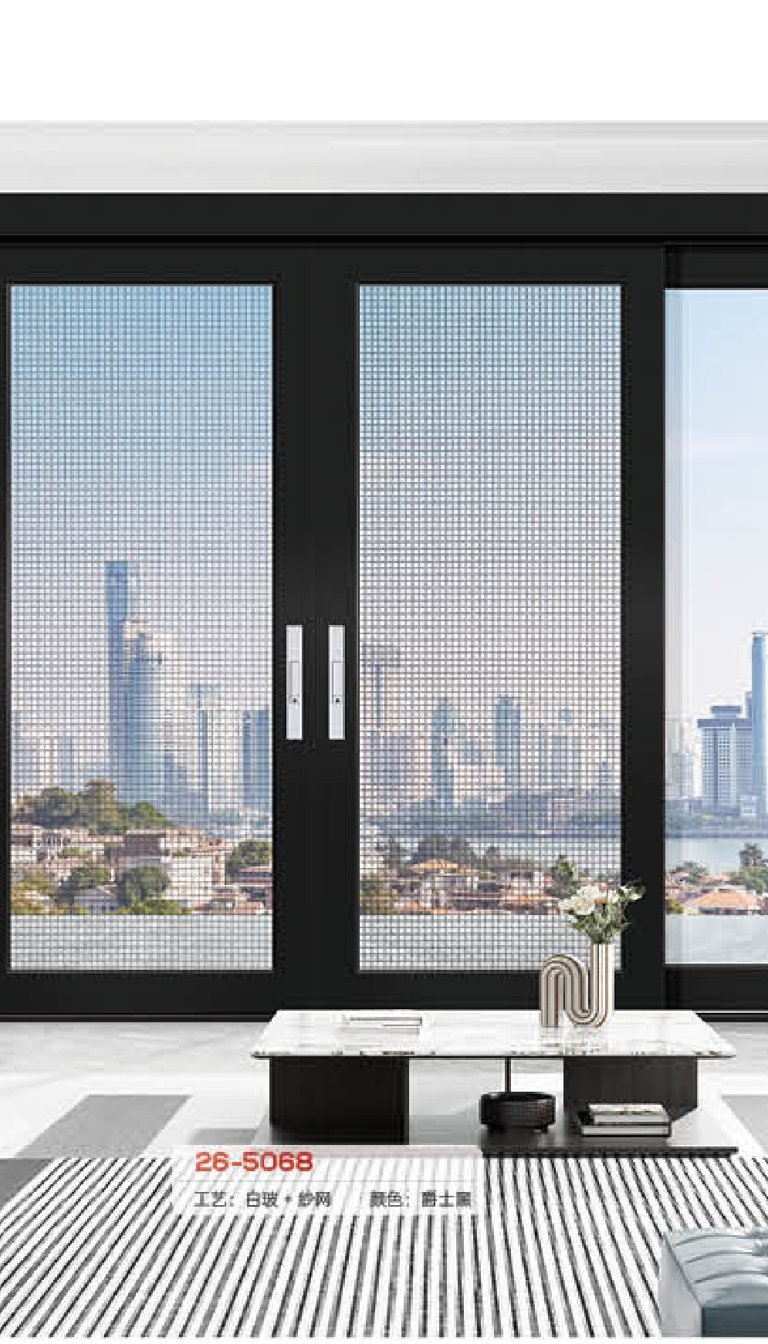

Sensors & control

Sensors & control

App, wall switch, voice assistant and scheduled routines; the rain sensor closes automatically, with battery hold-up.

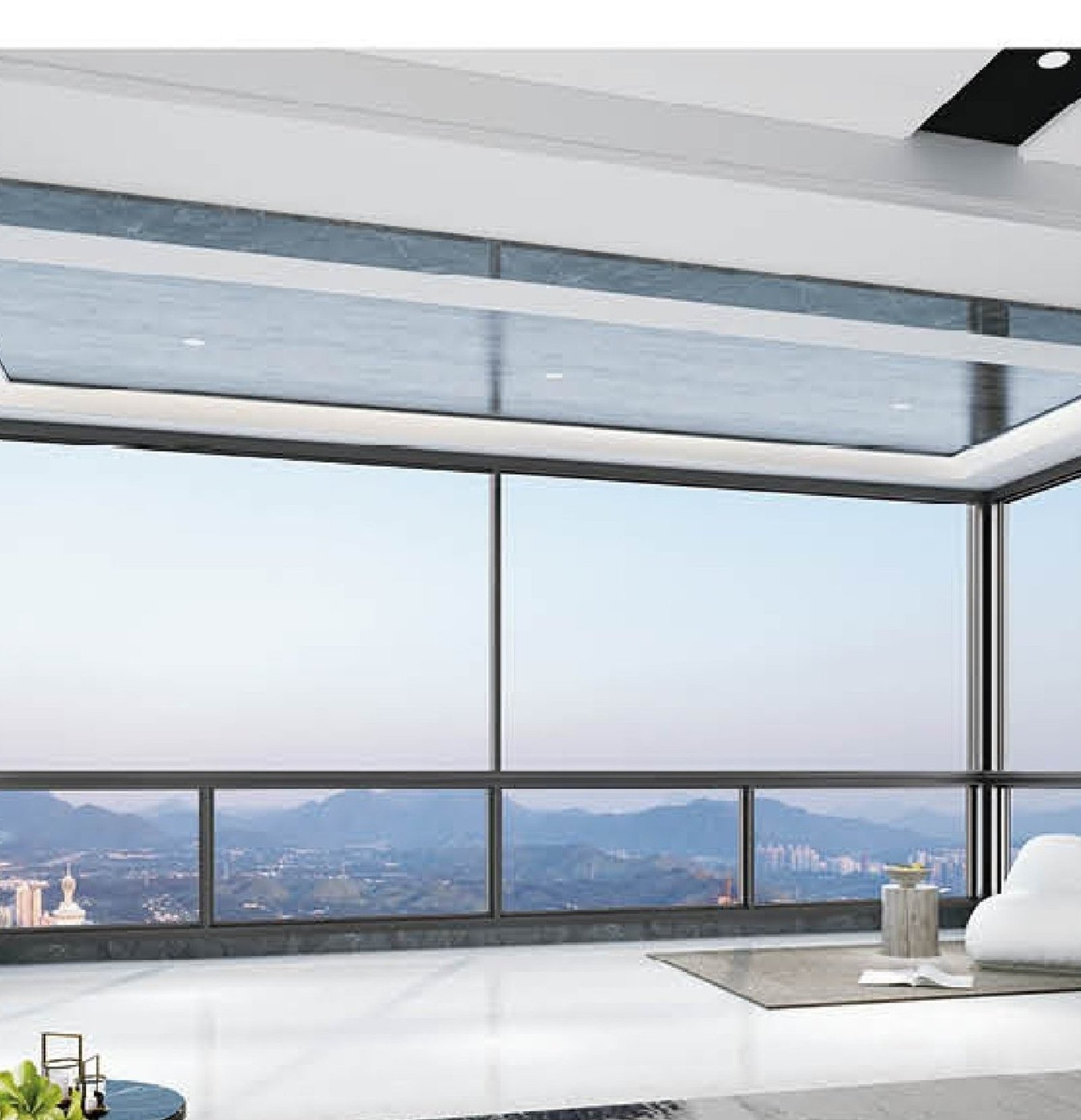

Integration

Integration

An open API feeds the building-management system: open on low CO₂, close on the storm front.

What it's worth to you

Smart Motorized Windows installed on a residential elevation

High or heavy sashes open at one voice command — the assisted-living case with no reach and no lift.

Casement, tilt-turn and sliding leaves from the standard range, motorized at the line — no retrofit conversion.

The 15-year warranty covers the frame, the hardware and the drive line on the same document.

Specify Smart Motorized Windows

Send the project location, the opening sizes and the finish. Drawings, window schedules or a specification can be attached — quoting is done against the drawings, not a price list.

Request a quotation

Fields marked * are required. Drawings, CAD or a window schedule can be attached — up to 5 MB.

Products of interest
Smart Motorized Windows
Attach drawing / schedule (dwg, pdf, xls — max 5 MB)

Guaranteed response within 24 hours, every inquiry. No price lists are shared outside the quotation.

Where it is specified

The sites we build this system for, and what the schedule changes in each one.

Smart villas

The morning routine opens the tilts; the rain sensor handles the afternoon.

Assisted living

High or heavy sashes opened at one voice command — no reach, no lift.

Hospitality rooms

Scheduled opening on housekeeping; closed and locked at turnover.

Greenhouse-adjacent rooms

The chain-drive logic scales to roof and clerestory positions.

Remote-managed buildings

The open API feeds the BMS: open on low CO₂, close on storm front.

Options and finishes

Drive
Integrated servo per sash, quiet < 45 dB operation
Control
App, wall switch, voice assistant, scheduled routines
Safety
Rain sensor auto-close, anti-crush force limit
Power
230 V or 12 V DC options, battery hold-up
Range
Casement, tilt-turn and sliding leaves
Integration
Open API for building management systems

Finish

Anodised Natural

Anodised Silver

Anthracite · RAL 7016

Graphite · RAL 7024

Jet Black · RAL 9005

Traffic White · RAL 9016

Cream · RAL 1015

Champagne · RAL 1019

Ash Natural

Walnut Dark

Bronze

Copper

View all finishes

Design features

Integrated servo per sash, under 45 dB operation

App, wall switch, voice assistant, scheduled routines

Rain sensor auto-close with battery hold-up

Anti-crush force limit on every drive

230 V or 12 V DC power options

Open API for building-management systems

Glass build

Two choices set what the glass does in a SM-60: which coating is on it, and what fills the cavity. The coating sets the solar figure. The gas moves the U-value and leaves the solar figure where it was — which is why the two are decided separately. The values below are published by the glass manufacturers for the build named; they are centre-of-glass figures, and the whole-window value for a configuration is read from the report that covers it.

BuildSHGCU, centre of glassWhere it is chosen
LoE-180, argon0.690.26High solar gain, cold climate
LoE-272, argon0.410.25Balanced, the usual default
LoE-366, argon0.270.24Solar control, west and south glass
LoE-366 with LoE-i89 on #4, argon0.270.20Solar control with the lowest U-value

NFRC centre-of-glass values for a 3/4 in two-pane unit with 3 mm lites and a 13 mm argon cavity. The spacer is the third lever and behaves differently again: it works at the edge of the unit, so it shows in the whole-window value rather than here.

Full glass performance tables, including air against argon and EN 673 values →

Buying & delivery

The commercial terms behind the SM-60 — minimum order, quotation, payment, packing and warranty — are the same on every quotation and sit on the commercial terms for motorised units. Buying to resell, or to fabricate the line yourself? how automated units are supplied covers the supplier view of the same schedule.

Request a quote for this system
Lead time
35–45 days from approved shop drawings. Assembly, glazing and quality control sit inside the quoted lead time, not on top of it.
Standards on this system
The drive is fitted to the casement, tilt-turn and sliding lines, so the frame carries that line standard for the destination market. The control and safety functions, rain auto-close and the anti-crush force limit, are set and function-checked at factory test, and the frame report is issued per project.
Documents and crating
Hardware, glass and drive schedules ship in the shop drawing package, free, within three working days of approved architectural drawings. The motor schedule is part of the shop drawing, not an accessory. Test reports are issued on request.

Documentation

Data sheet

System specifications, model codes and glazing schedule, as a PDF.

Brochure

Full-range presentation for tender packs and client meetings.

CAD sections & BIM families

Section blocks and families for inclusion in project documentation.

Ask for it

Specification clauses

Draft specification text for the drawing package, per system.

Ask for it

RFQ template

The inquiry sheet our quote team needs to answer within 24 hours.

Open the downloads

Confirm before the order is placed

Six items hold up an order on the SM-60 more often than anything else. None of them is decided here; each one has to be settled on the project side before the drawing set is frozen.

Rough opening, not frame size

Confirm the structural opening and the reveal build-up. The frame is ordered to the approved drawing, and the drawing is what the quotation is built from.

The opening is quoted before the render and the closing detail, then the reveal takes back the clearance.

Glass build

Confirm pane thickness, coating, spacer and cavity gas as one line. The tested configuration is the one the report covers.

Glass specified by thickness alone. The coating, spacer and gas move the U-value and the SHGC independently.

Operation and handing

Confirm the opening direction, the handing and the number of leaves, and say which side the handing is read from.

Handing recorded from the inside on one schedule and the outside on another.

Finish

Confirm the RAL or anodising grade, and whether the address needs a marine-grade schedule.

The finish is picked from a screen, and the coastal requirement is raised after production has started.

Hardware

Confirm handle type, locking point count, and whether the market requires key-operated locking.

Hardware assumed standard; the site then needs keyed-alike cylinders that were never on the order.

Documents with the shipment

Confirm which reports and declarations travel with the crate. A certificate is issued per configuration, not per product family.

Test documentation requested after shipment, when the report for that configuration has to be re-issued.

Screens and insect load

Confirm whether screens are part of the order. In the insect-load markets the screen is what lets the window stay open after dark.

Screens treated as an accessory and quoted separately, then the mesh does not match the frame finish.

Who confirms each part

No single party holds the whole decision. The drawing set is the one place they meet.

Buyer or developer

Opens the order: the standard the project has to meet, and the market it ships to.

Designer or architect

Sets the configuration: sizes, operation, finish and the glass build.

Structural engineer

Where the market requires it, sets the wind load the opening is rated to.

Factory

Confirms what can be built to that drawing, and issues the report for the configuration.

Everything else on the commercial side — minimum order, quotation, payment, packing and warranty — is the same on every order and sits on the commercial terms page.

Compare with the other window systems

Every system in this category on one table — the platform it shares, the opening it carries and the glazing it takes. Figures come from each system record, not retyped here.

11 window systems in the catalogue
CodeSystemPlatformGlazing options
PF-35Panoramic Fixed GlazingLaminated or low-E IGU
TT-75Tilt & Turn Windows6–24 mm single / IGU
IR-80Impact-Rated WindowsLaminated IGU, 0.38 SGP
WA-70Wood-Aluminium Windows47 dB laminated IGU
CW-60Casement Windows6–24 mm single or IGU
AC-90Acoustic Windows47 dB laminated IGU
SM-60Smart Motorized Windows — this system6–24 mm single or IGU
SW-110Six-Track Sliding Windows5+12A+5 IGU
AW-55Crank Awning WindowsTempered single pane
BP-60Burglar-Proof WindowsSingle or IGU, laminated line per SANS 1263-1
LW-70Louvre WindowsTempered single in the fixed panels

Frequently asked

All sashes remain manually operable; the drive disengages and the standard handle works as usual.

Other systems on the same platform

All systems

Specify SM-60 for your project

Request a quote

The Motorized opening configuration is quoted unit by unit, within 24 hours.

Prefer to talk it through?

Send a drawing or a one-line brief on WhatsApp.

+86 177 0868 3991 — quotation within 24 hours, shop drawings free in 3 working days.
