Window flashing: the detail that decides the warranty

A window is rated in a chamber. AAMA/WDMA/CSA 101/I.S.2/A440, the North American fenestration standard, runs the water test at 15 percent of the design pressure for the R, LC and CW classes and 20 percent for AW, sprayed against a specimen clamped into a test wall. The specimen passes or fails as a unit.

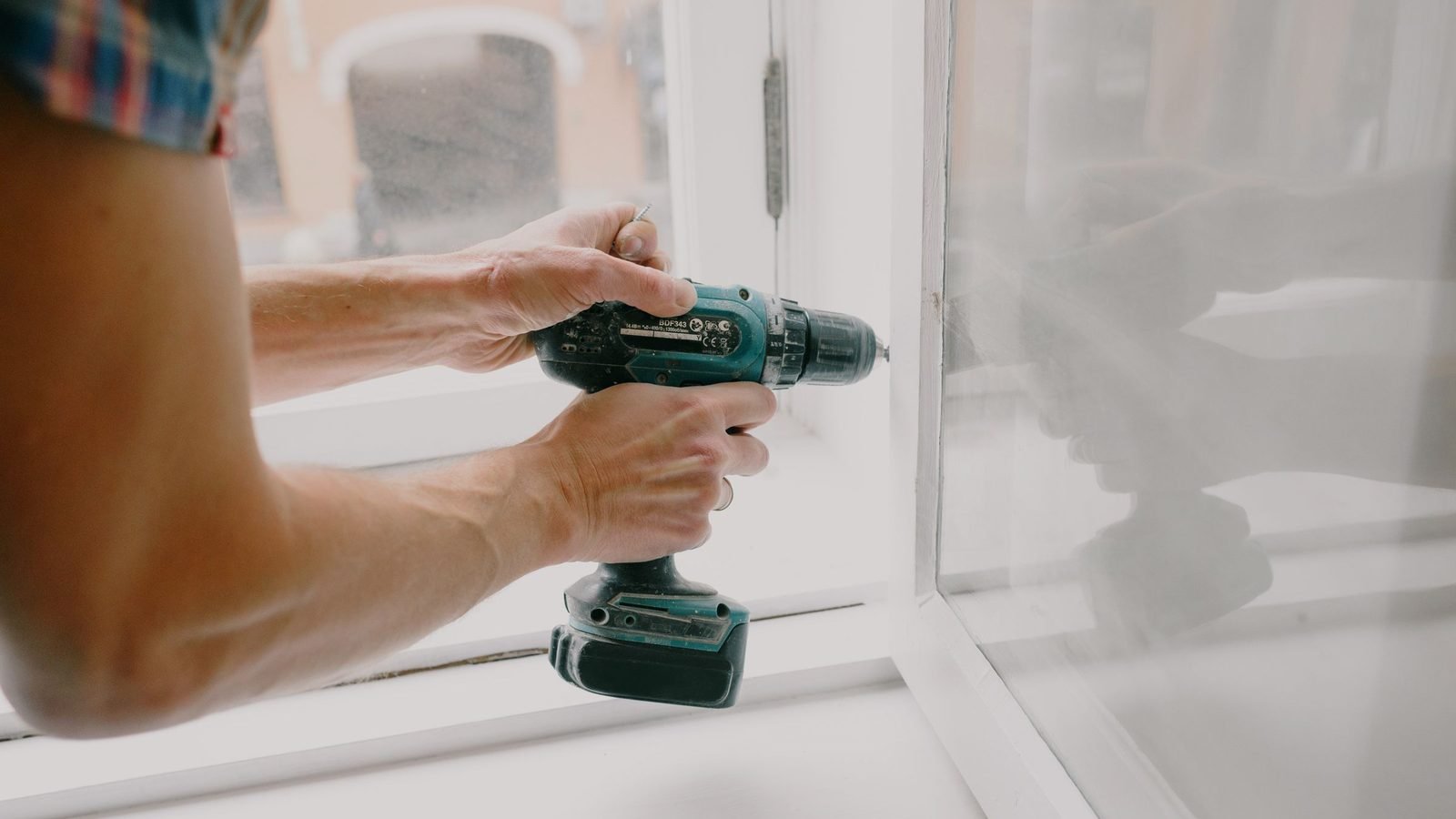

On site the frame is levelled on packers, fixed through the flange or the jamb, and the gap between frame and structure is closed with membrane, flashing and sealant. That work happens after the unit was tested, in a different assembly, in weather no laboratory reproduces. The split is worth stating on a project: the factory answers for the unit, the site answers for the water line.

Warranty conversations usually start here. A damp patch on an interior reveal is read as a window fault, and the cause is more often a lap running the wrong way at the sill or a sealant bead bridging a drainage path. A flashing sequence that is drawn, specified and photographed before the cladding closes is the cheapest way to keep that conversation short.

ASTM E2112-23, the standard practice for installing exterior windows, doors and skylights, sorts an installation into one of two families. A barrier system seals the opening so water never reaches the frame. A membrane and drainage system accepts that some water will pass the cladding and gives it a path back out.

A face-sealed barrier detail depends on every bead of sealant surviving as long as the building. That is a reasonable answer for a sheltered opening in a dry climate, and the wrong answer where wind drives rain horizontally into the wall. A drained detail relies on shingled layers, a sill pan and open weeps, and it keeps working after one bead fails, because the water behind it still has a route out.

The choice belongs on the drawing. It changes the clearance the opening needs, the products ordered, the sequence on site and the position taken on the whole opening afterwards. Settling it after the frames arrive is not a decision, it is a repair.

• Sill first. The pan goes in before the frame, and its membrane turns up both jambs so anything arriving from above already sits inside it.
• Jamb flashing next, lapped over the sill upturn. A jamb tucked in behind the sill turns the corner into a pocket.
• Head flashing last of the three, lapped over the jamb flashing and over the flange at the top of the unit.
• The water-resistive barrier above the opening laps over the head flashing; the barrier below the opening runs under the sill pan.
• Sealant at the ends of the head flashing and at the outside corners, with the bottom edge left able to drain.

Every other part of the window flashing can be revisited. The pan cannot. Once the frame is in, the pan sits behind the frame and under the reveal, and reaching it means taking the unit out. It is the one step worth a photograph before the frame lands.

A pan has three jobs. It slopes outward so water leaves. It turns up at the back and at both ends so water inside it cannot reach the interior. It runs past the frame line at each side so the jamb flashing has something to land on. A flat strip of tape laid across the sill is not a pan, and a strip dressed up the reveal without end dams is not one either.

Two more questions are answered under it. Where does the weep path discharge, and what is the sill height above finished external grade? Weeps that open into a solid reveal, or a sill set below the paving line, turn a drained detail into a flooded one. Both figures belong on the opening schedule and are confirmed after the external works, not assumed at order.

On a full-height or lift-slide opening the pan carries more water, because everything arriving at that sill is the water from the whole glazed elevation above it. That is the argument for the pan being a drawn detail instead of a roll of tape.

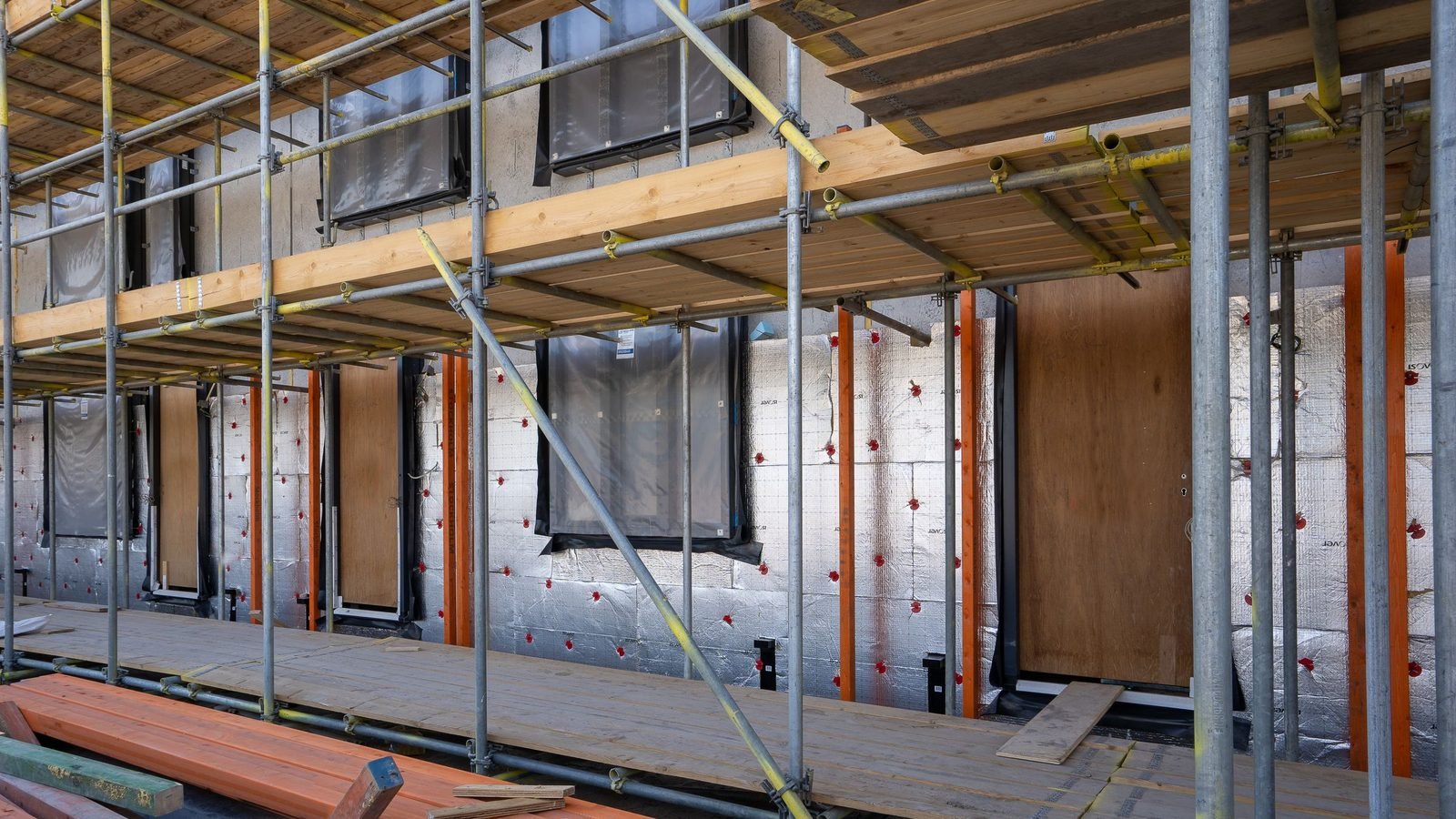

The jambs repeat the sill logic vertically. The membrane runs from the pan upturn to the head, lapped onto the pan at the bottom, and it is fixed to the sheathing instead of the frame, so the frame can move thermally without tearing the line.

The head is where window flashing details are most often simplified. A head flashing is a formed profile with an upturn at the back, a slope forward and a drip at the front that throws water clear of the frame face. Sealing the bottom edge of that profile to the wall removes the drip and traps water behind it.

Two smaller parts finish the head. End dams stop water running sideways off the flashing and behind the cladding. A back dam, turned up against the sheathing, keeps driven rain from being pushed over the top of the profile. Both are formed metal, specified with the flashing, and not improvised from sealant on site.

The drip matters most on a masonry or rendered facade, where rain clings to a rough face and follows the return into the opening. A drip edge gives that water a line to break on.

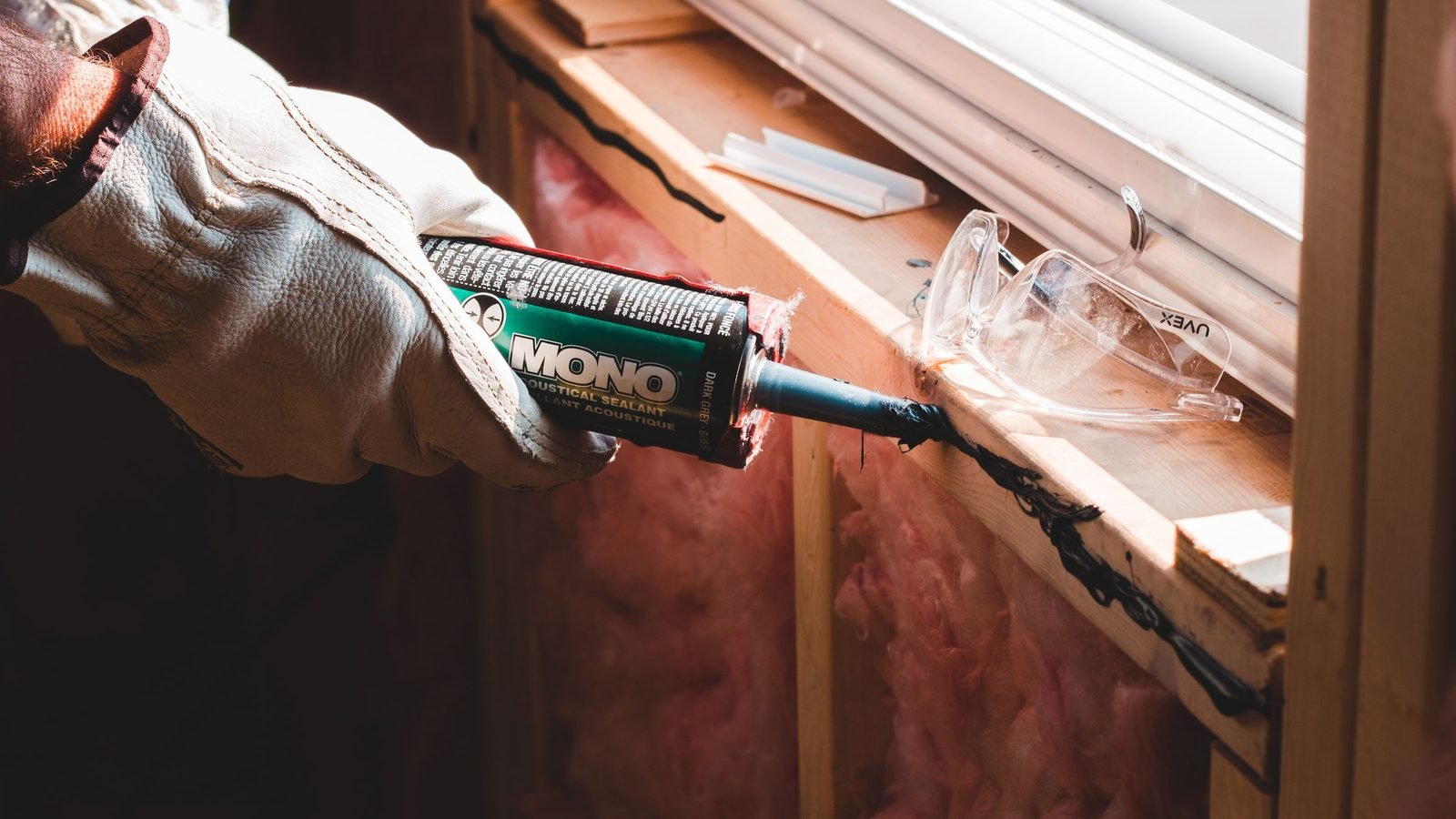

Sealant closes the perimeter. It is the air line and the last defence against driven rain, and it is not the primary water line: a detail that leans on sealant to hold water out has no route for the water that gets past it.

ASTM C1193-25 sets out how a joint like that is built. Surfaces are cleaned and primed where the manufacturer says so. A backer rod or bond breaker goes in to control depth. The bead is tooled so it contacts both faces of the joint.

The backer rod is doing one specific job: stopping the sealant bonding to three faces at once. A bead stuck to the frame, to the wall and to the back of the joint has nowhere to stretch when the joint moves, so it tears down its own centre line. Depth control sets the shape as well, because a wide shallow bead with a concave profile moves with the joint instead of fighting it.

Joint width and depth come from the detail, not from whatever the nozzle leaves behind. The sealant also has to match the substrates: an aluminium frame, a timber reveal and a cement render do not take the same product. The schedule names the sealant by specification, not by colour.

ASTM E2112-23 covers the installation process from pre-installation through post-installation and requires continuity of the water-resistive barrier. It also states its own limit: where the manufacturer's installation instructions conflict with the practice, the manufacturer's instructions prevail.

AAMA 2400-21 addresses mounting-flange windows in wood-frame construction using exterior barrier methods, and it is recommended for installations at low risk of water intrusion. For high wind and water exposure the referenced route is the drainage method, FMA/AAMA 100-12, which covers flanged windows in wood-frame new construction and is scoped to buildings not more than three stories above grade.

The materials carry their own specifications. AAMA 711-22 covers self-adhering flashing, AAMA 712-23 mechanically attached flexible flashing, and AAMA 714-22 liquid-applied flashing used to create a water-resistive seal around exterior wall openings. ASTM C1193-25 covers the sealant joint itself.

What none of them does is approve an installation. E2112 is a practice, not a certificate: it sets a sequence and states that conditions vary and that additional precautions may be needed. The project still chooses the system, the products and the sequence, and somebody still has to look at the laps before the cladding closes over them.

• The system: barrier, or membrane and drainage, stated once for the whole project.
• The lap sequence, drawn at the sill, jamb and head, not described in words.
• The flashing products by specification, with the membrane each one bonds to.
• The sealant: specification, joint width and depth, and the substrates it has to bond to.
• The sill height above finished external grade, with the step that confirms it on site.
• The inspection points, named, so the laps are looked at before the cladding goes on.
