Tilt & Turn Windows
TT-75 — Tilt-turn with vent-height grip · multi-point locking

TT-75
One handle, two positions — storm-tight turning, micro-vent tilting.
Tilt-turn with vent-height grip · multi-point locking
- 32
- 14
- 30–40 days
- 15 yr
32
14
30–40 days
15 yr
What the section drawing decides
High-end custom is decided in the section drawing, not the brochure. These four layers are held to specification on every TT-75 unit we ship.
Four depths, 1.6-2.0 mm wall
6-12 locking points
Triple IGU to 5+18A+5+15A+5
Tested to EN 14351-1 and EN 12211
Technical detail
The section, the hardware and the fixings — photographed, not rendered. This is the level of detail your drawing office specifies against and your site crew installs to, on every unit that leaves the line.
Profile cross-section
Four depths are offered — 70, 80, 105 and 115 mm at 1.6–2.0 mm wall — because the section follows the reveal condition, not the opening size. A single sash runs to 1,400 × 2,100 mm.
70 / 80 / 105 / 115 mm, 1.6–2.0 mm
Up to 1,400 × 2,100 mm
1.6–2.0 mm
Stainless or fibreglass in sash






Hardware
Roto, HOPPE and HOPO multi-point transmissions are all used on this line, with 6–12 locking points and an anti-lift cam in the gear. The handle takes a key-operated variant where the opening is at ground level.
Roto / HOPPE / HOPO
6–12 points, anti-lift cam
Vent-height, key option
Tilt micro-vent + turn








Installation
Factory-assembled and pre-glazed, so the tolerance work is done under a roof. On site the build is a three-zone detail — air, insulation, weatherproofing — and every crate arrives with the install guide and the sealant schedule for that market.
Factory-assembled
3-zone: air / insulation / water
Per-crate install sheet
Scheduled per market






The system in short

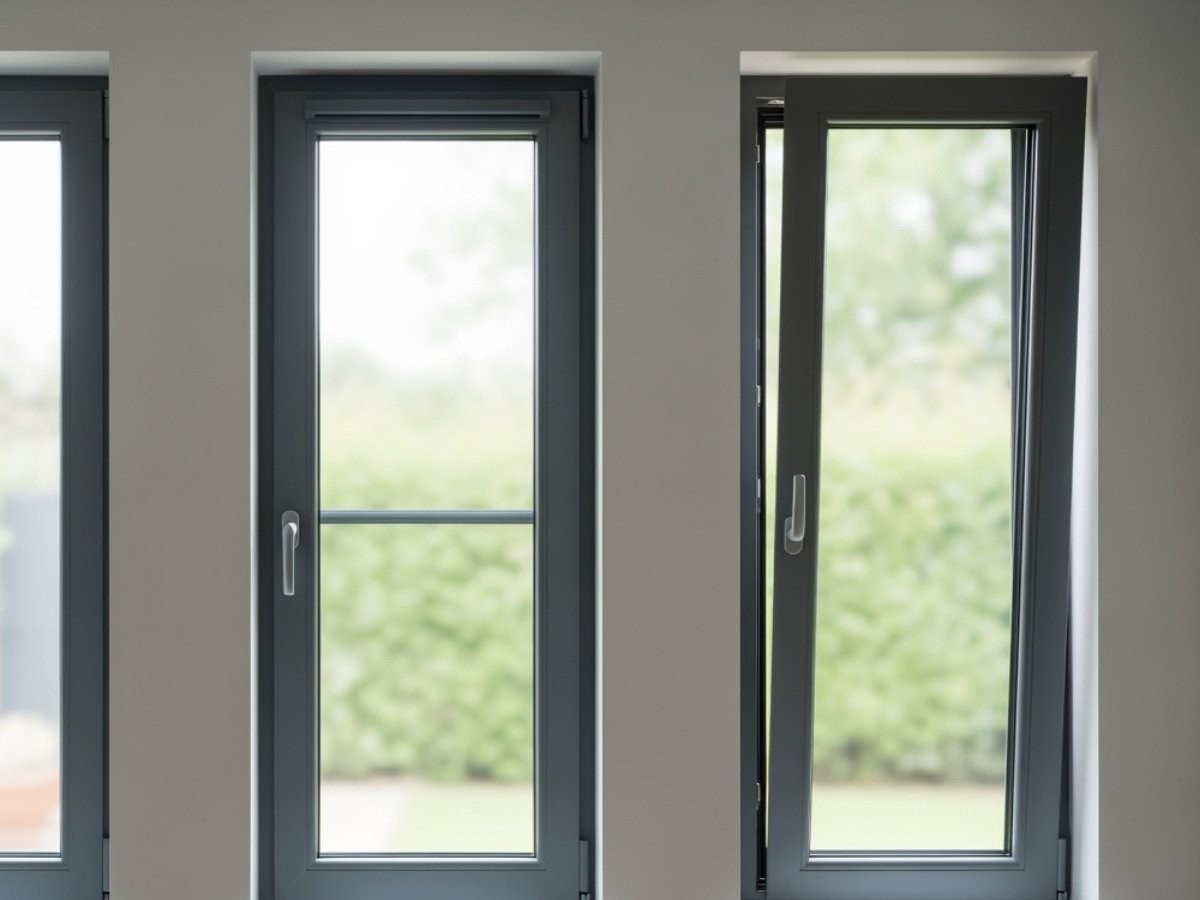

A tilt & turn window is a single sash that both tilts inward at vent height for ventilation and turns fully for cleaning and access. TT-75 pairs that dual opening with 6–12 point multi-point locking, key-operated handle options and flush insect screens, making it the standard specification for European-style export projects.
The European workhorse, re-engineered for export projects. The sash turns inward for cleaning and security, or tilts at vent height for controlled airflow in rain. Multi-point locking engages at 6–12 points across the frame.


Models and sizes
Every TT-75 ships as one of the configurations below — specify by model code in your window schedule and it quotes line by line.
TT-75 TILT
- Single sash to 1,400 × 2,100 mm
- 6–24 mm single / IGU
TT-75 TURN
- Full turn, sash to 1,400 × 2,100 mm
- Double IGU option
TT-75 2-OPEN
- Twin sash, both opening
- Double IGU
TT-75 FIXED+OPEN
- Fixed top, tilting bottom
- Triple IGU option
TT-75 SCREEN
- Integrated flush screen frame
- Stainless mesh

Specifications
- 70 / 80 / 105 / 115 mm thermal-break, 1.6–2.0 mm wall
- Tilt (micro-vent) + turn, single sash up to 1,400 × 2,100 mm
- Multi-point, 6–12 points, anti-lift cam
- Vent-height grip option, key-operated for ground floor
- Roto, HOPPE or HOPO multi-point, tilt-turn transmission
- 5–16 mm panes, single, double or triple IGU (5+18A+5+15A+5 max)
- Integrated stainless or fibreglass insect screen
- Anodised, powder-coated, RAL, wood-grain film
- Tested to EN 14351-1, EN 12211; AS 2047 glazing option

Material & craft
The layers held to specification on every TT-75 unit — the section drawing above, written out.

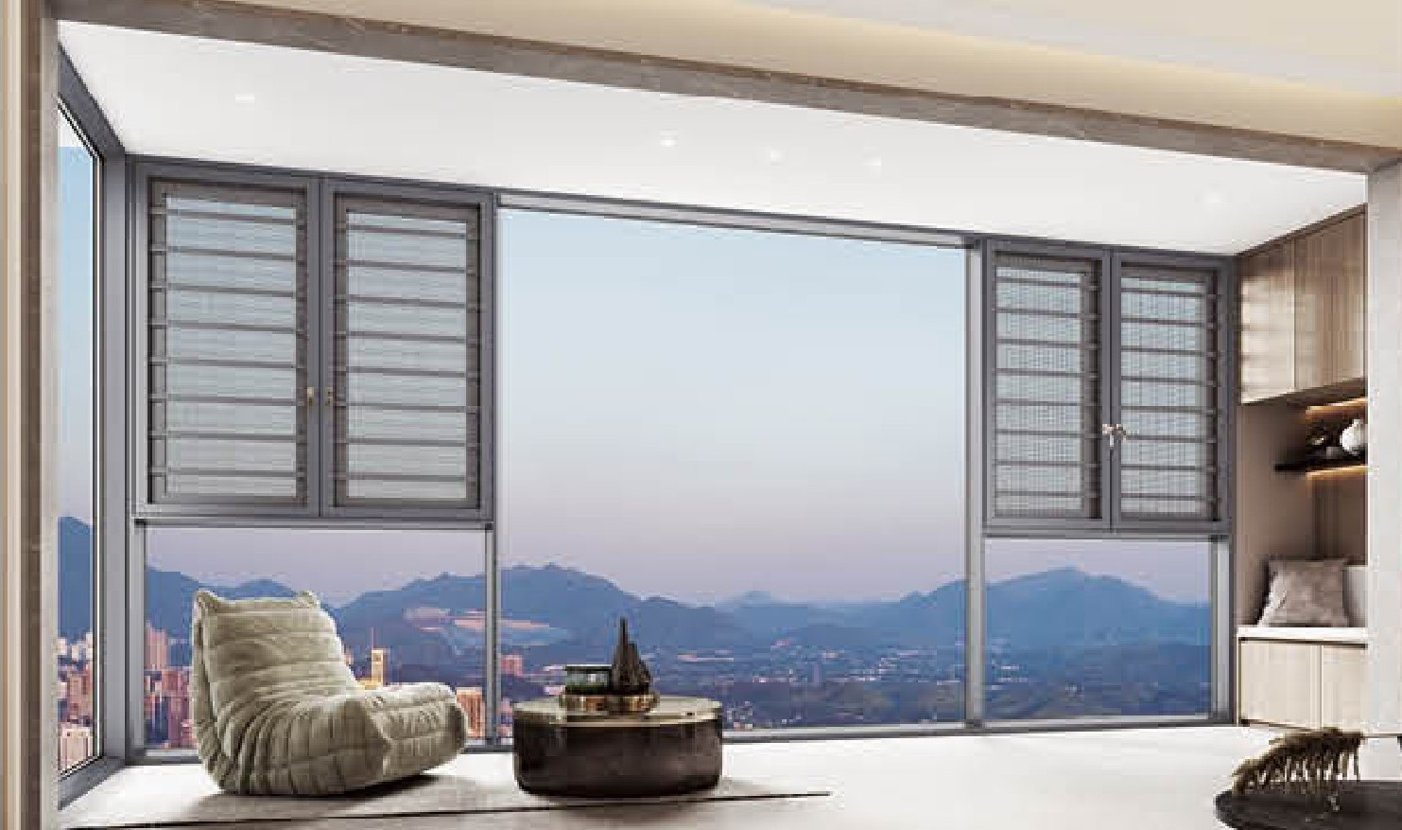

Dual-action sash
One sash tilts inward at vent height and turns fully for access, on the 75 mm platform with the anti-lift cam fitted on every sash.

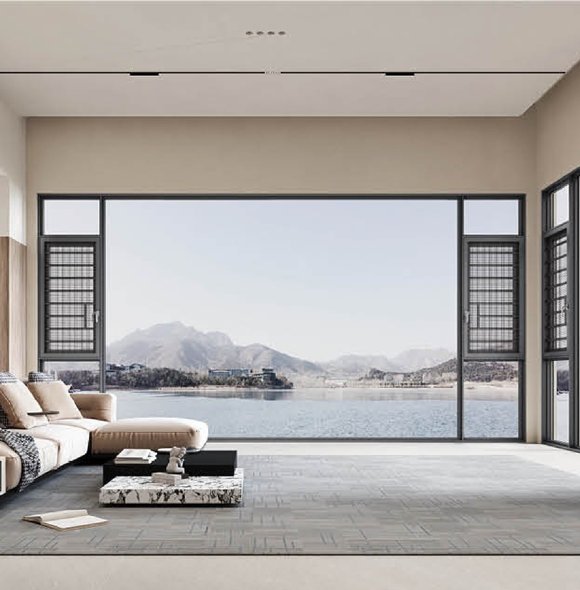

Locking schedule
6–12 point multi-point locking compresses the sash all round; key-operated handle options on ground-floor positions, and the turn position is the security position.

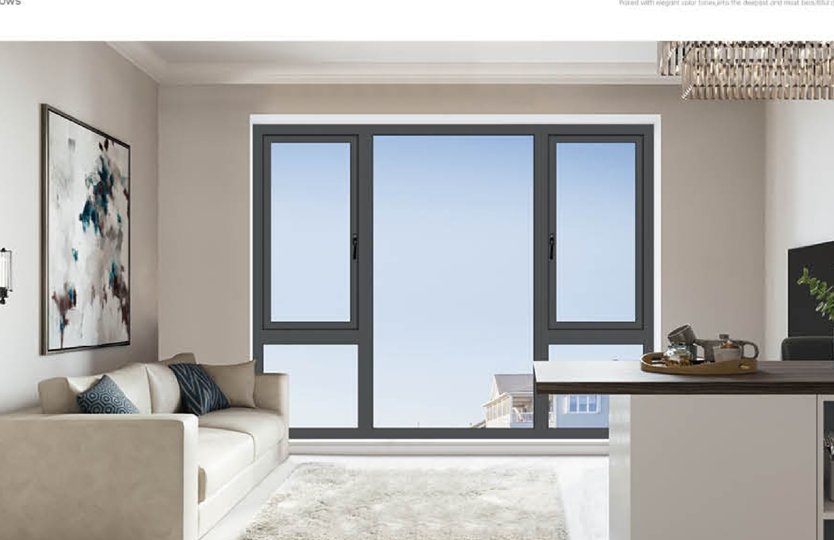

Glazing & screen
6–24 mm single, IGU or the double-IGU alpine build; the TT-75 SCREEN variant carries a flush stainless mesh frame inside the sash line.
What it's worth to you

Sashes to 1,400 × 2,100 mm, factory-assembled with the hardware fitted and function-checked before crating.
Class 4 airtightness on the same frame — the tilt position ventilates, the locked position seals.
The action your client already knows from EN markets: training, spares and the next replacement all follow one platform.
Specify Tilt & Turn Windows
Send the project location, the opening sizes and the finish. Drawings, window schedules or a specification can be attached — quoting is done against the drawings, not a price list.
Where it is specified
The sites we build this system for, and what the schedule changes in each one.
Ground-floor residential
Key-operated handle as standard; the turn position is the security position.
Urban infill and apartments
Tilt ventilates at waist height without the full opening.
Storm-exposed elevations
Multi-point locking compresses the sash all round, not at one stile.
Mixed façade rhythm
Same 75 mm platform as the fixed and sliding ranges.
European-spec export projects
The action your client already knows from EN markets.
Options and finishes
Finish
Anodised Natural
Anodised Silver
Anthracite · RAL 7016
Graphite · RAL 7024
Jet Black · RAL 9005
Traffic White · RAL 9016
Cream · RAL 1015
Champagne · RAL 1019
Ash Natural
Walnut Dark
Bronze
Copper
Design features
Tilt + turn in one sash, multi-point locking
Vent-height integrated grip option
Key-operated handles for ground floor
Flush stainless insect screen frame
Anti-lift cam on every sash
Double-IGU compatible for alpine specifications
Glass build
Two choices set what the glass does in a TT-75: which coating is on it, and what fills the cavity. The coating sets the solar figure. The gas moves the U-value and leaves the solar figure where it was — which is why the two are decided separately. The values below are published by the glass manufacturers for the build named; they are centre-of-glass figures, and the whole-window value for a configuration is read from the report that covers it.
| Build | SHGC | U, centre of glass | Where it is chosen |
|---|---|---|---|
| LoE-180, argon | 0.69 | 0.26 | High solar gain, cold climate |
| LoE-272, argon | 0.41 | 0.25 | Balanced, the usual default |
| LoE-366, argon | 0.27 | 0.24 | Solar control, west and south glass |
| LoE-366 with LoE-i89 on #4, argon | 0.27 | 0.20 | Solar control with the lowest U-value |
NFRC centre-of-glass values for a 3/4 in two-pane unit with 3 mm lites and a 13 mm argon cavity. The spacer is the third lever and behaves differently again: it works at the edge of the unit, so it shows in the whole-window value rather than here.
Full glass performance tables, including air against argon and EN 673 values →
Buying & delivery
The commercial terms behind the TT-75 — minimum order, quotation, payment, packing and warranty — are the same on every quotation and sit on the commercial terms for a tilt-turn schedule. Buying to resell, or to fabricate the line yourself? MOQ for a single wall of this system covers the supplier view of the same schedule.
Request a quote for this system- 30–40 days from approved shop drawings. Assembly, glazing and quality control sit inside the quoted lead time, not on top of it.
- Tested to EN 14351-1 and EN 12211, with an AS 2047 glazing option. The assembly answers SANS 613 for wind, water and air, and the energy line sits in SANS 10400-XA:2021 Edition 2 on the same configured unit. Where the brief reads intrusion rather than impact, the ground-floor unit is scheduled to SANS 1263-2, the burglar-resistant part.Source documents: EN 14351-1·EN 12211·AS 2047:2014·SANS 613·SANS 10400-XA·SANS 1263-2
- Hardware and glass schedules ship in the shop drawing package, free, within three working days of approved architectural drawings. Crated corner-protected with desiccant; a loading report per bay and a packing list per crate. Test reports are issued on request.
Documentation
Data sheet
Brochure
CAD sections & BIM families
Specification clauses
RFQ template
Confirm before the order is placed
Six items hold up an order on the TT-75 more often than anything else. None of them is decided here; each one has to be settled on the project side before the drawing set is frozen.
Rough opening, not frame size
Confirm the structural opening and the reveal build-up. The frame is ordered to the approved drawing, and the drawing is what the quotation is built from.
The opening is quoted before the render and the closing detail, then the reveal takes back the clearance.
Glass build
Confirm pane thickness, coating, spacer and cavity gas as one line. The tested configuration is the one the report covers.
Glass specified by thickness alone. The coating, spacer and gas move the U-value and the SHGC independently.
Operation and handing
Confirm the opening direction, the handing and the number of leaves, and say which side the handing is read from.
Handing recorded from the inside on one schedule and the outside on another.
Finish
Confirm the RAL or anodising grade, and whether the address needs a marine-grade schedule.
The finish is picked from a screen, and the coastal requirement is raised after production has started.
Hardware
Confirm handle type, locking point count, and whether the market requires key-operated locking.
Hardware assumed standard; the site then needs keyed-alike cylinders that were never on the order.
Documents with the shipment
Confirm which reports and declarations travel with the crate. A certificate is issued per configuration, not per product family.
Test documentation requested after shipment, when the report for that configuration has to be re-issued.
Screens and insect load
Confirm whether screens are part of the order. In the insect-load markets the screen is what lets the window stay open after dark.
Screens treated as an accessory and quoted separately, then the mesh does not match the frame finish.
Who confirms each part
No single party holds the whole decision. The drawing set is the one place they meet.
Buyer or developer
Opens the order: the standard the project has to meet, and the market it ships to.
Designer or architect
Sets the configuration: sizes, operation, finish and the glass build.
Structural engineer
Where the market requires it, sets the wind load the opening is rated to.
Factory
Confirms what can be built to that drawing, and issues the report for the configuration.
Everything else on the commercial side — minimum order, quotation, payment, packing and warranty — is the same on every order and sits on the commercial terms page.
Compare with the other window systems
Every system in this category on one table — the platform it shares, the opening it carries and the glazing it takes. Figures come from each system record, not retyped here.
| Code | System | Platform | Glazing options |
|---|---|---|---|
| PF-35 | Panoramic Fixed Glazing | Laminated or low-E IGU | |
| TT-75 | Tilt & Turn Windows | 6–24 mm single / IGU | |
| IR-80 | Impact-Rated Windows | Laminated IGU, 0.38 SGP | |
| WA-70 | Wood-Aluminium Windows | 47 dB laminated IGU | |
| CW-60 | Casement Windows | 6–24 mm single or IGU | |
| AC-90 | Acoustic Windows | 47 dB laminated IGU | |
| SM-60 | Smart Motorized Windows | 6–24 mm single or IGU | |
| SW-110 | Six-Track Sliding Windows | 5+12A+5 IGU | |
| AW-55 | Crank Awning Windows | Tempered single pane | |
| BP-60 | Burglar-Proof Windows | Single or IGU, laminated line per SANS 1263-1 | |
| LW-70 | Louvre Windows | Tempered single in the fixed panels |
Read before you specify
- Tilt-turn vs casement — which to specify where
- Tilt-turn outside Europe — NAFS, IRC egress and AS 2047 wind classes
- The cold-climate U-factor a tilt-turn has to reach in Canada
- EN 14351 and the DoP on a tilt-turn — what the CE mark declares
- Aluminium vs vinyl on a tilt-turn: the material call behind the hardware
- AAMA or AS 2047 on a tilt-turn — the two rating routes compared
- Thermal-break vs non-thermal on a tilt-turn — what the frame decides
- Impact-rated vs hurricane tilt-turn: the listing difference

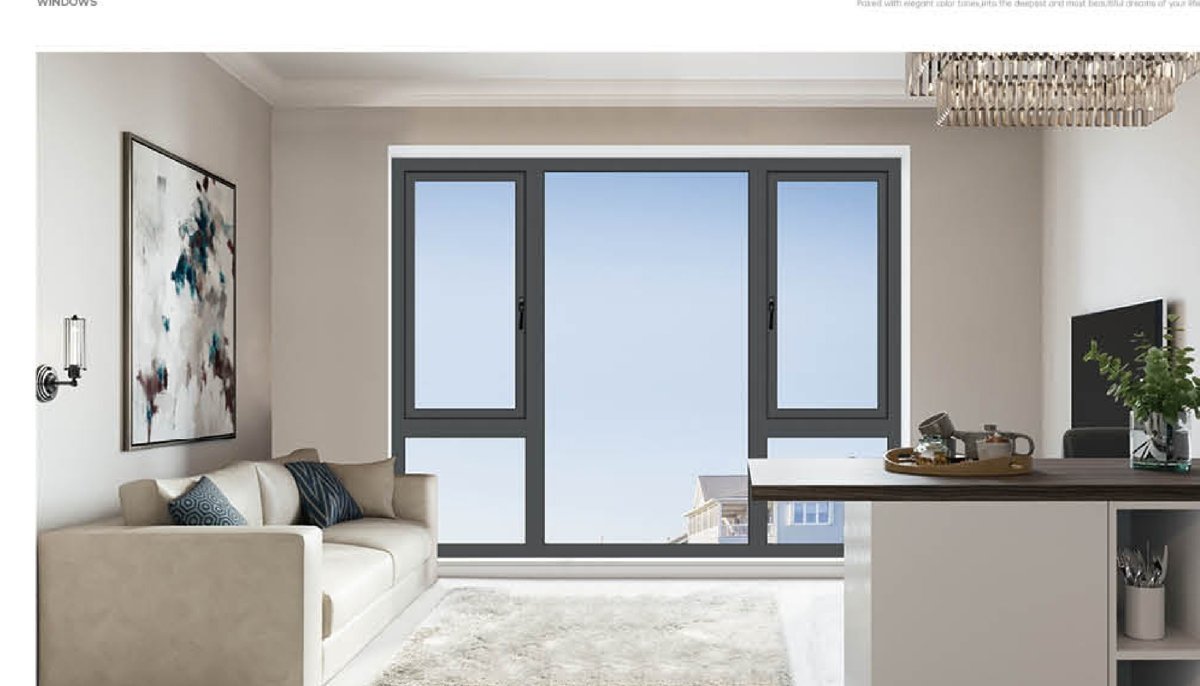

Tilt & Turn Windows installed

Frequently asked
Tilt position ventilates at waist height even in heavy rain, and the turn position opens the full sash width for cleaning. Both in one sash.
